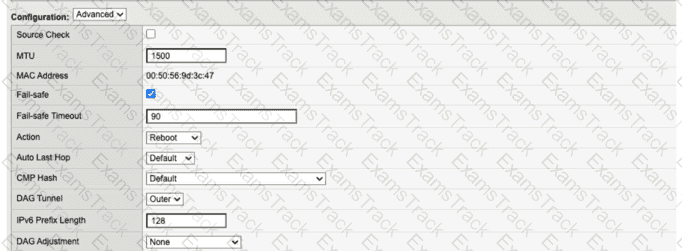

The exhibit shows the advanced configuration of a VLAN where the Fail-safe option is checked. VLAN Fail-safe is a high-availability feature used to monitor network connectivity on a specific VLAN. When enabled, the BIG-IP system monitors the VLAN for network traffic. If the system does not detect any " useful " traffic on the VLAN within the specified Fail-safe Timeout (which is 90 seconds in the exhibit), it attempts to generate traffic by pinging the default gateway or other devices. If it still detects no traffic, the BIG-IP concludes that the VLAN is unreachable or the network interface has failed, and it triggers a " Fail-safe Action " —in this case, " Reboot " or a failover to the peer device in the HA group.

Because the administrator has just created a new VLAN that " does NOT yet have any traffic, " the Fail-safe mechanism triggers immediately after the 90-second timeout period. Since no devices are yet communicating on this VLAN, the BIG-IP incorrectly assumes there is a hardware or cabling failure and forces a failover to ensure the standby device (which might have better connectivity) takes over. To prevent this unwanted failover, the administrator should uncheck the Fail-safe box for that specific VLAN until the VLAN is fully populated with active nodes and regular traffic. Once the application is live and traffic is flowing, Fail-safe can be re-enabled to provide an additional layer of redundancy. Auto Last Hop (Option A) and Source Check (Option B) are routing and security features that do not trigger HA failover events.

Connection rate limits restrict how many new connections are accepted per second, protecting application resources.

Slow Ramp Time prevents new members from being overwhelmed immediately after activation.

Standard BIG-IP administration dictates that hardware-level physical attributes are managed within the Network section of the configuration. When a network switch and a BIG-IP fail to successfully negotiate speed and duplex settings (Auto-Negotiation), it can result in CRC errors, late collisions, or a total lack of link. To resolve this manually, the administrator must navigate to the Configuration Utility (GUI) and go to Network > Interfaces.

Within the Interfaces list, the administrator can select the specific physical port (e.g., 1.1 or 1.2) and modify its properties. By default, the media speed is set to " Auto, " but the drop-down menu allows for manual selection of specific speeds (e.g., 100Mb/s, 1Gb/s, 10Gb/s) and duplex settings (Full or Half). While these changes can also be made via the TMOS Shell (TMSH) (Option B) using the modify net interface command, the question asks for the standard location, which in most administrative contexts refers to the primary GUI path. System > Configuration (Option D) is used for global device settings like NTP, DNS, and licensing, not for interface-specific physical layer parameters. The Front Console (Option A), referring to the LCD panel on physical appliances, is primarily used for initial management IP setup and viewing system alerts, but does not provide the granular interface configuration required for media speed adjustments.

The Local Traffic > Network Map provides a single consolidated view within the BIG-IP Configuration Utility that displays the full relationship hierarchy of all application delivery objects simultaneously. This includes Virtual Servers, their associated Pools, individual Pool Members, applied iRules, profiles, and the health status of each object — all rendered in a single topological screen.

This view is specifically designed for administrators and users who need rapid situational awareness across the data plane without navigating multiple menu screens. Each object is colour-coded to reflect its current availability state (green = available, red = unavailable, yellow = degraded).

The alternative options do not satisfy all requirements:

Local Traffic > Monitors only displays health monitor configurations, not virtual server or pool member relationships.

Statistics provides performance counters and throughput data, not object relationship mapping.

Local Traffic > Virtual Servers lists virtual server configurations individually but does not provide a unified topology view inclusive of pool members and iRules in a single screen.

The Network Map is the authoritative single-pane-of-glass tool for application object visibility on BIG-IP.

This scenario requires unequal load distribution based on server capacity. The newer servers must receive more connections than the older ones, while still dynamically accounting for active connection counts.

According to BIG-IP Administration: Data Plane Configuration documentation:

Weighted Least Connections (member) combines:

Connection awareness (least connections)

Administrator-defined weights (ratios) to reflect server capacity

Pool members with higher weights receive proportionally more new connections than members with lower weights, even when using the same load balancing algorithm.

Why B is correct:

Allows assigning higher weights to newer servers and lower weights to older servers

Ensures smarter traffic distribution based on both capacity and real-time load

Why the other options are incorrect:

A. Global AvailabilityUsed for disaster recovery and site failover, not intra-pool load distribution.

C. Round RobinDistributes connections evenly without considering server capacity.

D. Least Connections (member)Balances only by current connection count and does not account for differences in server performance or capacity.

Correct Resolution:

Use Weighted Least Connections (member) and assign higher weights to newer servers so they receive more traffic while protecting older servers from overload.

By default, BIG-IP load balancing algorithms (such as Round Robin) distribute connections evenly across all available pool members. However, persistence profiles override normal load balancing decisions by forcing subsequent connections from a client to be sent to the same pool member.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Persistence creates a client-to-server mapping that is honored before load balancing algorithms are applied.

When persistence is enabled, BIG-IP may repeatedly select the same pool member even if others are available.

This directly alters load balancing behavior.

Why the other options are incorrect:

A. Adding a OneConnect profileOneConnect optimizes server-side TCP connections but does not change which pool member is selected.

B. Enabling SNAT automapSNAT affects source address translation, not pool member selection.

C. Enabling a fallback host in the HTTP profileA fallback host is only used when no pool members are available.

Correct Resolution:

Adding a persistence profile alters load balancing behavior by maintaining client affinity to a specific pool member.

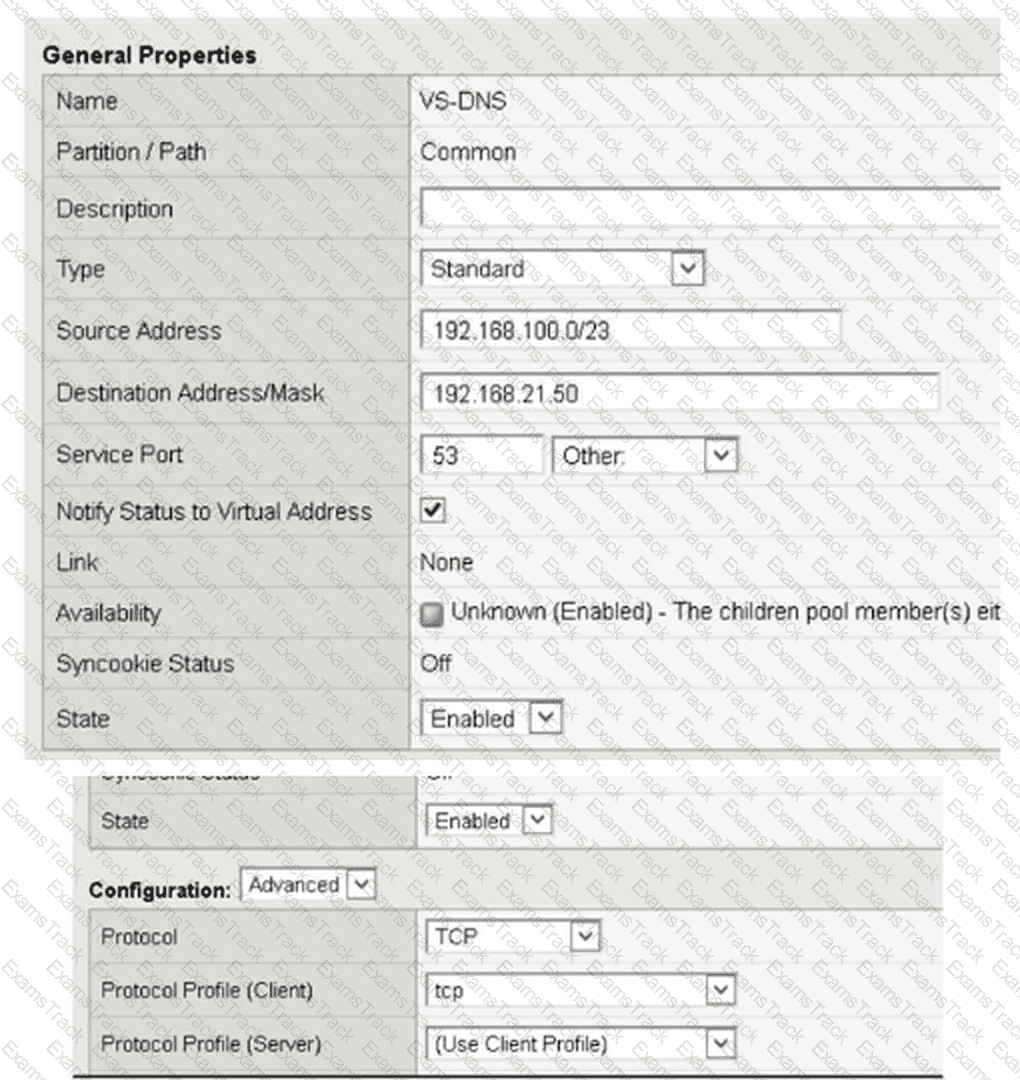

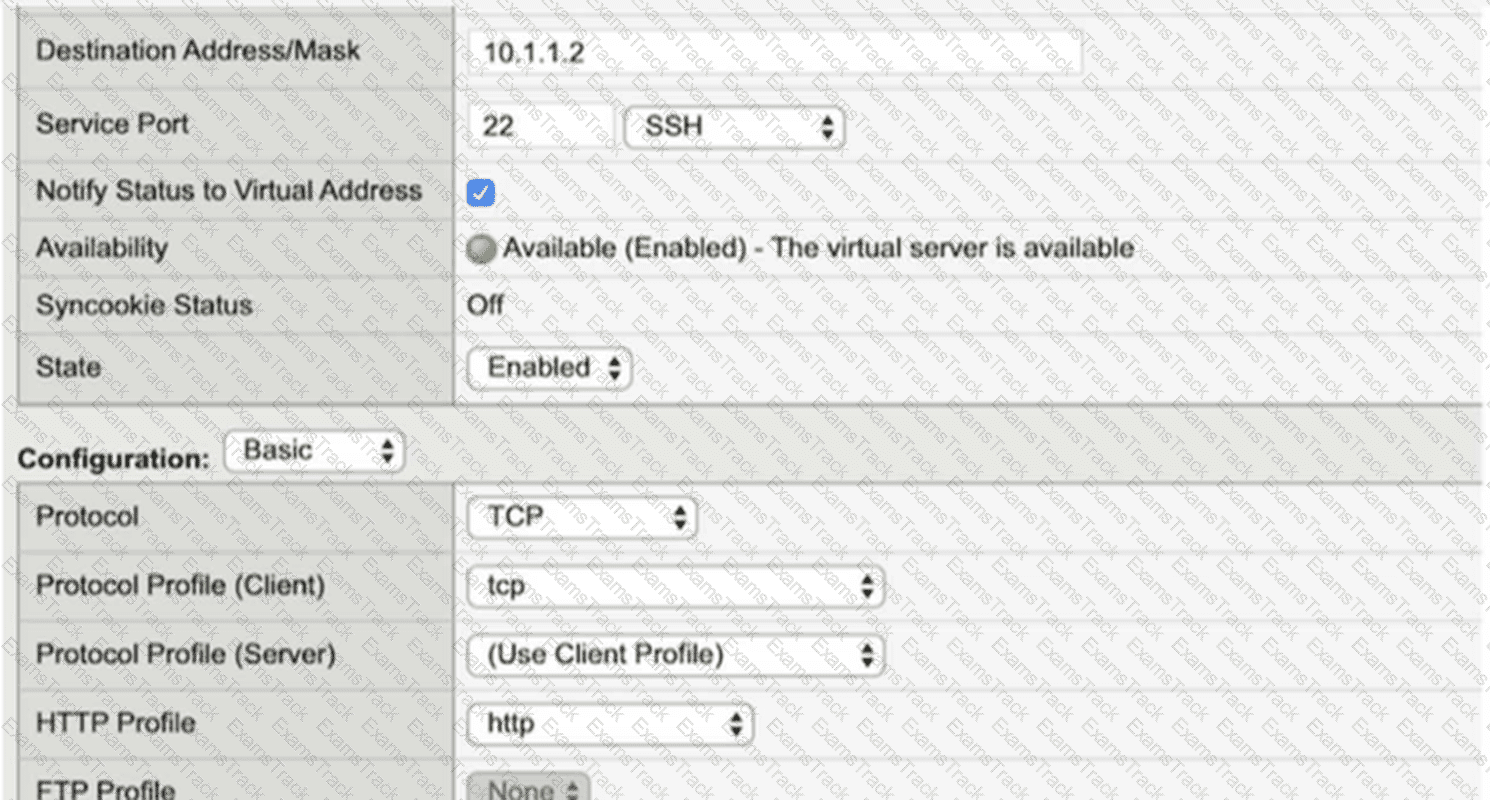

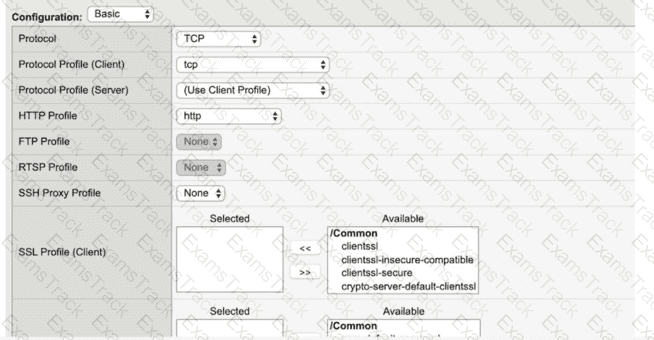

SSH is a TCP Layer 4 protocol. Applying an HTTP profile causes BIG-IP to expect HTTP headers, breaking SSH sessions. Removing the HTTP profile allows raw TCP forwarding.

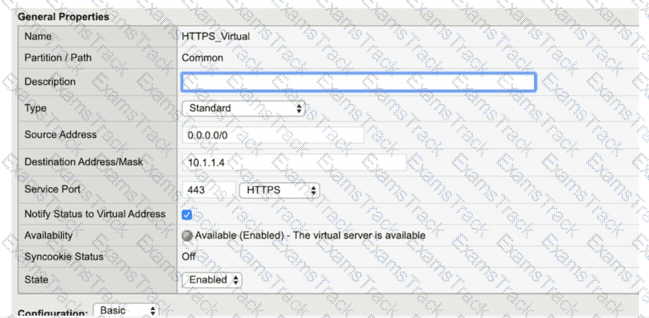

A red diamond indicates that the Virtual Server is enabled but unavailable, typically due to all pool members being down.

An F5 iApp is a template-driven system used to deploy complex applications by grouping all necessary BIG-IP objects (Virtual Servers, Pools, Profiles) into a single management entity. Objects created by an iApp are distinguished by their naming convention and metadata. In the provided exhibit, the Virtual Server configuration in Option A is clearly identified as an iApp-managed object through two primary indicators. First, the object resides within a sub-directory or partition ending in .app (/Common/vmware_test.app/). Second, the configuration explicitly includes the attribute app-service /Common/vmware_test.app/vmware_test, which serves as the system ' s internal pointer linking the LTM object back to the parent iApp Application Service. Furthermore, several profiles associated with this virtual server also reside within the same .app container, such as /Common/vmware_test.app/vmware_test_http.

In contrast, Options B, C, and D represent standard, manually created Virtual Servers. While they may have complex configurations (such as the APM profiles in app2_vs and app1_vs), they lack the folder-based naming hierarchy and the app-service metadata attribute that denotes iApp ownership. Standard objects like app1_vs are managed individually, whereas the objects within vmware_test.app are typically protected by " Strict Updates. " This means their configuration is controlled by the iApp ' s template logic; any manual attempt to modify these specific parameters directly via the Virtual Server menu would result in an error message stating the service must be updated via the application management interface. Identifying these objects is a critical procedural step for administrators to determine whether a configuration should be edited through the standard LTM menus or through the iApp ' s " Reconfigure " tab to ensure consistency and prevent manual changes from being overwritten by the template.
