Within the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, the transition from " polling " to " streaming " is a major architectural shift. To populate real-time dashboards in external observability platforms like Grafana , Splunk , or AppDynamics , the architect should utilize the OpenTelemetry (OTel) integration (Option B).

ThousandEyes for OpenTelemetry is a push-based API built on the standardized OpenTelemetry Protocol (OTLP) . Unlike traditional REST API polling (Option A), which retrieves data at fixed intervals and can be subject to rate limiting and latency, the OTel integration allows ThousandEyes to stream granular network metrics as they are collected. These metrics—including latency, loss, jitter, and HTTP response times—are exported in a standardized format that is natively understood by modern observability backends. This allows the platform to populate complex visualizations such as time-series graphs, heatmaps, and multi-metric tables in near real-time, providing a " single pane of glass " view that correlates network performance with application and infrastructure telemetry.

A key advantage of the OTel approach is data portability and correlation . By applying metadata tags to ThousandEyes tests, the data can be filtered and categorized within the external dashboard to match the organization ' s business logic (e.g., grouping by region or application tier). This enables SREs and NetOps teams to quickly identify if a performance dip in an application dashboard correlates with a spike in internet latency measured by ThousandEyes. Options C and D do not provide the streaming data pipeline required for real-time external dashboard population. Thus, OpenTelemetry is the definitive choice for high-fidelity, real-time observability integration.

AppDynamics

Catalyst Center

ThousandEyes

Meraki

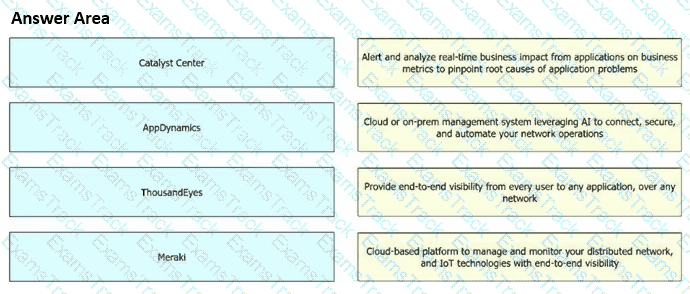

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, each platform is positioned to address a distinct domain of visibility and management within the modern IT visibility framework.

AppDynamics (matched to Case 1) is specifically engineered for Full-Stack Observability and Application Performance Monitoring (APM). Its unique focus is linking technical application performance—such as code-level execution and database queries—directly to business outcomes and real-time business metrics. By doing so, it allows organizations to pinpoint how application latency impacts revenue or user satisfaction, making it the primary choice for business impact analysis.

Catalyst Center , formerly DNA Center (matched to Case 2), serves as the foundational controller for campus and enterprise network infrastructure. It leverages AI-driven insights to automate network operations, enforce security policies, and provide at-a-glance health monitoring for local devices and clients. It is the definitive management system for connecting and securing " inside " the corporate network perimeter.

ThousandEyes (matched to Case 3) provides " Internet Intelligence " and is the key solution for monitoring the service delivery chain across environments the enterprise does not own. By utilizing a global network of Cloud, Enterprise, and Endpoint agents, it provides end-to-end visibility from any user location to any application (SaaS or Cloud) over any network (Internet, ISP, or WAN).

Meraki (matched to Case 4) is a cloud-first platform designed for managing highly distributed network environments and IoT deployments. It provides end-to-end visibility through a simplified dashboard that integrates wireless health, switching, and security across thousands of sites, making it ideal for lean IT teams managing distributed retail or branch locations.

Each platform utilizes different data collection methods—active synthetic testing for ThousandEyes and passive monitoring/AI telemetry for Catalyst Center—to ensure comprehensive network assurance across the entire enterprise ecosystem.

Detailed Explanation:

The IT Operations Dashboard includes a section at the beginning that explicitly displays active alert rules and their status. According to the dashboard configuration, the reason for the current alert trigger is Network packet loss. This indicates that the underlying network path for the application is experiencing packet drops exceeding the defined threshold, even if the application layer remains partially functional.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) best practices, the goal of a successful endpoint assurance rollout is to maximize coverage while minimizing the burden on both IT staff and end-users. The most effective strategy for achieving this is to use a centralized software deployment tool (e.g., GPOs, Intune) that supports silent installation (Option B).

Centralized deployment tools allow administrators to push the ThousandEyes Endpoint Agent to thousands of machines simultaneously from a single management console. 12 By using silent installation parameters (such as /quiet or /qn for MSI packages), the agent is installed in the background without requiring any user interaction or even showing a setup wizard. 13 This " minimally disruptive " approach ensures that business operations are not interrupted. Furthermore, centralized tools provide a " secure " deployment method because the IT team retains control over the version of the agent being installed and can ensure that the Account Group Token is correctly embedded, which is necessary for the agent to register with the ThousandEyes dashboard.

Contrasting this with other methods:

Manual Installation (Option A): This is not scalable and is highly labor-intensive, making it unsuitable for large enterprises.

Emailing links (Option C) or Web Portals (Option D): These methods rely on the end-user to perform the installation correctly and to have the necessary local administrative privileges. This often leads to low adoption rates, inconsistent configurations, and security risks associated with users running installers manually.

By leveraging existing enterprise infrastructure like Active Directory GPOs or Microsoft Intune , organizations can ensure a 100% compliant deployment that immediately begins providing the " user-centric " visibility required for modern network assurance.

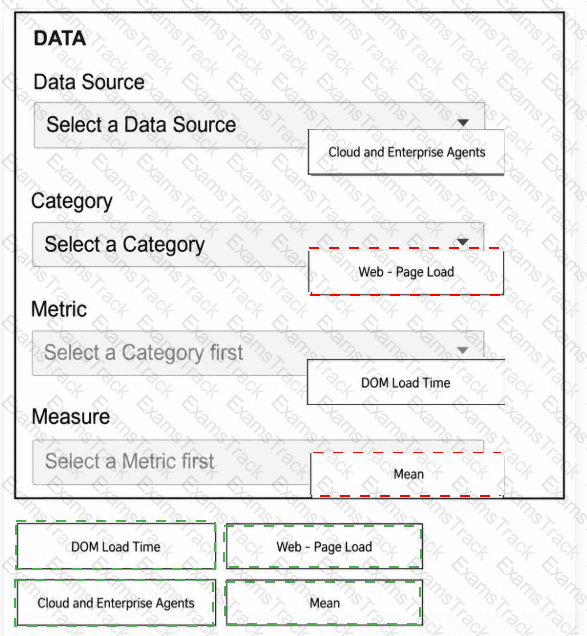

Cloud and Enterprise Agents → Web - Page Load → DOM Load Time → Mean

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical design consideration is the impact of the monitoring solution on the production environment. The primary advantage of passive monitoring (Option B) is its non-intrusive nature; it provides insights into network performance and traffic composition without injecting additional " synthetic " overhead into the data plane.

Passive techniques—such as Cisco Meraki Insight (MI) , NetFlow, and SNMP—rely on the telemetry generated by existing user traffic or the device ' s own control plane. For example, Meraki Insight analyzes HTTP/S flows as they naturally pass through a Meraki MX appliance to derive application performance scores, rather than sending separate probes. 5 This ensures that the monitoring tool itself does not consume bandwidth or contribute to network congestion, which is particularly vital in bandwidth-constrained branch environments or on high-utilization links.

In contrast, active monitoring (Options A and C) requires the deliberate generation of synthetic traffic, which can potentially skew results if the volume is too high or if the network is already at capacity. While active monitoring is essential for proactive troubleshooting (measuring performance before users complain), passive monitoring is the preferred method for long-term historical analysis of real user experience and infrastructure utilization because it captures what is actually happening on the wire. Option D is a shared capability; both types can measure specific services, but only passive monitoring does so while remaining transparent to the network load. Therefore, the lack of added traffic is the definitive advantage of the passive approach.

In wireless network assurance, high channel utilization and increased retransmissions are clear indicators of RF interference or over-subscription. Retransmissions are particularly damaging to voice call quality because they introduce significant jitter and late-arrival packet loss that the jitter buffer cannot overcome.

The recommended optimization is to change the access point to a different, less congested channel (Option B). This directly reduces the competition for airtime (Channel Utilization) and the likelihood of collisions from neighboring access points (Co-Channel Interference), which in turn lowers the retransmission rate. Modern wireless controllers using Radio Resource Management (RRM) often automate this, but a manual adjustment based on SNMP telemetry is a valid operational fix.

Other options are technically flawed:

Option A: Increasing transmit power often increases interference and channel utilization for surrounding cells, making the problem worse for everyone.

Option C: Disabling all non-voice traffic is an extreme measure that is rarely feasible in a real business environment.

Option D: Admission control limits the number of users but doesn ' t solve the underlying issue of poor channel health for those already connected.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, identifying routing anomalies such as BGP Hijacking is a critical aspect of external network assurance. A BGP Hijack occurs when an Autonomous System (AS) illegitimately announces a prefix it does not own, causing traffic intended for the rightful owner to be misdirected.

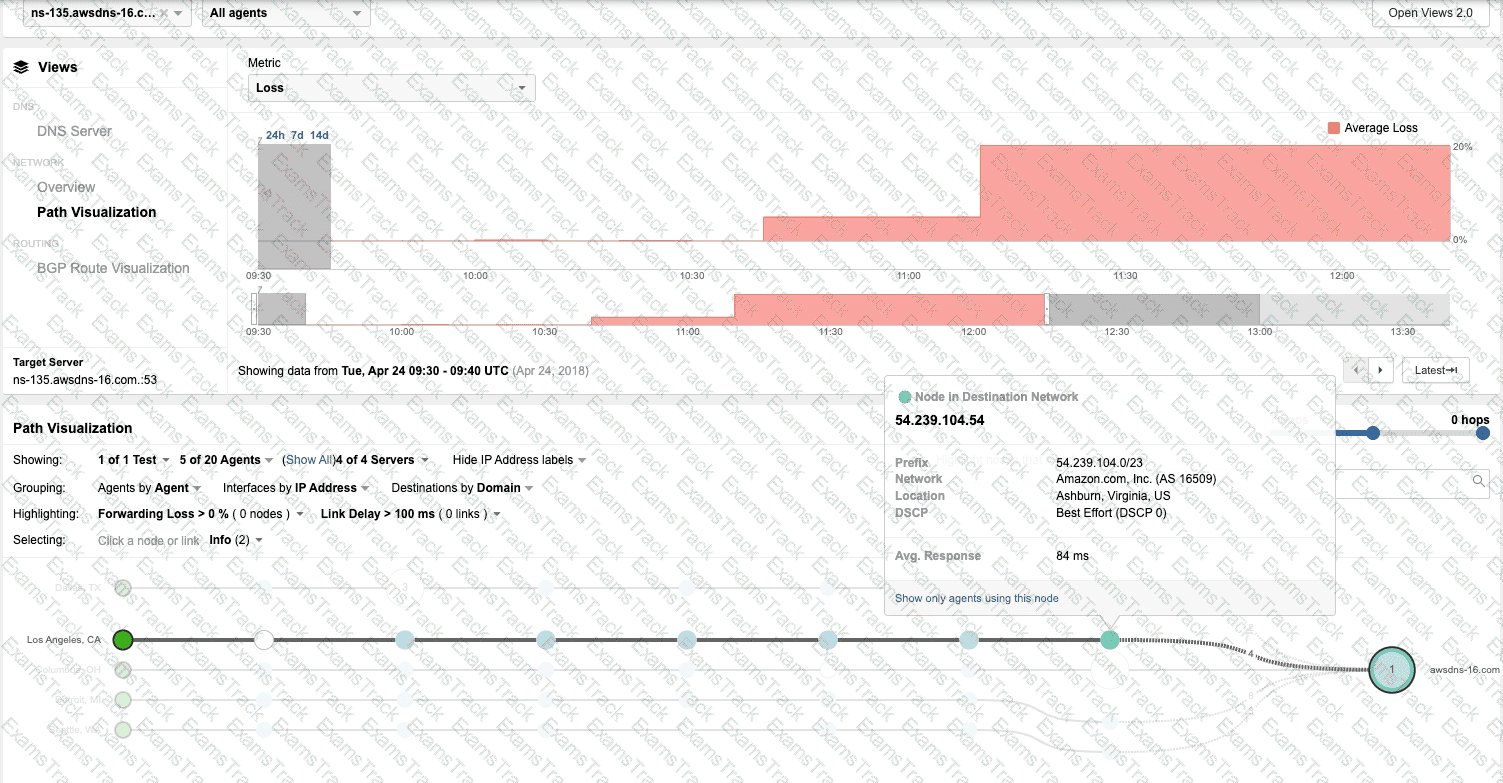

By contrasting Exhibit 3.4-1 (Before the Outage) and Exhibit 3.4-2 (During the Outage), a definitive change in the routing path is observed. In the baseline view (Exhibit 3.4-1), traffic from the Los Angeles agent reaches the destination network 54.239.104.0/23, which is correctly associated with Amazon.com, Inc. (AS 16509) . However, during the outage (Exhibit 3.4-2), the path visualization shows the traffic being redirected into a different network: eNET Inc. (AS 10297) . At this new location, the traffic encounters 100% Forwarding Loss at the node ten7-8.core-2.xlhost.com.

The change in the Autonomous System (AS) number from 16509 to 10297 (Option B) is the most concrete indicator of a BGP Hijack. While symptoms such as Availability Drop (Option A), Response Delay (Option C), and Packet Loss (Option D) are clearly visible in the ThousandEyes telemetry, these symptoms are generic and could be caused by various other issues like physical link failures or congestion. The shift in the AS path—specifically to an AS that does not legitimately host the target ' s IP prefix—provides the forensic evidence needed to identify the root cause as a routing takeover. This visualization allows network administrators to bypass internal troubleshooting and immediately focus on external remediation with upstream providers.
