Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the unified architecture ofVMware Cloud Foundation (VCF) 9.0, the management paradigm has shifted towards a more centralized "Fleet Management" approach. Historically, in VCF 4.x and 5.x, updates were primarily managed via the SDDC Manager using the Lifecycle Management (LCM) engine. However, with the integration advancements in version 9.0,VCF Operations(formerly part of the Aria/vRealize suite) has taken on a more direct role in the orchestration of updates across the entire VCF "Fleet."

To comply with the VCF operational model, administrators no longer apply patches directly within the component managers (like NSX Manager or vCenter) if they wish to remain within the supported, automated framework. Instead, the workflow begins by downloading the bundle or patch toVCF Operations. This ensures that the update is validated against the currentBill of Materials (BOM)and that all dependencies—such as compatibility with the underlying ESXi versions or the management vCenter—are checked before any changes are committed.

Once the patch is available in VCF Operations, the administrator utilizesFleet Managementto apply it. This service orchestrates the update across all NSX Managers and Transport Nodes (Edges and Hosts) in a controlled, non-disruptive manner. If the administrator were to apply the patch directly in NSX Manager (Option D), the SDDC Manager and VCF Operations databases would go out of sync, leading to a "configuration drift" where the system no longer knows which version is actually running, potentially breaking future automated lifecycle tasks. Therefore, the centralized download and application throughVCF Operations Fleet Managementis the verified procedure for maintaining a healthy and compliant VCF 9.0 environment.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the context ofVMware Cloud Foundation (VCF)networking, understanding how an ESXi host (acting as a Transport Node) handles East-West traffic is fundamental. East-West traffic refers to communication between workloads within the same data center, often on the same logical segment.

When a Virtual Machine sends a frame to another VM on the same logical segment, the ESXi host's virtual switch must determine the "location" of the destination MAC address to performframe forwarding. TheMAC Table(also known as the Forwarding Table or L2 Table) is the primary structure used for this decision. For each logical segment, the host maintains a MAC table that maps the MAC addresses of virtual machines to their specific "locations."

If the destination VM is residing on thesame host, the MAC table points the frame toward a specific internal port (vUUID) associated with that VM's vNIC. If the destination VM is on adifferent host(in an overlay environment), the MAC table entry for that remote MAC address will point to theTunnel End Point (TEP)IP of the remote ESXi host. While the TEP table (Option C) contains the list of known Tunnel Endpoints and the ARP table (Option A) maps IP addresses to MAC addresses, neither is the primary table used for the finalframe forwardingdecision.

TheMAC Tableis the authoritative source for Layer 2 forwarding. In an NSX-managed VCF environment, these tables are dynamically populated and synchronized via theLocal Control Plane (LCP), which receives updates from the Central Control Plane. This ensures that even as VMs move via vMotion, the MAC table remains updated across all transport nodes, allowing for seamless East-West connectivity without the need for traditional MAC learning (flooding) in the physical fabric.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

A critical requirement for the backup and restore process inVMware NSX(and by extension, VCF) is version parity. The NSX Manager backup contains the database schema, configuration files, and state information specific to the version of the software that was running at the time the backup was taken.

When performing a restore into a "clean" environment, the NSX documentation explicitly states that the target NSX Manager appliancemust be of the exact same build versionas the appliance that generated the backup. If an administrator attempts to restore a backup from version 4.1.x onto a newly deployed manager running version 4.2.x or 9.0 (as implies by "latest version"), the restore process will fail because the database schema of the newer version is incompatible with the older data structure.

In aVCF environment, whileSDDC Manager(Option B) handles the lifecycle and replacement of failed nodes, the actual "Restore from Backup" workflow is an NSX-native operation. If the entire cluster is lost, the recovery procedure involves:

Identifying the build number from the backup metadata.

Deploying a single "Discovery" node of that exact build.

Pointing that node to the backup repository (SFTP/FTP).

Executing the restore.

Once the primary node is restored to the correct version, the administrator can then add additional nodes to reform the cluster. Attempting to use the API (Option C) or changing the passphrase (Option A) will not bypass the fundamental requirement for version alignment between the backup file and the installed binary.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

The architecture ofNSX Federationwithin a VCF Multi-Site design is built upon a separation of theControl Planeand theData Plane. This "decoupled" architecture ensures high availability and resiliency even when management components become unavailable.

In NSX Federation, theGlobal Manager (GM)handles the configuration of objects that span multiple locations, while theLocal Manager (LM)is responsible for pushing those configurations down to the local Transport Nodes (ESXi hosts and Edges) within its specific site. When a configuration is pushed, the Local Manager communicates with theCentral Control Plane (CCP)and subsequently theLocal Control Plane (LCP)on the hosts.

If an NSX Local Manager goes offline, the "Management Plane" for that site is lost. This means no new segments, routers, or firewall rules can be created or modified at that site. However, the existing configuration is already programmed into theData Plane(the kernels of the ESXi hosts and the DPDK process of the Edge nodes).

According to VMware's "NSX Multi-Location Design Guide," the data plane remains fully operational during a Management Plane outage. Existing VMs will continue to communicate, BGP sessions on the Edges will remain established, and Distributed Firewall (DFW) rules will continue to be enforced based on the last known good configuration state cached on the hosts. The data plane does not require constant heartbeats from the Local Manager to forward traffic. Therefore, operations continue normally "headless" until the LM is restored and can resume synchronization with the Global Manager and local hosts. Failover to a primary site (Option D) is only necessary if the actual data plane (hosts/storage) fails, not just the management components.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In aVMware Cloud Foundation (VCF)architecture, theTier-0 Gatewayis the primary point of integration between the virtualized network and the physical world. When dealing with multiple upstream routers (multi-homing), administrators must influence the BGP path selection process to ensure traffic follows the desired path and avoids suboptimal routing or asymmetric flows.

AS-Path Prependis a common technique used to influenceinbound traffic(traffic coming from the physical network into the NSX environment). By repeating its own Autonomous System (AS) number multiple times in the BGP advertisement, the Tier-0 Gateway makes a specific path look "longer" and therefore less desirable to the upstream physical routers. Since BGP prefers the shortest AS-Path, the routers will favor the alternate link that does not have the prepended AS numbers. This is a critical tool in VCF designs to ensure that a primary link is utilized unless a failure occurs.

MED (Multi-Exit Discriminator)is an attribute that suggests to an adjacent external AS which path to take among multiple entry points to the same AS. Like AS-Path Prepend, it influences inbound traffic. A lower MED value is preferred over a higher one. In a VCF environment with multiple Edge Nodes or multiple Tier-0 uplinks, setting different MED values allows the administrator to prioritize specific entry points for traffic entering the SDDC.

BFD (Bidirectional Forwarding Detection)is not a BGP attribute; it is a detection protocol used to provide fast failure detection of the link between BGP neighbors. While it triggers faster convergence, it does not influence path selection based on attributes.Costis an OSPF attribute, not a native BGP attribute. Therefore, in the context of NSX Tier-0 BGP configuration, AS-Path Prepend and MED are the verified methods for path manipulation.

===========

the administrator should click theTier-1 DR iconlocated within theEdge Node.

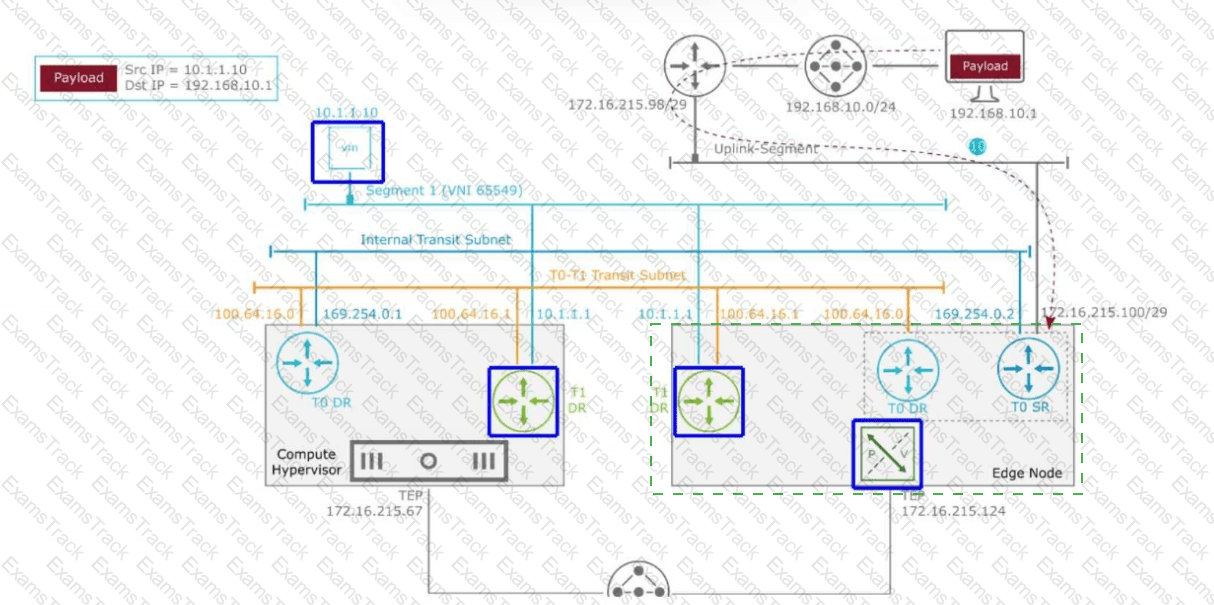

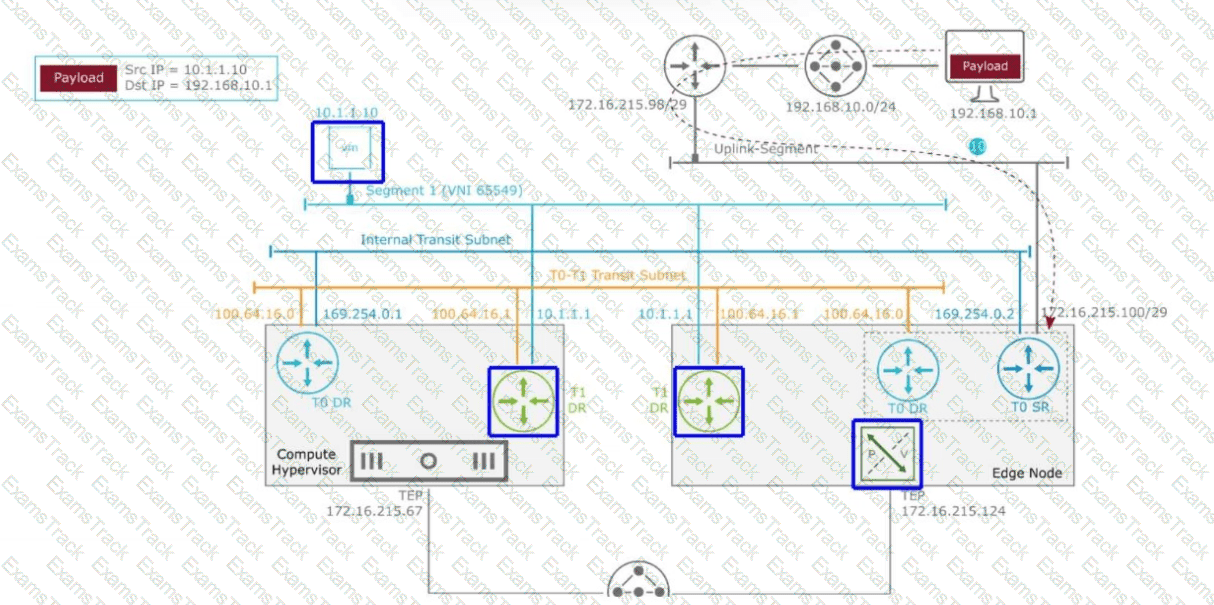

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:In aVMware Cloud Foundation (VCF)environment, North-South traffic flows through a hierarchical routing structure composed ofTier-0andTier-1 Gateways. Each gateway is further divided into aDistributed Router (DR)component, which runs as a kernel module on all Transport Nodes (ESXi and Edges), and aService Router (SR), which provides centralized services and resides on the Edge Nodes.

According to the packet walk logic for an incoming (North-to-South) packet, once the traffic arrives from the physical router at theTier-0 Service Router (SR)on the Edge Node, it must be routed toward the destination virtual machine (10.1.1.10). In a multi-tier NSX architecture, the Tier-0 SR identifies that the destination subnet belongs to a connectedTier-1 Gateway. The communication between the Tier-0 and Tier-1 gateways occurs over an internal transit subnet, often referred to as theRouter Link(in this diagram, represented by the 100.64.16.0/31 subnet).

The "Next Hop" for the packet currently residing at the Tier-0 SR on the Edge Node is theTier-1 Distributed Router (DR)instance located on that same Edge Node. This is because the Edge Node participates as a Transport Node in the overlay and maintains local instances of all Distributed Routers to ensure efficient path processing. After the packet is processed by the local Tier-1 DR on the Edge Node, it determines that the destination VM is residing on a remote host (Compute Hypervisor). Only then is the packet encapsulated in aGeneveheader and sent via theTunnel Endpoints (TEP)from the Edge Node (172.16.215.124) to the Compute Hypervisor (172.16.215.67). Therefore, the Tier-1 DR on the Edge Node is the immediate logical next step in the routing pipeline before any host-to-host encapsulation occurs.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In a modern VMware Cloud Foundation (VCF) architecture, particularly when addressing the needs of a multinational corporation with geographically dispersed data centers, the solution must prioritize multi-tenancy, security, and consistent delivery. The integration ofNSXwithin VCF provides these core pillars.

First, theNSX Edgeis a foundational requirement for any multi-site or modern cloud environment. It serves as the bridge between the virtual overlay network and the physical world. In a multi-region deployment, NSX Edges facilitate North-South traffic and are essential for supporting features like Global Server Load Balancing (GSLB) or site-to-site connectivity. Without the Edge, the software-defined data center (SDDC) cannot communicate with external networks or peer via BGP with physical routers.

Second,vDefend(formerly known as NSX Security) provides the advanced security framework required for a "secure and scalable" environment. This includes Distributed Firewalling (DFW), Distributed IDS/IPS, and Malware Prevention. For a corporation with different departments, vDefend allows for micro-segmentation, ensuring that a security breach in one department's segment cannot move laterally to another. This is critical for meeting compliance and isolation requirements across global regions.

Third, theVirtual Private Cloud (VPC)model is the cornerstone of the latest VCF 9.0 and 5.x architectures. It enables the "scalable solution" for different departments by providing a self-service consumption model. Each department can manage its own isolated network space, including subnets and security policies, without needing deep networking expertise or constant tickets for the central IT team. This abstraction simplifies management across multiple data centers and allows for consistent application of policies regardless of the physical location.

While AVI Load Balancer and Centralized Network Connectivity are valuable, they are often considered add-ons or outcomes rather than the core architectural features that define the multi-tenant, secure, and geographically distributed nature of a modern VCF private cloud modernization project.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theNSXmulti-tier routing architecture used by VCF, aTier-1 Gatewayis composed of two primary components: theDistributed Router (DR)and theService Router (SR). The DR runs as a kernel module on every ESXi host in the transport zone, facilitating East-West traffic. The SR resides on the NSX Edge nodes and provides centralized services like North-South connectivity and stateful services.

Communication between the DR (on the ESXi host) and the SR (on the Edge node) occurs over a hidden internal segment known as theRouter Link. This link is encapsulated inGenevejust like VM-to-VM traffic. When a VM attempts to reach an external destination, the packet is first routed by the DR on the local host. The DR then encapsulates the packet and sends it across the overlay to the TEP (Tunnel Endpoint) of the Edge node hosting the SR.

If theMTU (Maximum Transmission Unit)is misconfigured on the physical network or the virtual switches, large encapsulated packets will be dropped. However, small packets (like pings between VMs on the same host) might still succeed. In this scenario, the fact that the VM can ping the local DR butcannot reach the SR—and therefore cannot reach external networks—points to a failure in the transport between the host and the Edge.

If the Geneve-encapsulated packet containing the ping request to the SR's internal interface exceeds the physical network's MTU, it will fail. Since VCF 5.x/9.0 requires a minimum MTU of1600(ideally9000) for the overlay to account for the Geneve overhead, a mismatch anywhere in the fabric will break the DR-to-SR "backplane" communication. This prevents the Tier-1 from passing any traffic to its Tier-0 uplink, effectively isolating the workloads from North-South traffic.
