Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

With the introduction of theVirtual Private Cloud (VPC)consumption model inVCF 9.0and late 5.x releases, Role-Based Access Control (RBAC) has become more granular to support true multi-tenancy. A VPC is designed to be a self-contained "container" for a department's or user's networking resources.

To meet the specific requirement where a user can configure aspects of an individual VPC but is restricted from creating new subnets (which involves modifying the underlying network CIDR blocks and IPAM), a combination of specific roles is required.

VPC Admin:This is the primary role for the user within their assigned VPC. It allows the user to manage the overall VPC environment, including high-level settings and monitoring. However, the VPC Admin's power is often limited by the specific quotas and policies set by the Enterprise Admin.

Security Operator:This role allows the user to view security configurations and policies without having the permission to modify the network fabric or create new infrastructure components like subnets. It provides the "read-only" visibility into the security posture of the VPC.

Network Operator:Similar to the Security Operator, the Network Operator role provides visibility into the networking state—such as routing tables, segment status, and connectivity—without granting the "Write" permissions required to provision new subnets or alter the network topology.

AssigningNetwork Admin(Option B) orSecurity Admin(Option A) would grant too much privilege, as these roles typically include the ability to create, delete, and modify subnets and firewall policies at a structural level. By combining theVPC Adminrole withOperator-level roles, the administrator ensures the user has the necessary context to manage their assigned resources while strictly adhering to the restriction against creating new network subnets.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In anNSX Federationdeployment, which is a key component of multi-siteVMware Cloud Foundation (VCF)architectures, theRemote Tunnel End Point (RTEP)is used specifically for inter-site communication. While standard TEPs (Tunnel End Points) handle overlay traffic within a single site (East-West), RTEPs facilitate the encapsulation of traffic that needs to traverse the Layer 3 network between different geographical locations.

A critical design consideration for RTEP is theMaximum Transmission Unit (MTU). Within a local VCF site, jumbo frames (MTU 1600 or 9000) are highly recommended and often required for the Geneve overlay to account for encapsulation overhead. However, when traffic leaves a site to travel over a WAN or a provider's long-haul network, it often encounters physical infrastructure that only supports the standard internet MTU of1500 bytes.

According to VMware's "NSX Federation Design Guide," the default MTU setting for the RTEP configuration is1500. This ensures that inter-site traffic can pass through standard routers and VPNs without being dropped due to size constraints. If the inter-site physical links support larger frames, this value can be increased, but 1500 remains the baseline compatible default.

Regarding the other options:Ais incorrect because TEP and RTEP can share the same physical N-VDS and physical NICs (pNICs) by using different VLANs or subnets.Bis incorrect because every Edge node within a cluster that is participating in the Federation must have an RTEP configured to ensure high availability and proper traffic processing for global segments.Dis incorrect as IP addresses for RTEPs are typically assigned viaStatic IP Poolsmanaged within NSX to ensure consistency and ease of tracking across sites, rather than relying on DHCP which is less common in data center backbone configurations.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theSDDC Managerautomates the deployment and expansion ofNSX Edge Clusters. As part of the automated workflow, particularly in VCF 4.x, 5.x, and 9.0, a "Verify BGP Route Distribution" task is executed. This task is a validation check designed to ensure that the newly deployed or expanded Edge nodes are successfully peering with the physical Top-of-Rack (ToR) switches and, more importantly, are actually receiving routes.

According to VMware/Broadcom technical documentation (specificallyKB 388351), the workflow expects to see at least one route (often the default route or specific physical prefixes) learned via BGP from the northbound peer. If the Edge nodes establish a BGP session but the physical switches are not advertising any routes (or are only advertising routes that the Edge ignores due to filters), the SDDC Manager validation fails with the error "Failed to validate the BGP Route Distribution".

The verified troubleshooting step is tolog into the CLI of the Edge nodeidentified in the failure. Using the command get route bgp from within the Tier-0 Service Router (SR) VRF context allows the administrator to see the current Routing Information Base (RIB). If the table is empty or only contains internal "ISR" (Inter-SR) routes, it confirms that the physical network is not providing the expected advertisements. This allows the administrator to correct the BGP advertisement settings on the physical ToR switches—such as enabling default-originate—and then simply "Resume" the task in SDDC Manager without needing to redeploy the entire cluster.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In theVMware Cloud Foundation (VCF) 9.0andNSX VPCarchitecture, theTransit Gateway (TGW)is the central routing element that interconnects VPCs to each other and to the provider's infrastructure (Tier-0 or VRF gateways). It acts as the "Project-level" gateway that aggregates North-South traffic.

To control the visibility of routes within a specific VPC, the administrator must utilizeRoute Filteringat the VPC's boundary. When a VPC is attached to a Transit Gateway, a logical interface is created. To prevent the data center's internal prefixes (such as management networks or other tenant subnets) from being seen by the VPC while still providing a path to the internet, a prefix list or route map should be applied to theVPC Transit Gateway. This policy will explicitly "Deny" specific internal CIDR ranges while "Permitting" the $0.0.0.0/0$ default route advertisement from the provider.

Applying the policy at theTier-1 gateway(Option B) is technically similar but in the VPC model, the "Tier-1" is often an obscured or automated component of the VPC itself; the Transit Gateway is the designed administrative point for inter-project and North-South policy enforcement. Applying it at theprovider Tier-0 neighbor(Option D) would be too global, affecting all VPCs or projects connected to that Tier-0, rather than the "new VPC" specifically. Therefore, the Transit Gateway provides the necessary granular control for multi-tenant isolation and routing optimization as per the VCF 9.0 networking model.

===========

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

In the context ofVMware Cloud Foundation (VCF), particularly versions 5.x and the architectural advancements inVCF 9.0, the establishment of North-South routing via theNSX Tier-0 Gatewayis a critical post-deployment or bring-up task. The Tier-0 gateway usesBorder Gateway Protocol (BGP)to peer with physical Top-of-Rack (ToR) switches to exchange reachability information for the overlay networks.

When a BGP session is reported in the"Idle"state, it indicates that the BGP Finite State Machine (FSM) is at its first stage and is not yet attempting a TCP connection, or it has encountered an error that forced it back to this state. According to VMware VCF documentation and NSX troubleshooting guides, if the administrator can successfully ping between the Tier-0 uplink IP and the physical router interface,Layer 3 reachability is confirmed. This eliminates issues related to physical cabling, VLAN tagging on the trunk ports, or basic IP interface configuration.

The primary reason a BGP session remainsIdledespite successful ICMP reachability is a configuration mismatch. Specifically, anAutonomous System (AS) number mismatchis the most frequent culprit. BGP requires that the "Remote AS" configured on the Tier-0 gateway matches the "Local AS" of the physical peer. If the SDDC Manager automated workflow or the manual configuration in NSX Manager contains a typo in these values, the protocol handshake will fail immediately.

While aDistributed Firewall (DFW)could technically block port 179, it is not common in a "freshly deployed" environment for the default rules to block the Edge Node's control plane traffic.Geneve tunnelsandMTU issues(Option C and D) typically affect the data plane—causing packet loss for encapsulated guest VM traffic—but they do not prevent the BGP control plane (running over standard TCP) from moving beyond the Idle state. Therefore, verifying the AS numbers in the VCF Planning and Preparation Workbook against the physical switch configuration is the verified resolution path.

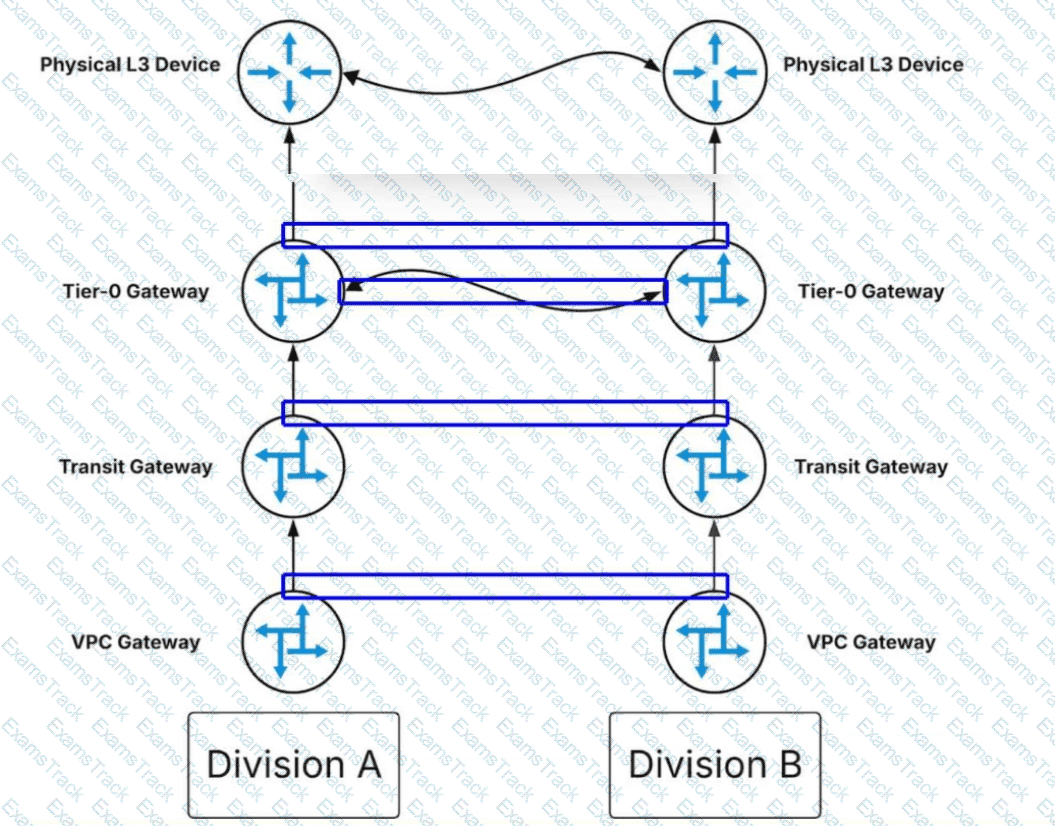

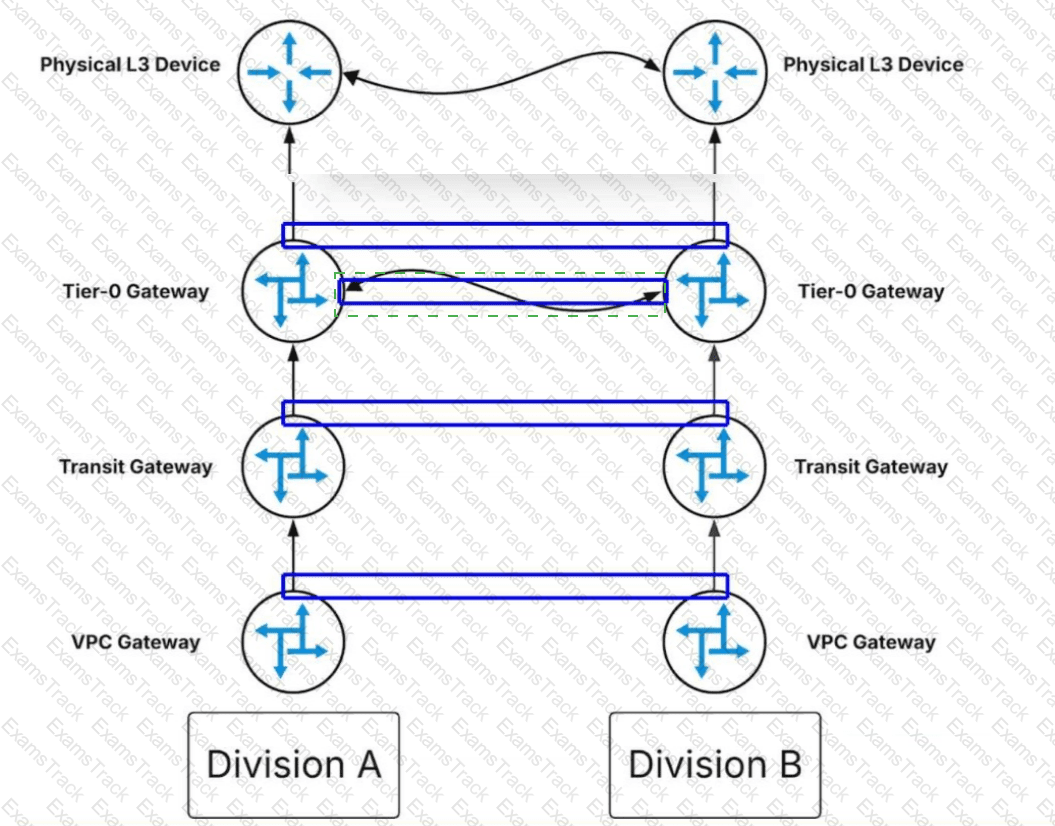

The administrator should click on theblue box representing the logical link between the two Tier-0 Gateways.

In the multi-tenant architecture ofVMware Cloud Foundation (VCF) 9.0, networking is structured hierarchically with VPC Gateways, Transit Gateways, and Tier-0 Gateways. Under normal conditions, traffic between isolated divisions (such as Division A and Division B) that need to communicate might be routed "North" all the way to thePhysical L3 Devices(the physical core routers) before being routed back down. However, if these physical devices are oversubscribed or reaching their throughput limits, this creates a performance bottleneck.

To optimize this flow, NSX allows forRoute Leakingat the Tier-0 layer. By establishing a logical peering or connection directly between twoTier-0 Gatewayswithin the virtual fabric, administrators can exchange routing information (prefixes) between the two environments without the traffic ever leaving the SDDC.

To control exactly which networks are shared and to prevent routing loops or unauthorized access,Route-Mapsmust be applied at this inter-gateway connection point. These route-maps define the "Permit" or "Deny" statements for specific IP prefixes being "leaked" from one routing table to another. By clicking the highlighted link between the Tier-0 Gateways, the administrator is targeting the specific control plane interface where these prefix exchanges occur. This configuration ensures that East-West traffic between Division A and Division B is handled locally by theNSX Edge Nodes, effectively bypassing the oversubscribed physical L3 devices and significantly reducing latency and physical network congestion.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

When aVMware Cloud Foundation (VCF)environment experiences North-South congestion at theTier-0 Gateway, it typically indicates that the processing capacity of the existingNSX Edge Nodeshas been reached. In anActive/Activeconfiguration, the Tier-0 gateway utilizesEqual Cost Multi-Pathing (ECMP)to distribute traffic across all available Edge nodes in the cluster.

If a two-node Edge cluster is saturated despite ECMP being enabled, the standard "Scale-Out" procedure is todeploy additional Edge nodes(Option D). NSX supports up to8 Edge nodesin a single cluster for a Tier-0 gateway. By adding more nodes, the administrator increases the total number of CPU cores dedicated to the DPDK (Data Plane Development Kit) packet processing engine. Each additional node provides more "bandwidth lanes" for the ECMP hash to utilize, effectively multiplying the aggregate throughput capability of the North-South exit point.

Option A is incorrect because "edgeless" Tier-1 gateways (Distributed Routers only) improve East-West performance by keeping traffic on the ESXi hosts, but they do not help with North-South traffic that must eventually hit a Tier-0 Service Router on an Edge. Option B (Disabling NAT) might reduce CPU overhead slightly, but it doesn't solve a fundamental capacity bottleneck and is often not an option due to architectural requirements. Option C (Adding a vNIC) does not increase the underlying compute/DPDK processing power of the Edge VM and can sometimes complicate the load-balancing hash.

In VCF operations, this expansion is handled via theSDDC Manager, which can automate the addition of new Edge nodes to an existing cluster, ensuring they are configured symmetrically with the correct uplink profiles and BGP peering sessions. This horizontal scaling is the verified method for resolving congestion in high-demand VCF networking environments.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

InVMware Cloud Foundation (VCF), theNSX Manageruses the SFTP protocol to securely transfer configuration backups to an external repository. SFTP is built on top of the SSH protocol, which relies on a "Trust on First Use" (TOFU) model for verifying the identity of the remote host.

When an NSX Manager first connects to an SFTP server, it retrieves the server'sSSH Public Key Fingerprintand stores it in its local known_hosts equivalent database. This fingerprint ensures that future connections are made to the same, verified server, preventing man-in-the-middle attacks.

The error"Host KEY Verification Failed"occurs when the administrator changes the SFTP server (or if the SFTP server's OS was reinstalled/keys regenerated). Even if the IP address remains the same, the new server presents a different SSH fingerprint than the one currently cached in the NSX Manager configuration. Because the signatures do not match, the NSX Manager aborts the connection for security reasons.

To resolve this issue, the administrator mustUpdate the SSH fingerprint(Option B) within the NSX Manager backup settings. This involves:

Retrieving the new fingerprint from the SFTP server (e.g., via ssh-keyscan).

Navigating to System > Lifecycle > Backup & Restore in the NSX Manager.

Editing the File Server configuration and pasting the new fingerprint into the appropriate field.

Option A is incorrect as it does not address the SSH protocol handshake failure. Option C is incorrect because SFTP/SSH uses fingerprints, not SSL/TLS certificates. Option D is irrelevant as it changes the source/destination of the connection but does not fix the underlying trust mismatch. Therefore, updating the fingerprint is the verified operational step to restore the automated backup workflow in VCF.

Comprehensive and Detailed 250 to 350 words of Explanation From VMware Cloud Foundation (VCF) documents:

The process of bringing existing infrastructure under VCF management is known as"VCF Import"or"Convergence."This is a common path for organizations transitioning from siloed management to the full SDDC stack provided by Cloud Foundation.

According to the VCF 5.x and 9.0 documentation, theVCF Installer(specifically the Cloud Foundation Builder and the Import Tool) is designed to ingest existing environments. The verified best practice is to converge the environment at its current, supported version, provided it meets the minimum baseline requirements for the VCF version you are deploying.

In this scenario, vSphere 8.0 U1 and NSX 4.1 are compatible versions that can be imported into a VCF management framework. By using theVCF Installerto converge the existing environment first (Option C), the SDDC Manager takes ownership of the existing vCenter and NSX Manager. Once the environment is "VCF-aware," the administrator gains the benefit ofSDDC Manager’s Lifecycle Management (LCM).

The SDDC Manager then handles the orchestrated, multi-step upgrade to version 9.0. This ensures that the automated "Bill of Materials" (BOM) is strictly followed, ensuring compatibility between vCenter, ESXi, and NSX components. Attempting to manually upgrade components to version 9beforeconvergence (Options A and B) or uninstalling NSX (Option D) creates a "Frankenstein" environment that may not align with the VCF BOM, making the automated convergence process fail or resulting in an unsupported configuration. The principle of VCF is tobring the environment in first, then let VCF manage the upgrades.

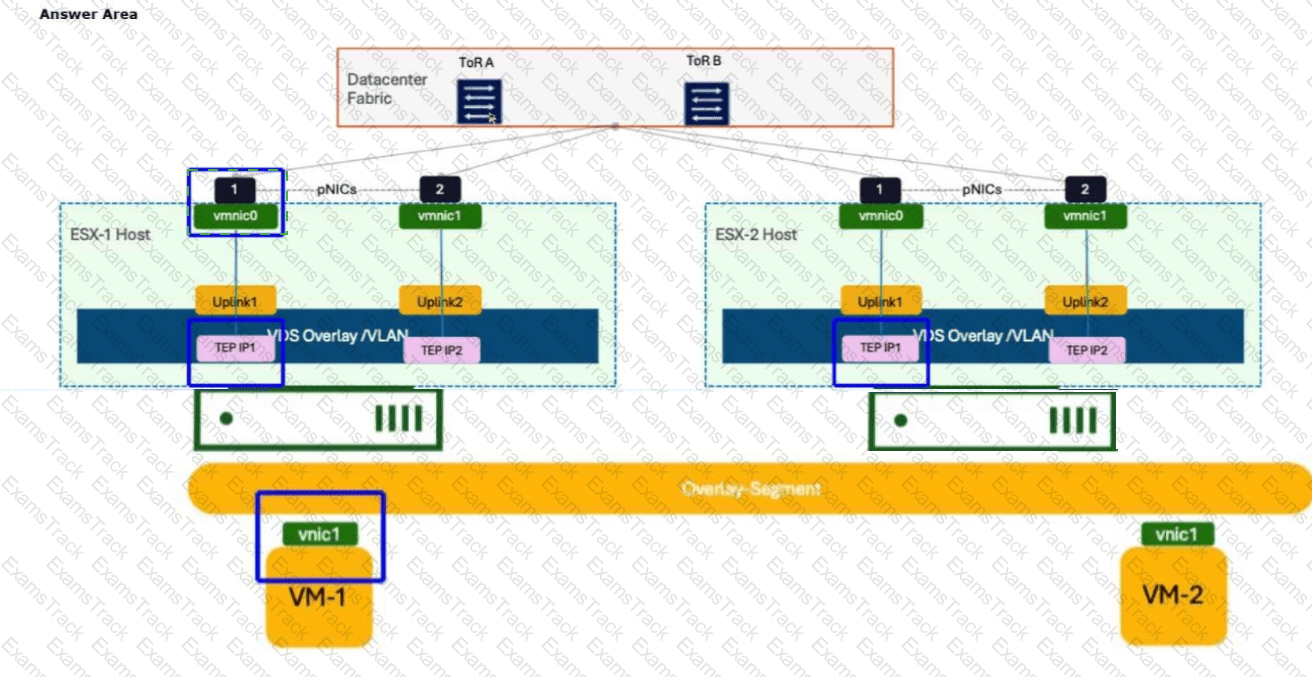

The administrator should click thevmnic0interface on theESX-1 Host.

In aVMware Cloud Foundation (VCF)environment, theGENEVE (Generic Network Virtualization Encapsulation)protocol is the industry-standard tunnel format used by NSX to create an overlay network. This protocol allows Layer 2 traffic from virtual machines to be "tunneled" over a Layer 3 physical IP fabric, enabling workloads to communicate as if they were on the same segment even when separated by physical routers.

When VM-1 on ESX-1 sends an ICMP request to VM-2 on ESX-2, the packet starts as a standard Ethernet frame at the virtual machine'svnic1. At this stage, the packet contains no encapsulation. As the frame enters theVirtual Distributed Switch (VDS)and hits theTunnel End Point (TEP), the host's kernel performs the encapsulation process. The TEP adds a GENEVE header, a UDP header (port 6081), and an outer IP header.

Thevmnic0(physical NIC) on the source host (ESX-1) is the specific "egress" point where this transformation is complete. A packet capture taken at this physical interface will show the "Outer IP" address of the source TEP and destination TEP, with the original ICMP packet hidden inside the GENEVE payload. If the administrator were to click on the VM's vnic, they would only see standard ICMP. By selecting thevmnic0, the administrator captures the traffic as it is placed onto the physical wire, which is the verified location to troubleshoot MTU issues, encapsulation errors, or physical fabric connectivity in a VCF environment.
