Harbor reduces the risk of running vulnerable or tampered images primarily throughvulnerability scanningandimage signing.Vulnerability scanning (E)detects known CVEs in image layers (OS packages and application dependencies, depending on the scanner configuration). This allows teams to identify—and gate the use of—images that contain high/critical vulnerabilities before those images are deployed to Kubernetes clusters. Enforcing scanning as part of the image promotion process helps prevent outdated images with known CVEs from being pulled into production.Image signing (A)provides integrity and provenance controls by enabling consumers to verify that an image was produced and approved by a trusted publisher and has not been altered. When combined with admission controls/policies (for example, only allowing signed images from specific projects), signing helps block unauthorized or unapproved images from being deployed, which is critical when the incident involves exposed internal APIs and supply-chain risk.

The other choices do not directly prevent recurrence:automatic image update (B)is not a core Harbor registry control,deploy both container and VM images (C)is a content capability rather than a security control, andautomatic image validation (D)is not a standard Harbor registry capability distinct from signing/scanning.

In Workload Management, updating the Supervisor and updating VKS clusters are related but distinct lifecycle operations. The Supervisor runs its own Kubernetes distribution, while VKS clusters consume vSphere Kubernetes releases (VKrs). These are “delivered differently,” with Supervisor Kubernetes releases and VKrs each having their own release cadence and compatibility constraints. As a result, successfully updating the Supervisor control plane does not automatically change the Kubernetes version running inside an existing VKS workload cluster; the VKS cluster must be updated to a compatible VKr separately. This mismatch is exactly why an application can still fail after a Supervisor update: the DevOps engineer is still deploying onto a cluster that hasn’t been updated to the Kubernetes version required by the application (or by the API versions/features it depends on). Additionally, Workload Management enforces sequential minor-version updates and compatibility checks between Supervisor and VKrs, so the correct remediation is to update the VKS cluster to an appropriate VKr that satisfies both application needs and Supervisor compatibility.

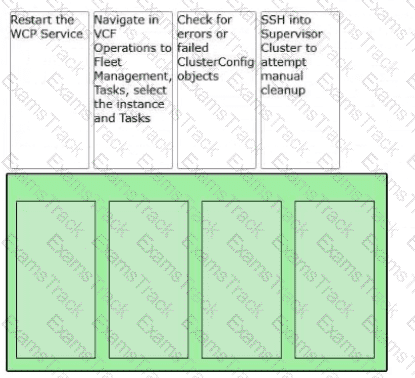

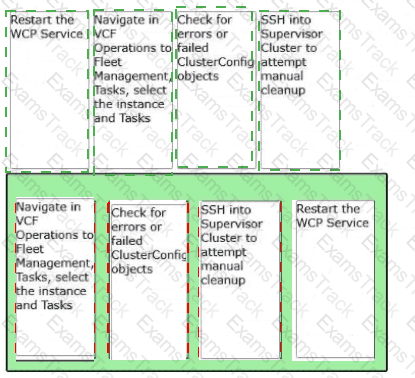

Answer (Correct Order):

Navigate in VCF Operations to Fleet Management → Tasks, select the instance and review Tasks

Check for errors or failed ClusterConfig objects

SSH into the Supervisor Cluster to review logs / attempt manual cleanup if required

Restart the WCP Service

To determinewhya Supervisor upgrade failed, you start where the platform records the most actionable failure context: themanagement-plane task history. The Fleet/Task view surfaces the upgrade workflow steps, timestamps, and the specific operation that failed, which gives you the fastest pointer to the failing phase (precheck, image staging, reconciliation, add-on updates, etc.). Next, you validate the Kubernetes-side reconciliation state by checking forfailed ClusterConfigobjects, because Supervisor enablement/upgrade actions commonly drive configuration via controller reconciliation; a failed ClusterConfig often contains the clearest “reason” and “message” fields that explain what blocked progress (validation errors, dependency issues, unreachable endpoints, incompatible components).

If the management-plane/task view and ClusterConfig status still don’t isolate the root cause, the next escalation is toSSH into the Supervisorto inspect component logs/events and identify low-level failures that may not bubble up cleanly (for example, admission failures, controller crashes, or connectivity/auth issues). Finally,restarting WCPis a remediation step that can clear stuck states, but it’s placed last because it can alter evidence and should not be your first action when you’re still trying to identify the original failure cause.

VCF 9.0 defines VKS as an upstream Kubernetes offering that isbuilt for vSphereand delivered with “well-thought-out defaults” to reduce operational burden. It states VKS provides an“opinionated installation of Kubernetes”with defaults “optimized for vSphere,” which “reduce[s] the amount of time and effort” typically spent deploying and running an enterprise Kubernetes cluster—this directly supportssimplified management and operations (A).

VCF 9.0 also emphasizes VKS is“integrated with the vSphere infrastructure”(storage, networking, authentication) and is built on a Supervisor that maps to vSphere clusters, creating a “unified product experience.” This supportsconsistent Kubernetes deployment on vSphere (B)because clusters are provisioned and operated in a standardized, vSphere-native way.

Finally, VCF 9.0 states VKS clusters “use open source Linux-based” components from VMware by Broadcom and notes key integrations (for example, CNI options) are open source—supportingleveraging open-source technologies (D).

OptionsCandEare not VKS benefits as stated: VKS targets VKS-provisioned upstream Kubernetes clusters (not “any distribution”), and “pods directly on ESXi” is described asvSphere Pods(Workload Management), not a defining benefit of VKS clusters.

Contour is a high-performance Ingress controller for Kubernetes that serves as the control plane for the Envoy edge and service proxy. Within the VMware Cloud Foundation (VCF) 9.0 and vSphere Kubernetes Service (VKS) architecture, Contour is a critical component used to manage how external traffic reaches services running inside a cluster. It functions specifically at the application layer (Layer 7 of the OSI model), enabling sophisticated routing based on HTTP paths, hostnames, and headers.

By utilizing the Envoy proxy, Contour provides a scalable and maintainable way to handle standard Kubernetes Ingress resources as well as the more advanced HTTPProxy custom resource definitions (CRDs). In a VKS environment, once the Supervisor is configured and a workload cluster is deployed, Contour is typically installed as a managed package to provide ingress services. It handles essential tasks such as SSL/TLS termination, which offloads the encryption overhead from individual application pods, and supports advanced traffic management patterns like canary deployments or blue-green updates. Unlike traditional load balancers that may operate only at Layer 4, Contour’s deep integration with the Kubernetes API allows it to dynamically update routing rules as pods scale or fail, ensuring high availability and fine-grained control for containerized applications. This makes it the standard solution for application-layer ingress management across the VMware Tanzu and VKS ecosystem.

A Virtual Machine Class (VM Class) in VMware vSphere with vSphere Supervisor is a policy-driven construct used to define the resource footprint of virtual machines managed via the Kubernetes API. Within the VCF 9.0 ecosystem, the VM Class acts as a blueprint that specifies the amount of virtual CPU (vCPU) and Memory (RAM) allocated to a VM instance. This abstraction allows developers to request standardized sizes (such as " best-effort-small " or " guaranteed-large " ) without requiring direct access to the underlying ESXi host configurations.

In the context of the vSphere Kubernetes Service (VKS), when a user deploys a VirtualMachine object or a Tanzu Kubernetes Cluster node, the system references the assigned VM Class to determine the resource reservations and limits. The vSphere Supervisor ensures that the hypervisor correctly allocates these compute resources based on the specified class. While specialized VM Classes can be created to support advanced hardware like GPUs (using PCI passthrough), the primary and mandatory resources defined in every VM Class are CPU and Memory. Storage is managed independently through StorageClasses and Persistent Volume Claims (PVCs), while networking is governed by the Supervisor Namespace ' s network settings. By centralizing these compute definitions, VCF 9.0 provides a consistent, scalable method for platform administrators to manage hardware resources while offering self-service capabilities to DevOps teams.

VCF 9.0 explicitly states: “The VKS exposes three layers of controllers to manage the lifecycle of a VKS cluster,” and then enumerates those layers. The first layer is the set of components that integrate the workload cluster with Supervisor-backed resources, including aCloud Provider Plug-inthat integrates with the Supervisor and enables infrastructure integrations such as persistent volume requests being passed to the Supervisor (which is integrated with Cloud Native Storage). The second layer isCluster API, described as providing “declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” driven by resources that represent the cluster, the VMs making up the cluster, and cluster add-ons. The third layer is theVirtual Machine Service, which provides a declarative API for managing VMs and associated vSphere resources and is used to manage the lifecycle of the control plane and worker node VMs hosting a VKS cluster.

Therefore, optionAis the only answer that matches the three lifecycle controller layers defined in the VCF 9.0 documentation.

VCF 9.0 describes VKS as providing self-service, declarative lifecycle management for Kubernetes clusters and explicitly identifiesCluster APIas the mechanism that enables Kubernetes-style lifecycle automation. The documentation states that “The Cluster API provides declarative, Kubernetes-style APIs for cluster creation, configuration, and management,” and that its inputs include resources describing “the virtual machines that make up the cluster” plus “cluster add-ons.” This directly maps to automated lifecycle management: a desired-state YAML is reconciled by controllers that create, update, and maintain the control plane and worker node resources without manual, imperative procedures.

The same VCF 9.0 content also notes VKS exposes “three layers of controllers” for lifecycle management and lists Cluster API as one of those layers, reinforcing that Cluster API is foundational for ongoing cluster operations (create, scale, upgrade, reconcile). Contour is an ingress controller (traffic routing), kubeadm is a Kubernetes bootstrap tool (not the VKS lifecycle controller framework), and Grafana is observability/visualization (not cluster lifecycle).

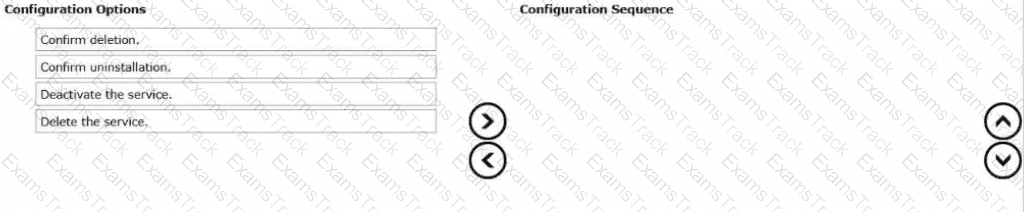

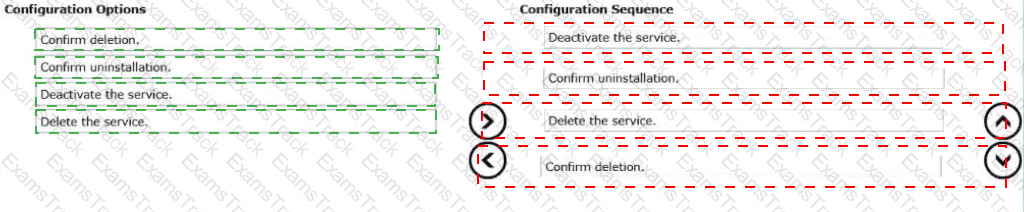

Configuration Sequence (in order):

Deactivate the service.

Confirm uninstallation.

Delete the service.

Confirm deletion.

Uninstalling a Supervisor Service cleanly follows a “stop/remove/cleanup” pattern to avoid orphaned components and to ensure the Supervisor isn’t still reconciling the service while you remove it. First, youDeactivate the serviceso the Supervisor stops managing and running the Harbor service components. This prevents new service resources from being created while you are attempting to remove them and allows the platform to transition the service into a non-operational state safely.

Next, youConfirm uninstallationto initiate the removal workflow. This step acknowledges that the service’s deployed components (such as pods, controllers, and any associated objects) will be removed from the Supervisor-managed environment. After the uninstall workflow is initiated and the service is no longer active, you proceed toDelete the serviceto remove the Harbor service registration/entry from the Supervisor Services list, ensuring it is no longer available to namespaces or consumers. Finally, youConfirm deletionas the last safeguard, since deletion is typically destructive and removes the service definition from the environment’s available services catalog.

In a Kubernetes-based architecture like the vSphere Kubernetes Service (VKS) within VMware Cloud Foundation (VCF) 9.0, a StorageClass manifest serves as the definition for dynamic volume provisioning. The provisioner field is the mandatory attribute that determines which specific volume plugin or driver is invoked to create the underlying storage resource. In the provided exhibit, the string provisioner: kubernetes.io/aws-ebs specifies that the AWS Elastic Block Store (EBS) driver is the orchestrator for the lifecycle of the volumes associated with this class.

In a standard on-premises VCF 9.0 deployment, the provisioner field typically points to csi.vsphere.vmware.com, identifying the vSphere Container Storage Interface (CSI) driver. This driver acts as the translator between Kubernetes PersistentVolumeClaims (PVCs) and vSphere’s Cloud Native Storage (CNS) layer. The other fields in the manifest serve supporting roles: name provides a reference for the StorageClass, parameters (such as type: gp2) pass configuration-specific details to the driver, and reclaimPolicy determines what happens to the data once a claim is deleted. However, only the provisioner field defines the " who " of the operation—the actual software driver responsible for communicating with the storage array or cloud provider to provision the physical or virtual disk. Understanding this distinction is critical for administrators managing hybrid-cloud workloads where different provisioners are used across diverse infrastructure backends.
