When a container repeatedly crashes (CrashLoopBackOff), the most direct way to capture what the application emitted right before termination is to retrieve the container logs. In Kubernetes, application output written toSTDOUTandSTDERRis captured by the container runtime logging mechanism and exposed through the Kubernetes API for retrieval. The kubectl logs command is designed specifically for this purpose: it fetches the log stream for a pod (and container, if multiple exist), allowing administrators to review the runtime messages that typically explain configuration errors, missing dependencies, failed probes, authentication problems, or other causes of the crash loop. This aligns with VMware operational guidance that uses kubectl to retrieve pod-level operational information and logs as part of troubleshooting Kubernetes functionality running on vSphere.

VCF 9.0 states that you can provision Kubernetes clusters using both GUI and CLI approaches, and it explicitly calls out the CLI clients: “the VCF CLI and kubectl provide command-line interfaces for provisioning Kubernetes clusters.” That directly maps tokubectl (A)andVCF CLI (E)as supported clients for provisioning and lifecycle operations. Separately, VCF 9.0 explains that vSphere administrators can “manage and monitor vSphere Pods, VMs, and VKS clusters by using the vSphere Client,” which corresponds tovSphere UI (C)in the question. In addition, the vSphere Client is used to access Supervisor-facing self-service interfaces (for example, the Local Consumption Interface through the vSphere Client), reinforcing vSphere UI as an operational entry point for managing Supervisor-backed services and workloads.

By contrast,Cluster APIis a controller framework (not an operator “client” for admins in this context), andesxtop/esxcliare ESXi host tools that do not represent the documented, supported interfaces for provisioning and managing VKS clusters at the Kubernetes service layer.

VCF 9.0 explains that VKS releases are distributed throughcontent libraries, and that when you configure asubscribed content libraryyou can choose how content is downloaded and synchronized. Critically for constrained storage sites, the documentation states you can selecton-demand (“when needed”)download so thatonly the metadatais synchronized, and theactual image content is not downloadeduntil you explicitly need it—“as a result storage space is saved.”

This directly addresses the problem of a remote site with minimal datastore capacity: choosingWhen neededprevents the subscribed library from immediately caching all published VKS images locally. The vSphere content library guidance reinforces this behavior: with “download contents only when needed,” the system synchronizesmetadata only, which “saves storage space,” and you download a specific item’s content only when you synchronize that item for use.

Therefore, selectingDownload content → When neededis the correct action to avoid consuming all available datastore space.

Configuration Order (in order):

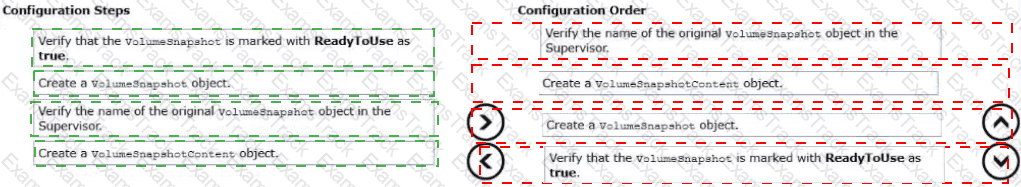

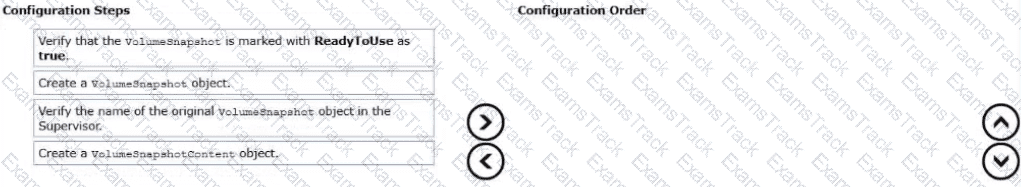

Verify the name of the original VolumeSnapshot object in the Supervisor.

Create a VolumeSnapshotContent object.

Create a VolumeSnapshot object.

Verify that the VolumeSnapshot is marked with ReadyToUse as true.

Apre-provisioned snapshotworkflow means the snapshot already exists at the Supervisor/storage layer, and you are “importing” it into Kubernetes by creating the Kubernetes objects that reference it. That’s why the first step is toidentify/verify the exact snapshot nameas it exists in the Supervisor context—this is the authoritative identifier you must point to when you create Kubernetes snapshot metadata. Next, you create theVolumeSnapshotContentobject, which represents theactual snapshot on the storage backendand includes the handle/reference to that pre-existing snapshot. With the content object in place, you then create theVolumeSnapshotobject, which is theuser-facing Kubernetes object(namespaced) that binds to the pre-provisioned VolumeSnapshotContent (either explicitly or via binding rules). Finally, you validate the outcome by checking that theVolumeSnapshot shows ReadyToUse: true, confirming the binding succeeded and Kubernetes can use the snapshot for restore/clone workflows.

In VMware Cloud Foundation 9.0 and vSphere Supervisor architectures, the decision to deploy aSingle-Zoneor aMulti-ZoneSupervisor is made at the time ofinitial enablement. A Single-Zone Supervisor is tied to a specific vSphere Cluster. A Multi-Zone Supervisor requires a minimum of three vSphere Zones (each mapped to a cluster) to be defined before the Supervisor is deployed so that the Control Plane VMs can be distributed for high availability.

Currently, there is no supported " in-place " migration path to convert a deployed Single-Zone Supervisor into a Multi-Zone Supervisor by simply adding zones later. If an organization requires the high availability provided by a three-zone architecture, the administrator must decommission the existing Single-Zone Supervisor and then re-enable the Supervisor Service using the Multi-Zone configuration wizard. This design ensures that the underlying Kubernetes Control Plane components are correctly instantiated with the necessary quorum and anti-affinity rules that can only be established during the initial " Workload Management " setup phase.

Answer (Correct Order):

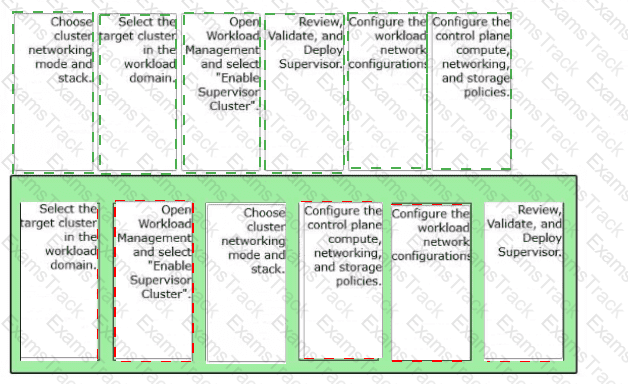

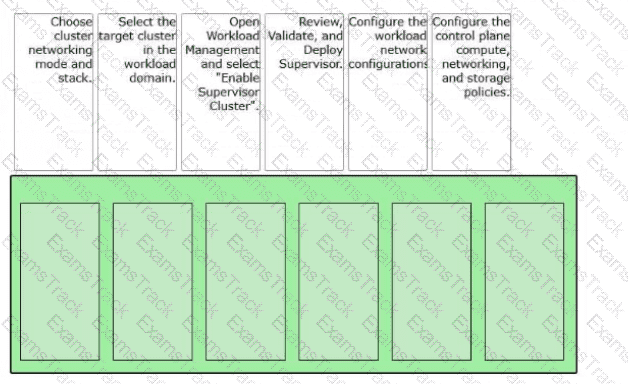

Select the target cluster in the workload domain.

Open Workload Management and select “Enable Supervisor Cluster”.

Choose cluster networking mode and stack.

Configure the control plane compute, networking, and storage policies.

Configure the workload network configurations.

Review, Validate, and Deploy Supervisor.

You start by selecting theexact vSphere cluster(in the workload domain) that will host the Supervisor, because Supervisor enablement is performedagainst a specific cluster. From there you launch the enablement workflow inWorkload Management(“Enable Supervisor Cluster”). Early in the wizard you must decide thenetworking mode(for example, VDS-based vs NSX-backed) and theIP stack, because those choices drive the remaining configuration screens and what inputs are required. Next you define theSupervisor control plane settings—compute sizing and the core policies the Supervisor will use (including storage policy selections and related defaults). After the control plane foundation is defined, you configure theworkload networkingused by namespaces and Kubernetes workloads (IP ranges, routing/LB integration depending on the selected mode). Finally, youreview/validateall inputs anddeployso the platform can create and configure the Supervisor control plane and supporting components.

In Kubernetes RBAC, cluster-wide permissions are defined withClusterRoleand granted to a user, group, or service account by creating aClusterRoleBinding. The VCF 9.0 documentation for VKS cluster access describes the RBAC workflow used to grant access: first you “define a Role or ClusterRolefor the user or group,” and then you “create a RoleBinding or ClusterRoleBindingfor the user or group and apply it to the cluster.” This wording reflects the RBAC distinction:RoleBindingis scoped to a namespace, whereasClusterRoleBindingis used when the permissions must apply at thecluster scope(cluster-wide resources and/or across namespaces).

VCF 9.0 further illustrates the purpose of ClusterRoleBinding in a token-auth example: it lists the required objects, including “ClusterRole: This defines the access to the Kubernetes cluster” and “ClusterRoleBinding: This binds the created Service Account with the defined ClusterRole.” That binding step is what grants the subject the cluster-level privileges defined in the ClusterRole, makingClusterRoleBindingthe correct object for permissions to cluster-wide resources.

In a vSphere Kubernetes Service (VKS) environment, resource management follows aDeclarative Model. When an administrator uses kubectl edit deployment to manually scale a running workload from 5 to 10 replicas, they are modifying thelive stateof the deployment. However, thesource of truthfor a Tanzu Kubernetes cluster in VCF 9.0 is theCluster YAML specificationmaintained by the Cluster API (CAPI) provider within the Supervisor.

If the administrator redeploys the cluster or if the Supervisor’s controller performs a reconciliation loop, it refers back to the original configuration file. If that cluster YAML file still defines the replica count as 5, the Supervisor will terminate the 5 " extra " pods to match the desired state defined in the configuration. This is a common administrative pitfall; for changes to be persistent across redeployments or updates in VCF 9.0, the underlying manifest (the " Desired State " ) must be updated. Manually editing the live object only provides a temporary change that will be overwritten during the next synchronization or lifecycle event because the cluster YAML file was not updated to reflect the requested increase.

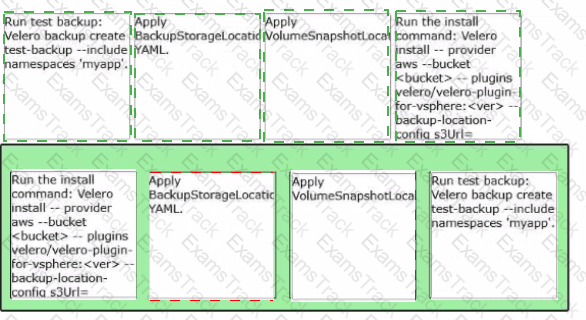

Answer (Correct Order):

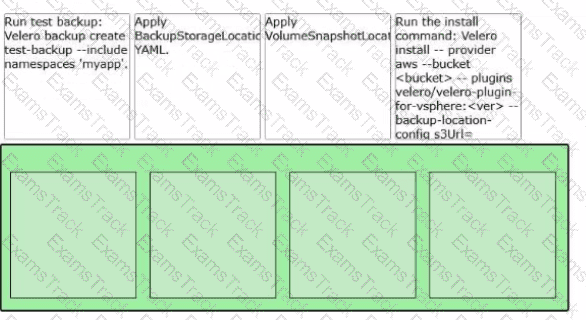

Run the install command:velero install … --provider aws --bucket < bucket > … --plugins … --backup-location-config …

Apply BackupStorageLocation YAML.

Apply VolumeSnapshotLocation YAML.

Run test backup:velero backup create test-backup --include-namespaces " myapp1 "

The correct sequence follows Velero’s operational model: install the Velero components first, then define where backups and snapshots are stored, and finally validate with a real backup. In VCF 9.0, the Velero Plugin for vSphere installation command includes parameters for the object-store provider, bucket, and plugin images, which establishes the Velero control plane in the target namespace and prepares it to communicate with an S3-compatible store.

After the installation is in place, you apply theBackupStorageLocationconfiguration so Velero has a durable destination for Kubernetes backup metadata in the object store. This aligns with the VCF 9.0 guidance that backups upload Kubernetes metadata to the object store and require S3-compatible storage for backup/restore workflows.

Next, apply theVolumeSnapshotLocationso Velero knows how and where to create/track volume snapshots for stateful workloads. The VCF 9.0 install example explicitly includes snapshot/backup location configuration parameters, reflecting that both must be set for complete protection.

Finally, run a test backup scoped to the namespace (--include-namespaces=my-namespace) to confirm end-to-end functionality.

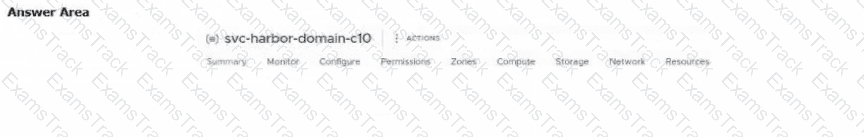

Storage

Resources

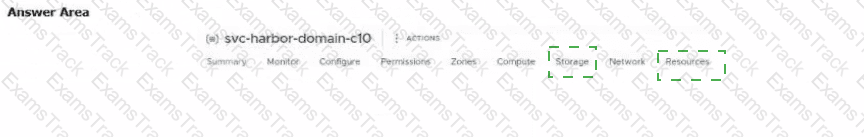

When a stateful pod (like Harbor’s database) is stuck Pending/ContainerCreating or repeatedly failing to attach/mount storage, one of the first checks is whether the PVC’sAccess Modesmatch what the workload and backing storage support (for example, ReadWriteOnce vs ReadWriteMany). In Kubernetes, the PVC and PV explicitly showAccess Modes(for example Access Modes: RWO) when you inspect them.

In the vSphere Namespace UI, theStoragetab is where namespace storage is managed and reviewed (including storage policy assignments that back storage classes/PVCs), making it the natural place to validate the storage configuration being consumed by the Harbor database PVC. VMware’s VCF documentation directs administrators to navigate to a namespace and use theStoragetab for storage-related settings.

TheResourcestab is the Kubernetes-object oriented view for the namespace, where you can locate the PVC object associated with the failing pod and inspect its properties/YAML (including the requested storage class and access mode intent). Namespace permissions explicitly include the ability to view Kubernetes resources within the namespace, which aligns with checking PVC details there.
