To create an instance of Azure Application Insights namedaz400-38443478-mainand configure it to receive telemetry data from an Azure web app with the same name, you’ll need to follow these steps:

Create a Log Analytics Workspace:

Go to theAzure Portal.

Search for Log Analytics Workspaces and select Add.

Select a Subscription and either use an existing Resource Group or create a new one.

Provide a unique name for your Log Analytics workspace.

Choose the Region that is appropriate for you.

Review the settings and then selectCreate1.

Create an Azure Application Insights Instance:

In the Azure Portal, navigate to Application Insights.

Click on + Create.

Fill in the instance details, ensuring the name isaz400-38443478-main.

Link the instance to the Log Analytics workspace you created in the previous step.

Review and create the Application Insights instance2.

Configure the Azure Web App to Send Telemetry Data:

Go to the Azure Web Appaz400-38443478-main.

Under Monitoring, selectApplication Insights.

Choose to use an existing resource and select the Application Insights instance you created.

Follow the prompts to set up the connection, which may involve adding the appropriate SDK to your web app and configuring the connection string or instrumentation key.

Verify Telemetry Data Reception:

After setting up, send some test traffic to your web app.

Then, go to the Application Insights instance and check the Overview or Performance sections to see if telemetry data is being received.

Remember to replace placeholder names with the actual names of your resources where necessary. These steps will help you set up Azure Application Insights to monitor your web app effectively.

Step 1: Create a Project Wiki

Navigate to Azure DevOps:

Go to Azure DevOps and sign inwith your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Create a Wiki:

In the left-hand menu, select Wiki.

Click on Create project wiki.

Enter the name Wiki1 and click Create.

Step 2: Add Mermaid Syntax to Render a Diagram

Open the Wiki Page:

Navigate to the newly created Wiki1.

Edit the Wiki Page:

Click on Edit to start editing the wiki page.

Insert Mermaid Diagram:

Use the following Mermaid syntax to render a diagram. For example, to render a simple flowchart, you canuse:

```mermaid

graph TD;

A-->B;

A-->C;

B-->D;

C-->D;

Save the Page:

Click on Save to save your changes.

Step 3: Render the TCP Handshake Diagram

Convert TCPHandshake.png to Mermaid Syntax:

Since you have a sample diagram in C:\Resources\TCPHandshake.png, you need to convert this diagram into Mermaid syntax. Here’s an example of how a TCP handshake might look in Mermaid syntax:

```mermaid

sequenceDiagram

participant Client

participant Server

Client->>Server: SYN

Server-->>Client: SYN-ACK

Client->>Server: ACK

Add the Diagram to the Wiki:

Replace the sample Mermaid syntax with the TCP handshake diagram syntax in the wiki page.

Save the Page:

Click on Save to save your changes.

By following these steps, you will have created a project wiki named Wiki1 and used Mermaid syntax to render a diagram

Step 1: Initialize the Default Main Branch

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Initialize theMain Branch:

Go to Repos > Files.

If the main branch does not exist, you will see an option to initialize it. Click on Initialize and follow the prompts to create the main branch1.

Step 2: Create a New Branch for the Pipeline

Navigate to Branches:

Go to Repos > Branches.

Click on New branch.

Create the Branch:

Enter azure-pipelines as the branch name.

Select main as the base branch.

Click Create2.

Step 3: Create a New Azure Pipelines YAML Pipeline

Navigate to Pipelines:

Go to Pipelines > New pipeline.

Select the Repository:

Choose Azure Repos Git and select the relevant repository.

Configure the Pipeline:

Select Starter pipeline.

Replace the default YAML with the ASP.NET template. You can find the ASP.NET template in the Azure Pipelines documentation oruse the following example:

trigger:

- main

pool:

vmImage: 'windows-latest'

variables:

buildConfiguration: 'Release'

steps:

- task: UseDotNet@2

inputs:

packageType: 'sdk'

version: '5.x'

installationPath: $(Agent.ToolsDirectory)/dotnet

- script: |

dotnet build --configuration $(buildConfiguration)

displayName: 'Build project'

- script: |

dotnet test --no-build --configuration $(buildConfiguration)

displayName: 'Run tests'

Save the Pipeline:

Click on Save and enter azure-pipelines as the branch name.

Click on Save and run to save the pipeline to the new branch named azure-pipelines3.

By following these steps, you will have successfully initialized the main branch, created a new branch named azure-pipelines, and set up a new Azure Pipelines YAML pipeline using the ASP.NET template

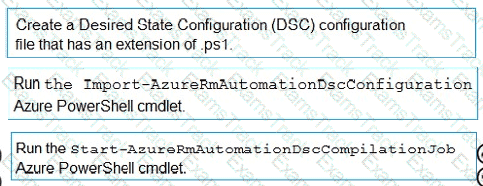

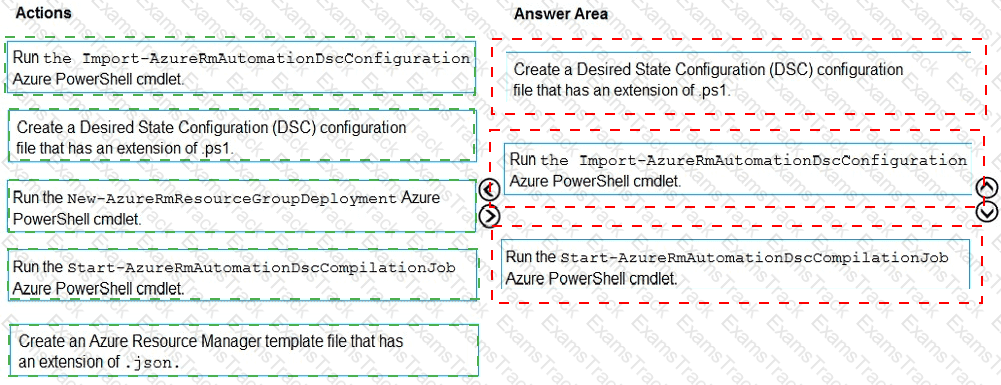

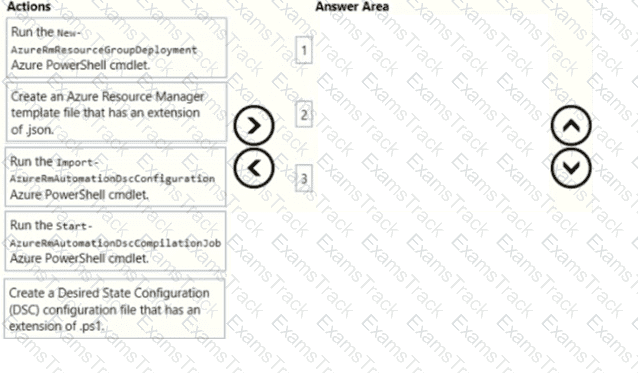

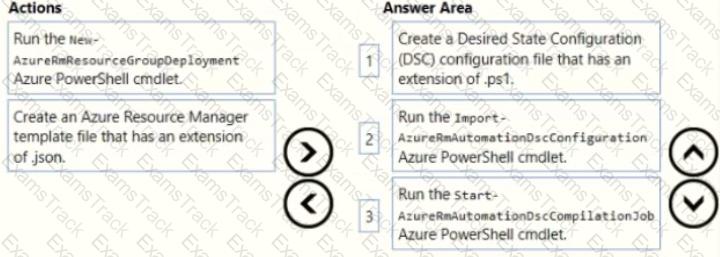

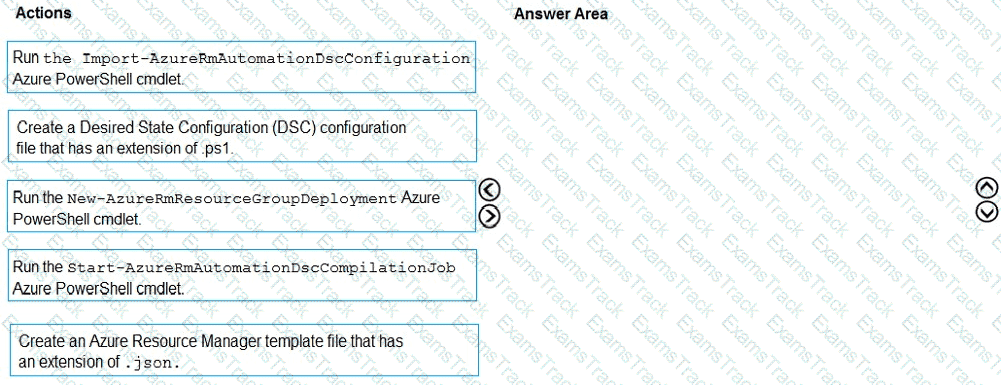

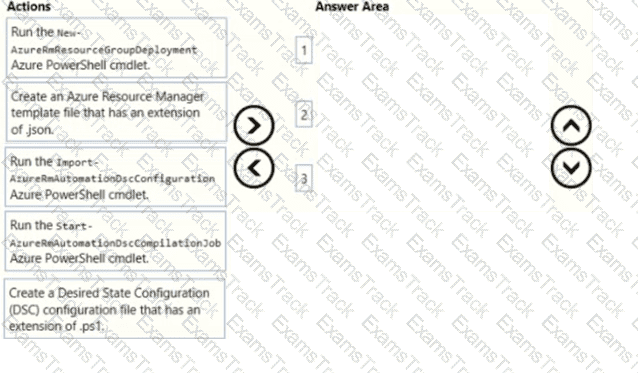

Step 1: Create a Desired State Configuration (DSC) configuration file that has an extension of .ps1.

Step 2: Run the Import-AzureRmAutomationDscConfiguration Azure Powershell cmdlet

TheImport-AzureRmAutomationDscConfiguration cmdlet imports an APS Desired State Configuration (DSC) configuration into Azure Automation. Specify the path of an APS script that contains a single DSC configuration.

Example:

PS C:\>Import-AzureRmAutomationDscConfiguration -AutomationAccountName "Contoso17"-ResourceGroupName "ResourceGroup01" -SourcePath "C:\DSC\client.ps1" -Force

This command imports the DSC configuration in the file named client.ps1 into the Automation account named Contoso17. The command specifies the Force parameter. If there is an existing DSC configuration, this command replaces it.

Step 3: Run the Start-AzureRmAutomationDscCompilationJob Azure Powershell cmdlet

The Start-AzureRmAutomationDscCompilationJob cmdlet compiles an APS Desired State Configuration (DSC) configuration in Azure Automation.

To ensure that the webhook athttps://contoso.com/statushookis called every time the repository namedaz40038443478acr1receives a new version of an image nameddotnetapp, you can follow these steps to configure a webhook in Azure Container Registry:

Navigate to the Azure Container Registry:

Go to the Azure Portal.

Find and select yourAzure Container Registry instanceaz40038443478acr1.

Create a New Webhook:

UnderServices, selectWebhooks.

Click on+ Addto create a new webhook.

Fill in the form with the following information:

Webhook name: Enter a unique name for your webhook.

ServiceURI: Enterhttps://contoso.com/statushook.

Custom headers: (Optional) Add any headers you want to pass along with the POST request.

Trigger actions: SelectPushto trigger the webhook on image push events.

Scope: Specify the scope asaz40038443478acr1:dotnetappto target the specific image.

Status: Set toEnabled.

Save the Webhook Configuration:

Review the information and clickCreateto save the webhook.

Once configured, the webhook will send a POST request tohttps://contoso.com/statushookwhenever a new version of thedotnetappimage is pushed to theaz40038443478acr1repository in your Azure Container Registry1.

This setup will automate the notification process, ensuring that the specified webhook is called with each new image version, thus fulfilling the task requirements.

Scenario:

Scenario:

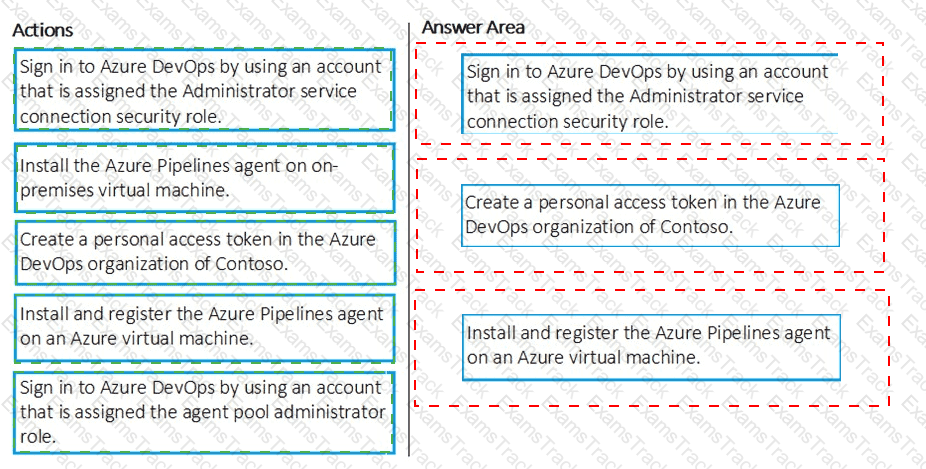

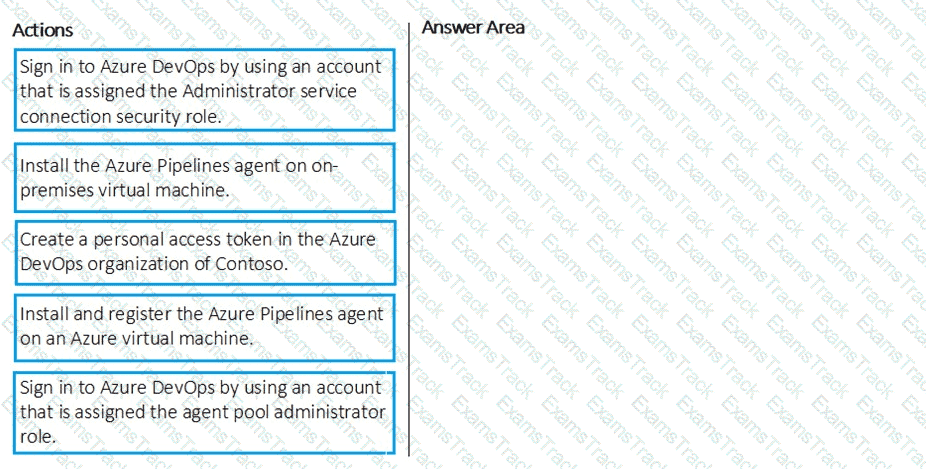

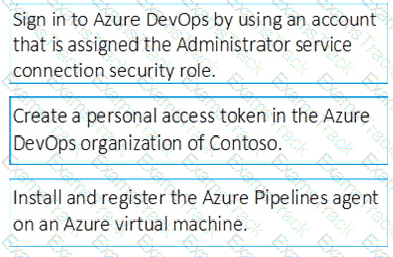

Step 1: Sign in to Azure Develops by using an account that is assigned the Administrator service connection security role.

Note: Under Agent Phase, click Deploy Service Fabric Application. Click Docker Settings and then click Configure Docker settings. In Registry Credentials Source, select Azure Resource Manager Service Connection. Then select your Azure subscription.

Step 2: Create a personal access token..

A personal access token or PAT is required so that a machine can join the pool created with the Agent Pools (read, manage) scope.

Step 3: Install and register the Azure Pipelines agent on an Azure virtual machine.

By running a Azure Pipeline agent in thecluster, we make it possible to test any service, regardless of type.

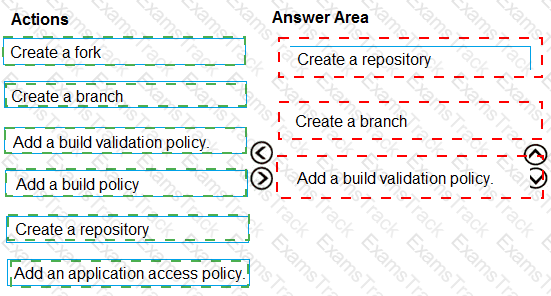

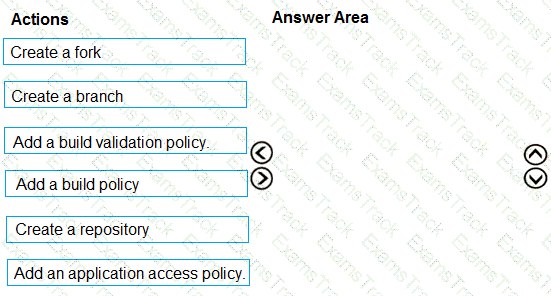

Step 1: Createa repository

A Git repository, or repo, is a folder that you've told Git to help you track file changes in. You can have any number of repos on your computer, each stored in their own folder.

Step 2: Create a branch

Branch policies help teams protect their important branches of development. Policies enforce your team's code quality and change management standards.

Step 3: Add a build validation policy

When a build validation policy is enabled, a new build is queued when a new pull request is created or when changes are pushed to an existing pull request targeting this branch. The build policy then evaluates the results of the build to determine whether the pull request can be completed.

Scenario:

Implement a code flow strategy for Project2 that will:

Enable Team2 to submit pull requests for Project2.

Enable Team2 to work independently on changes to a copy of Project2.

Ensure that any intermediary changes performed by Team2 on a copy of Project2 will be subject to the same restrictions as the ones defined in the build policy of Project2.

The first thing to do is to declare your Sonar Qube server as a service endpoint in your VSTS/DevOps project settings.
