Free Microsoft AZ-400 Practice Exam with Questions & Answers | Set: 2

Step1: Create a New Team Dashboard

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Dashboards:

In the left-hand menu, select Dashboards.

Create a New Dashboard:

Click on New Dashboard.

Enter the name Dashboard1.

Ensure the dashboard type is set to Team Dashboard.

Click Create.

Step 2: Add the Team Members Widget

Open the Widget Catalog:

After creating the dashboard, thewidget catalog will open automatically. If it doesn’t, click on Add Widget.

Search for Team Members Widget:

In the widget catalog, search for Team Members.

Add the Widget:

Click on the Team Members widget and then click Add to place it on your dashboard.

Configure the Widget:

Once added, you can resize and move the widget to your preferred location on the dashboard.

Step 3: Save and Share the Dashboard

Save the Dashboard:

Click on Save to save your changes.

Share the Dashboard:

You can share the dashboardURL with your team members or set permissions to control who can view or edit the dashboard.

By following these steps, you will have a new team dashboard named Dashboard1 that displays the members of the default project team for Project1

Step 1: Navigate to the Project1 Repository

In your browser, go to your Azure DevOps organization : https://dev.azure.com/{YourOrganizationName}

In the left menu, select the project named Project1 .

In the left menu under Repos , click on Files .

Step 2: Initialize the Main Branch (if it doesn’t exist)

If the main branch doesn’t exist (because the repo is empty):

In the Repos > Files view, you’ll see a message: “This repository is empty.”

Click on the Initialize button.

Choose the default branch name as main and create a README file (or any file to initialize).

Click Initialize .

This creates the main branch in your repository.

Step 3: Set Up Branch Protection for the Main Branch

Branch protection ensures that all changes go through a pull request (PR), and that PRs are linked to work items (for traceability).

In the Repos view, click on Branches in the left menu.

Locate the main branch in the list.

Click on the three dots ( ... ) next to main and select Branch policies .

Step 4: Configure Branch Policies for main

In the Branch policies for the main branch:

Require a minimum number of reviewers :

Enable this option and set to 1 or more as per your team’s standards.

Check for linked work items :

Enable the Check for linked work items option.

This ensures that every PR has at least one linked work item.

Require a linked work item :

This enforces the traceability requirement you mentioned.

Optionally, you can also:

Enable build validation if you have a pipeline to validate builds.

Enforce merge strategies (like squash merge).

Click Save changes at the bottom.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.

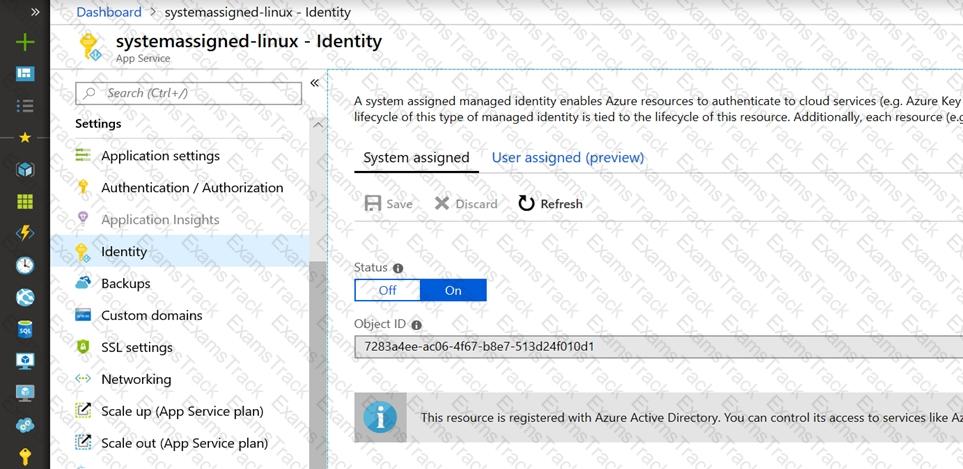

1. In Azure portal navigate to the az400-9940427-main app.

2. Scroll down to the Settings groupin the left navigation.

3. Select Managed identity.

4. Within the System assigned tab, switch Status to On. Click Save.

Step 1: Navigate to Personal Access Tokens

Sign in to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Access User Settings:

Click on your profile picture in the top right corner.

Select User settings.

Open Personal Access Tokens:

In the user settings menu, select Personalaccess tokens.

Step 2: Create a New Personal Access Token

Create a New Token:

Click on + New Token.

Configure the Token:

Name: Enter Token1.

Organization: Select the organization where you want to use the token.

Expiration: Set the expiration to 60 days.

Set Scopes:

Code: Select Read, Write, & Manage.

Build: Select Read & Execute.

Release: Select Read.

Create the Token:

Click on Create.

Step 3: Save the Token

Copy the Token:

Once the token is created, copy it immediately as it will not be displayed again.

Store the token in a secure location.

By following these steps, you will have successfully created a personal access token named Token1 with the specified capabilities and a 60-day expiration
