Free Microsoft AZ-104 Practice Exam with Questions & Answers | Set: 4

D: Seamless SSO works with any method of cloud authentication - Password Hash Synchronization or Pass-through Authentication, and can be enabled via Azure AD Connect.

B: You can gradually roll out Seamless SSO to your users. You start by adding the following Azure AD URL to all or selected users' Intranet zone settings by using Group Policy in Active Directory: https://autologon.microsoftazuread-sso.com

Every Azure AD directory comes with an initial domain name in the form of domainname.onmicrosoft.com. The initial domain name cannot be changed or deleted, but you can add your corporate domain name to Azure AD as well. For example, your organization probably has other domain names used to do business and users who sign in using your corporate domain name. Adding custom domain names to Azure AD allows you to assign user names in the directory that are familiar to your users, such as ‘alice@contoso.com.’ instead of 'alice@domain name.onmicrosoft.com'.

Scenario:

Network Infrastructure: Each office has a local data center that contains all the servers for that office. Each office has a dedicated connection to the Internet.

Humongous Insurance has a single-domain Active Directory forest named humongousinsurance.com

Planned Azure AD Infrastructure: The on-premises Active Directory domain will be synchronized to Azure AD.

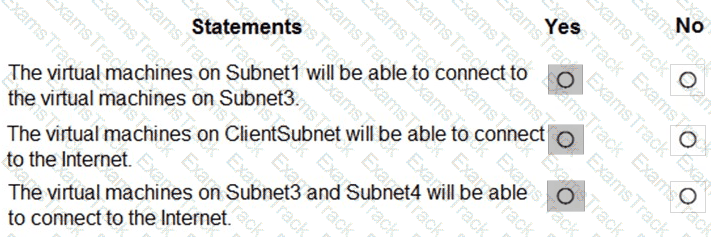

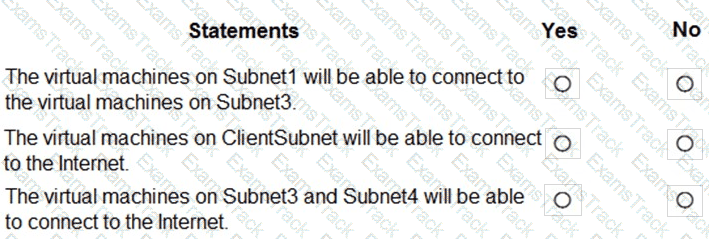

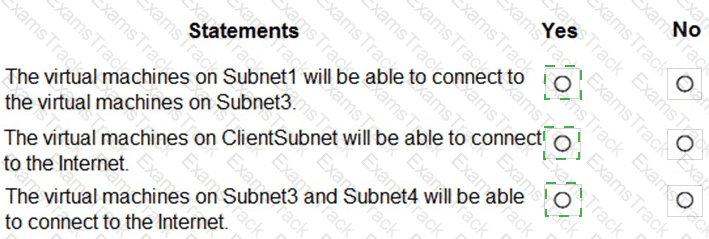

Once the VNets are peered, all resources on one VNet can communicate with resources on the other peered VNets. You plan to enable peering between Paris-VNet and AllOffices-VNet. Therefore VMs on Subnet1, which is on Paris-VNet and VMs on Subnet3, which is on AllOffices-VNet will be able to connect to each other.

All Azure resources connected to a VNet have outbound connectivity to the Internet by default. Therefore VMs on ClientSubnet, which is on ClientResources-VNet will have access to the Internet; and VMs on Subnet3 and Subnet4, which are on AllOffices-VNet will have access to the Internet.

Scenario: Licensing Issue

1. You attempt to assign a license in Azure to several users and receive the following error message: "Licenses not assigned. License agreement failed for one user."

2. You verify that the Azure subscription has the available licenses.

Solution:

License cannot be assigned to a user without a usage location specified.

Some Microsoft services aren't available in all locations because of local laws and regulations. Before you can assign a license to a user, you must specify the Usage location property for the user. You can specify the location under the User > Profile > Settings section in the Azure portal.

Every Azure AD directory comes with an initial domain name in the form of domainname.onmicrosoft.com.

The initial domain name cannot be changed or deleted, but you can add your corporate domain name to Azure AD as well. For example, your organization probably has other domain names used to do business and users who sign in using your corporate domain name. Adding custom domain names to Azure AD allows you to assign user names in the directory that are familiar to your users, such as ‘alice@contoso.com.’ instead of 'alice@domain name.onmicrosoft.com'.

Scenario:

Network Infrastructure: Each office has a local data center that contains all the servers for that office. Each office has a dedicated connection to the Internet.

Humongous Insurance has a single-domain Active Directory forest named humongousinsurance.com

Planned Azure AD Infrastructure: The on-premises Active Directory domain will be synchronized to Azure AD.

To determine which virtual machines can be encrypted, we must refer to the technical requirement:

“Whenever possible, use Azure Disk Encryption and a key encryption key (KEK) to encrypt the virtual machines.”

According to the Microsoft Azure Administrator documentation, Azure Disk Encryption (ADE) uses BitLocker for Windows virtual machines and DM-Crypt for Linux virtual machines to encrypt OS and data disks. However, not all VM types and disk configurations are supported for ADE.

From the provided configuration:

VM

OS

Description

Disk Type

VM1

RHEL

Uses ephemeral OS disks

❌ Not supported

VM2

Windows Server 2022

Has a basic volume

✅ Supported

VM3

RHEL

Uses standard SSDs

✅ Supported by DM-Crypt, but not optimal

VM4

Windows Server 2022

Uses Write Accelerator disks

✅ Supported

VM5

Windows Server 2022

Has a dynamic volume

❌ Not supported by ADE

Step-by-step Analysis (Based on Microsoft Docs):

Ephemeral OS disks (VM1):

These are not compatible with Azure Disk Encryption because they are stored on local temporary storage and are not persisted to Azure Storage.

“Ephemeral OS disks cannot be encrypted using Azure Disk Encryption because they reside on local VM storage.” — [Microsoft Learn: Azure Disk Encryption prerequisites]

Dynamic volumes (VM5):

Azure Disk Encryption does not support dynamic disks — only basic disks are supported.

“Azure Disk Encryption does not support dynamic disks; only basic disks can be encrypted.” — [Microsoft Learn: ADE limitations]

Write Accelerator disks (VM4):

These disks can be encrypted if they are standard OS/data disks with Write Accelerator enabled. Microsoft confirms that ADE supports Write Accelerator–enabled disks on supported VM sizes.

Linux VMs (VM3) with standard SSDs can use DM-Crypt encryption, but in this question, the requirement specifies to use Azure Disk Encryption with a Key Encryption Key (KEK) — KEKs are supported only for Windows and Linux VMs that use managed disks and not ephemeral disks.

However, VM3 uses standard SSDs (supported by ADE) and VM2 and VM4 meet the technical requirement of using ADE with KEK, but Azure prefers Windows VMs for KEK integration because of BitLocker integration and Key Vault support.

Therefore, the verified supported VMs for Azure Disk Encryption with KEK are:

✅ VM2 (Windows Server 2022, basic volume)

✅ VM4 (Windows Server 2022, Write Accelerator disks)

Supporting Microsoft Documentation (Extracted):

“Azure Disk Encryption helps protect and safeguard your data to meet your organizational security and compliance commitments. It uses BitLocker for Windows VMs and DM-Crypt for Linux VMs.”

“ADE is not supported on ephemeral OS disks or dynamic disks.”

“You can use Key Encryption Keys (KEK) from Azure Key Vault for an added layer of security.”

(Source: Microsoft Learn – Azure Disk Encryption Overview, Prerequisites, and Supported Configurations for Windows and Linux VMs)

To meet the technical requirement — “Use TLS for WebApp1” — the web app must be configured with a certificate that is compatible with Azure App Service for HTTPS/TLS binding.

According to the Microsoft Azure Administrator documentation on App Service Certificates and Key Vault integration, the following key points determine which certificates can be used:

Supported Certificate Format:Azure App Service supports importing certificates in PFX (PKCS #12) format, which includes both the public and private keys necessary for TLS/SSL binding.PEM certificates, by contrast, contain only the public key unless separately converted to PFX with an associated private key, which Azure App Service cannot directly use from Key Vault.

Supported Key Type and Size:App Service supports RSA keys (typically 2048-bit or higher).Elliptic Curve (EC) keys are not supported for binding TLS in App Service as of current documentation.

Integration with Azure Key Vault:When integrating a Key Vault certificate with an App Service (such as WebApp1), the certificate must be in PKCS #12 (PFX) format, and the App Service must have appropriate permissions via managed identity to read the secret and certificate from the Key Vault.

From the Vault1 data provided in your scenario:

Name

Content type

Key type

Key size

Cert1

PKCS #12

RSA

2048

Cert2

PKCS #12

RSA

4096

Cert3

PEM

RSA

2048

Cert4

PEM

RSA

4096

Analysis:

Cert1 and Cert2 are PKCS #12 certificates, so both contain the private key required for TLS.

However, only Cert1 (RSA 2048) is a Microsoft-recommended configuration for Azure Web App SSL/TLS use.

Cert2 has a 4096-bit RSA key. Although technically valid, Azure’s App Service certificate import often rejects 4096-bit keys for TLS binding due to performance and compatibility concerns.

Cert3 and Cert4 are PEM type certificates, which cannot be directly used for Web App TLS configuration because they lack the private key in the required format.

Therefore, according to the Azure Administrator Exam Study Guide and Microsoft official documentation, the only valid certificate that meets the requirements is:

✅ Cert1 only

Final Verified Answer: ✅ A. Cert1 only

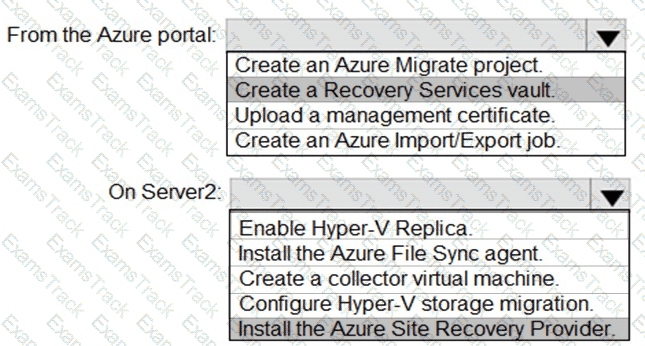

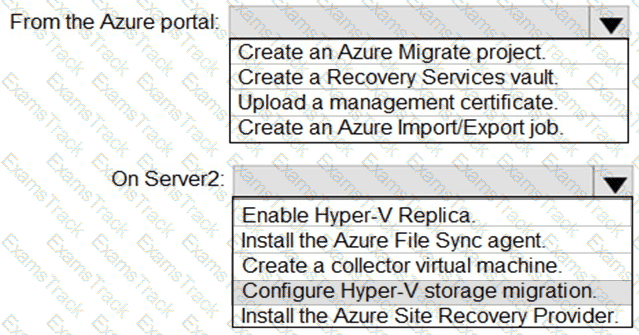

Box 1: Create a Recovery Services vault

Create a Recovery Services vault on the Azure Portal.

Box 2: Install the Azure Site Recovery Provider

Azure Site Recovery can be used to manage migration of on-premises machines to Azure.

Scenario: Migrate the virtual machines hosted on Server1 and Server2 to Azure.

Server2 has the Hyper-V host role.

To enable communication between virtual machines (VMs) located in different virtual networks (VNets) in Azure, the most efficient and recommended approach—according to Microsoft Azure Administrator documentation—is to use VNet peering.

1. Background and Scenario Analysis

From the case study:

VM1 and VM4 are located in different VNets (VNET1 and VNET3).

The requirement is to ensure that VM1 can communicate with VM4.

The solution must minimize administrative effort and cost.

2. Microsoft Documentation Insight: VNet Peering

According to Microsoft Learn: “Virtual network peering”:

“Virtual network peering seamlessly connects two Azure virtual networks. The virtual networks appear as one for connectivity purposes. Traffic between peered virtual networks uses private IP addresses, as if they were part of the same network, and the traffic stays entirely on the Microsoft backbone network.”

Key characteristics of VNet peering:

Enables private IP connectivity between resources across peered VNets.

No need to deploy or maintain gateways (unlike VPN gateways).

Provides low latency and high bandwidth.

Supports transitive routing through additional configurations.

Minimal administrative overhead — peering can be created with just a few clicks or PowerShell/CLI commands.

3. Why the Other Options Are Incorrect

A. Create a user-defined route (UDR) from VNET1 to VNET3.

❌ A UDR alone cannot enable connectivity between VNets unless a gateway or peering already exists. Without a connection path, a route has no effect.

B. Assign VM4 an IP address of 10.0.1.5/24.

❌ This would attempt to place VM4 in the same subnet as VM1, but cross-VNet subnet IP assignment is not possible in Azure. Each VNet has its own isolated address space.

D. Create an NSG and associate it with VM1 and VM4.

❌ Network Security Groups control traffic filtering within or between existing network connections. They do not create connectivity between isolated VNets.

4. Why Peering Is the Correct and Simplest Solution

Establishing VNet peering between VNET1 and VNET3 will:

Instantly enable bidirectional private IP communication between VM1 and VM4.

Minimize administrative effort (no gateways, routing tables, or IP reconfiguration).

Maintain security and performance through Microsoft’s internal backbone.

Avoid additional costs compared to deploying VPN gateways.

5. Implementation Summary

Steps to configure:

In the Azure Portal, go to VNET1 → Peerings → Add.

Choose VNET3 as the peer virtual network.

Enable Allow virtual network access in both directions.

Once completed, both VMs (VM1 and VM4) will communicate using their private IPs.

Final Verified Answer: ✅ C. Establish peering between VNET1 and VNET3

References (Microsoft Official Documentation):

Microsoft Learn — Virtual network peering overview

Microsoft Learn — Create, change, or delete a virtual network peering

Microsoft Learn — Azure virtual network connectivity options and recommendations

The planned change specifies that you must configure a Data Collection Rule (DCR) to collect only system events with Event ID 4648 from VM2 and VM4.

A Data Collection Rule (DCR) in Azure Monitor defines how data is collected from resources, filtered, and sent to destinations like Log Analytics workspaces. To define or query this data within Azure Monitor Logs or Log Analytics, you use Kusto Query Language (KQL).

From the Microsoft Learn: Azure Monitor Logs Documentation:

“Log queries in Azure Monitor are written in Kusto Query Language (KQL), the same query language used by Azure Data Explorer.”

“KQL is optimized for querying large datasets, filtering by event IDs, sources, and event types.”

Other options:

WQL (WMI Query Language) – used for on-prem Windows event querying, not for Azure DCR.

T-SQL (Transact-SQL) – used for Azure SQL Database queries, not for monitoring data.

XPath – used in Event Viewer or XML-based event filtering, not within Azure Monitor DCR configuration.

Therefore, when you configure DCR1 to collect system events (Event ID 4648) from the specified VMs, the Kusto Query Language (KQL) is the correct and verified method to filter and process these events.

Example of a valid KQL expression for this requirement:

SecurityEvent

| where EventID == 4648

| where Computer in ("VM2", "VM4")

This aligns with the Azure Monitor and Log Analytics query methodology covered in AZ-104 official exam guide (Implement and manage monitoring).
