Free Huawei H13-511_V5.5 Practice Exam with Questions & Answers | Set: 4

In the "Virtualization Basics" section of the Huawei HCIA-Cloud Computing training material, the taxonomy of virtualization components is strictly defined. Statement C is FALSE because the virtualization software layer is technically called the Hypervisor or Virtual Machine Monitor (VMM), not the "Host OS." While a "Host OS" exists in Type-2 (hosted) virtualization (where the hypervisor runs as an application on top of an existing OS like Windows or Linux), the software layer that actually performs the resource abstraction and logical partitioning is the Hypervisor itself.

The other definitions are central to Huawei's technical documentation. AGuest OS(Statement A) is indeed the operating system—such as Windows Server or Ubuntu—that is installed inside a Virtual Machine. It is "unaware" that it is running on virtual hardware. TheHost Machine(Statement B) refers to the underlying physical server (e.g., a Huawei FusionServer Pro) that provides the actual CPU, RAM, and physical NICs. Finally, aGuest Machine(Statement D) is a synonym for a Virtual Machine (VM), representing the logical container that houses the Guest OS and applications.

In a Type-1 virtualization architecture (like HuaweiFusionCompute), the Hypervisor (CNA) sits directly on the hardware. In this scenario, there is no "Host OS" at all, further proving why statement C is incorrect. The Hypervisor is responsible for trapping "privileged instructions" from the Guest OS and translating them into actions on the physical hardware. Correctly identifying these roles—Host Machine, Hypervisor, and Guest VM—is a prerequisite for understanding more advanced cloud features like Resource Clusters and Distributed Resource Scheduling (DRS).

According to the "Network Technology Basics" chapter of the Huawei HCIA-Cloud Computing training materials, the statement provided is FALSE. The fundamental rule for IPv4 subnet masks is that binary 1s represent the network portion (network ID), while binary 0s represent the host portion (host ID). A subnet mask is a 32-bit value that is used in conjunction with an IP address to determine which segment of the address identifies the network and which segment identifies the specific device or host on that network.

This identification process is performed using a bitwise AND operation. When a computer or router compares an IP address to its subnet mask, the bits that align with the "1s" in the mask are preserved to reveal the network address, while the bits that align with the "0s" are ignored for routing purposes but used to identify the individual host. For example, in a standard Class C subnet mask (255.255.255.0), the first 24 bits are all set to 1. This indicates that the first three octets of the IP address are the network prefix. The remaining 8 bits are set to 0, providing a range for up to 254 usable host addresses.

Understanding this distinction is critical for cloud administrators when planning Virtual Private Clouds (VPC) and subnets within Huawei's cloud infrastructure. If the roles of 1s and 0s were reversed, as suggested in the question, the logic of IP routing and address allocation would fail. The official curriculum emphasizes that the subnet mask must consist of a contiguous block of 1s followed by a block of 0s. The length of the 1s (the prefix length) directly dictates how many subnets can be created and how many hosts each subnet can accommodate.

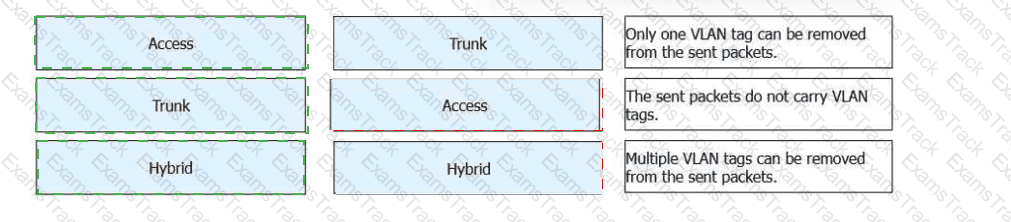

Access Interface

➡The sent packets do not carry VLAN tags.

An access interface belongs to only one VLAN.

Frames are sent untagged, making it suitable for end devices such as PCs and printers.

Trunk Interface

➡Only one VLAN tag can be removed from the sent packets.

A trunk interface allows multiple VLANs to pass.

Typically used for switch-to-switch connections.

Only the native VLAN is sent untagged; other VLANs are tagged.

Hybrid Interface

➡Multiple VLAN tags can be removed from the sent packets.

A hybrid interface supports both tagged and untagged VLAN traffic.

Multiple VLANs can be configured to send traffic without VLAN tags.

Commonly used for server connections and virtualization environments.

In FusionAccess deployment,vAG (Virtual Access Gateway)andvLB (Virtual Load Balancer)rely oninternal account authentication and synchronizationto maintain high availability (HA) status.

Changing the following passwords can directly affect HA synchronization:

root password for vAG/vLB (D)

gandalf account password for vAG/vLB (C)

root password for HDC (A), which may disrupt management communication

However, theITA portal login password (B)is related only touser or administrator portal accessand doesnot participate in HA synchronization mechanisms.

Therefore, changing the ITA portal login password isnota cause of abnormal HA status.
