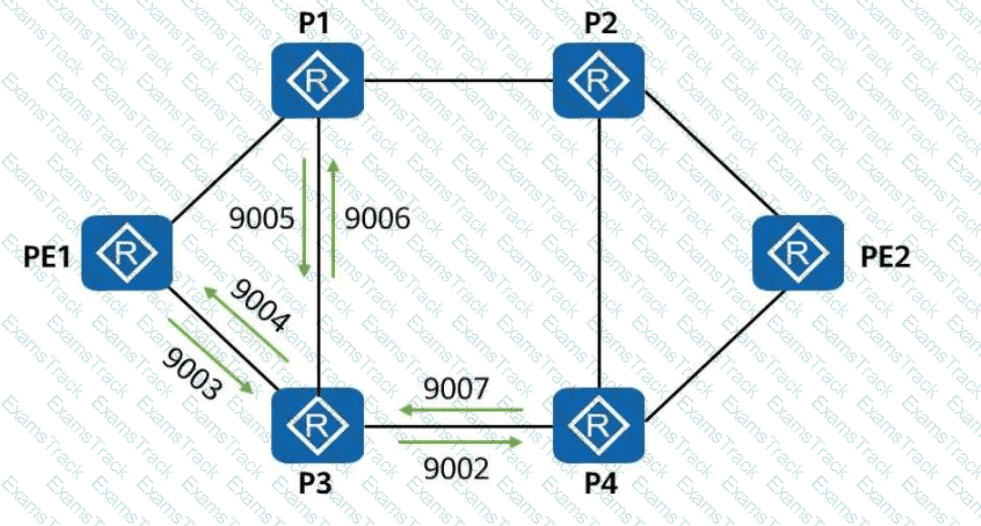

In OSPF-based SR-MPLS TE, Adjacency Segment Identifiers (Adj-SIDs) are locally assigned by each router for its directly connected interfaces. These labels are allocated from the Segment Routing Local Block (SRLB) configured on the router. By default, Huawei routers use an SRLB range starting at 9000, and Adj-SIDs are assigned sequentially (e.g., 9000, 9001, 9002, etc.) to each adjacency.

For P3, adjacency labels correspond to its outgoing interfaces. Assuming P3 has two adjacencies (e.g., to P2 and P4, as inferred from typical network topologies), it will allocate two unique Adj-SIDs from its SRLB. Based on Huawei’s implementation:

The first adjacency (e.g., to P2) is assigned the next available label in the SRLB (e.g., 9002).

The second adjacency (e.g., to P4) is assigned the subsequent label (e.g., 9003).

Analysis of Options:

Option B (9002): Likely assigned to P3’s first adjacency (e.g., link to P2).

Option C (9003): Likely assigned to P3’s second adjacency (e.g., link to P4).

Option A (9006) and D (9005): These labels are likely allocated by other routers (e.g., P4 or P5), as they fall outside the sequential range assigned by P3.

Key Points:

Adj-SIDs are local to the router and do not conflict with labels from other nodes.

The sequential allocation depends on the SRLB configuration. If the SRLB starts at 9000, labels 9000 and 9001 may be reserved for other purposes (e.g., node SIDs or reserved blocks), leaving 9002 and 9003 for adjacency labels.

Conclusion: P3 allocates 9002 and 9003 for its two adjacencies. Thus, B and C are correct.

In MPLS (Multiprotocol Label Switching), Label Switching Routers (LSRs) handle packets based on FECs (Forwarding Equivalence Classes) and their positions in the label-switched path:

Ingress LSR: The entry point for labeled packets; it classifies packets into FECs and assigns the initial label.

Transit LSR: Intermediate routers that swap labels and forward packets along the LSP.

Egress LSR: The last router in the LSP that removes the label and forwards the packet normally.

An LSR cannot be both an ingress and a transit router for the same FEC, because an ingress LSR is defined as the starting point for that specific FEC ' s LSP. If it’s the ingress, it means the labeled path starts there, so it can ' t be in the middle (transit) of that same path.

Therefore, the statement is FALSE.

Comprehensive and Detailed Explanation:

✔ iMaster NCE-WAN is the centralized SD-WAN controller that:

Manages SD-WAN network devices (CPEs, routers).

Optimizes traffic steering using AI-driven policies.

Enables automation, security, and analytics.

Thus, the statement is TRUE.

???? Reference: Huawei HCIE Datacom – SD-WAN Architecture

Huawei IPsec supports multiple modes for establishing Security Associations (SAs):

A. Template negotiation — Used in IPsec policy templates and dynamic VPNs.

B. IKE auto-negotiation mode — Automatically negotiates parameters via IKE Phase 1/2.

C. Certificate negotiation — IPsec peers can authenticate each other using certificates during IKE negotiation.

D. Manual mode — Static IPsec SAs can be manually configured without IKE, often used in simple or static topologies.

Exact Extract - Huawei Security Configuration Guide (USG Series):

“IPsec SAs can be established manually or dynamically through IKE, including using PSKs or certificates. Template-based approaches simplify large-scale deployment.”

For OSPF neighbors to reach Full state, they must exchange LSAs (Link State Advertisements) properly and synchronize their databases.

Possible Causes Preventing OSPF from Entering Full State:

✅ A. A link works abnormally

If the physical or Layer 2 link is unstable, OSPF Hello packets may be lost, preventing the Full state.

✅ B. The OSPF network types on both ends of the link are inconsistent

OSPF network types (Broadcast, P2P, NBMA, etc.) must match on both ends.

Example: If one router is P2P and the other is Broadcast, adjacency issues occur.

✅ C. The router IDs of neighbors are the same

Router ID conflicts prevent OSPF adjacencies from forming.

Each router must have a unique Router ID.

✅ D. The OSPF MTU values of interfaces on both ends of the link are different

If MTU settings do not match, OSPF Database Description (DD) packets may be dropped, preventing Full state.

Reference from Huawei HCIE-Datacom Documentation:

Huawei OSPF Configuration Guide – Troubleshooting OSPF Neighbor Issues

HCIE-Datacom Study Material – OSPF Adjacency and Route Synchronization

In BGP, community attributes help control the advertisement scope of BGP routes. Here’s what each option means:

No_Export: This well-known community attribute prevents BGP routes from being advertised to external BGP (EBGP) peers. Routes with this attribute can still be advertised to internal BGP (IBGP) peers within the same AS. This ensures that the route remains within the originating AS.

No_Advertise: This attribute means that the route should not be advertised to any BGP peer, whether internal or external.

Internet: Indicates that the route can be advertised to all BGP peers, both internal and external, with no restrictions.

No_Export_Subconfed: Similar to No_Export, but it also restricts advertisement to peers within a BGP confederation. It ' s more specific and not generally used just to keep routes inside one AS.

Therefore, the correct answer is B. No_Export, as it is the attribute that ensures BGP routes remain within the AS by not being sent to EBGP peers.

EVPN Route Types:

Type 1 (MAC/IP Advertisement Route): Advertises host MAC and IP information — used.

Type 2 (MAC/IP Advertisement Route): Advertises MAC + IP binding for end hosts — used.

Type 3 (Inclusive Multicast Ethernet Tag Route): Used to advertise VXLAN multicast group info — used.

Type 4 (Ethernet Segment Route): Used in multi-homing scenarios, especially in DC (data center) environments, to coordinate DF election — typically not used in campus VXLAN.

So in campus virtualized networks, which are often single-homed, Type 4 is not required.

Correct answer: C. Type 4

In OSPF:

An NSSA (Not-So-Stubby Area) allows external route injection via Type 7 LSAs.

These Type 7 LSAs are generated by ASBRs inside the NSSA (R4 in this case) when external or direct routes are imported.

ABRs (such as R2) between the NSSA and backbone translate Type 7 LSAs into Type 5 LSAs for flooding into other areas.

Clarification of options:

A: Incorrect — default route is not involved here; it ' s a specific route (10.1.4.4/32).

B: Correct — R2 translates Type 7 LSAs into Type 5.

C: Incorrect — default route is not being advertised.

D: Correct — R4 imports a direct route and generates Type 7 LSAs for it.

Correct answers: B, D

Comprehensive and Detailed Explanation:

✔ Portal authentication is a web-based authentication mechanism used in campus networks to control user access.

✔ Correct Statements:

✅ (A) The Portal server exchanges authentication details with the access device, which forwards them to the authentication server.

✅ (D) When using HTTP/HTTPS authentication, the client must send authentication credentials to the access device, which then forwards them to the authentication server.

✔ Incorrect Statements:

❌ (B) HTTP/HTTPS support is mandatory for web-based authentication.

❌ (C) If HTTP/HTTPS is used, Portal authentication may still be required.

???? Reference: Huawei HCIE Datacom – Portal Authentication Mechanism

Comprehensive and Detailed Explanation:

The IS-IS peer output shows:

IPv4 Peer Address: 10.1.34.1

IPv6 Peer Address: FE80::2E0:FCFF:FE98:2576

MT IDs (Multi-Topology) Supported: 0 (IPv4), 2 (IPv6)

Since both IPv4 and IPv6 peer addresses are listed, it confirms that both IPv4 and IPv6 IS-IS neighbor relationships are established between R4 and ee8c.a0c2.baf3.

???? Reference: Huawei HCIE Datacom – IS-IS Multi-Topology Support
