Free Huawei H12-811_V2.0 Practice Exam with Questions & Answers | Set: 3

The nat server configuration creates a static mapping so that an internal Telnet server at private address 192.168.1.1 can be reached from the public network using global address 100.0.23.2 on the Telnet TCP port. The purpose of NAT Server is to expose an internal service through a reachable public address and translate incoming packets to the inside host. A public user therefore initiates the connection to the configured global address, for example telnet 100.0.23.2, assuming routing and security policies allow the session. The user does not normally issue telnet 192.168.1.1 from the public network because that is the private inside address and is not the destination on which the public-side NAT mapping is matched. After the packet reaches R1 addressed to 100.0.23.2, R1 translates the destination to 192.168.1.1 and forwards it internally. Thus the configuration can make the private server reachable, but the command stated in the question uses the wrong destination address. The statement is FALSE, option B.

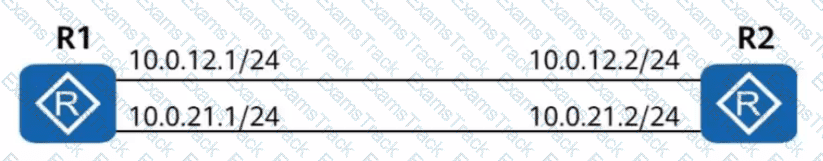

The source key marks this statement TRUE, but the topology makes that answer technically incorrect. R1 is shown with interface address 10.0.12.1/24, which automatically installs a directly connected route to 10.0.12.0/24. On Huawei VRP, a direct route has preference 0, whereas a static route has preference 60 unless another value is configured. The two commands do configure two static routes with the same preference, and equal-preference static routes can support load balancing when they are the best routes to a destination. Here, however, both static routes are for the same prefix that R1 already owns as a connected network. The direct route has a higher priority because its preference value is smaller, so it is selected in the active IP routing table instead of the two preference-60 static routes. Therefore the assertion that R1 has two active equal-cost routes to 10.0.12.0/24 is FALSE as the question and exhibit are written. The verified answer is B, and the original source key A should be corrected.

In IPv6, link-local addresses use the prefix FE80::/10 . These addresses are automatically generated or configured for communication on the local link only and are not routed across Layer 3 boundaries. Therefore, among the given options, FE80::FA63:DBFF:FE9E:10 is the correct link-local address, making option C correct.

Options A and B belong to the Unique Local Address (ULA) space, which uses the prefix FC00::/7 . These addresses are intended for private internal IPv6 networks, somewhat similar in purpose to private IPv4 address ranges, but they are not link-local addresses. Option D , which starts with 2001::, is a global unicast address , used for routable communication across IPv6 networks. HCIA-Datacom teaches that link-local addresses are essential in IPv6 because they are used for functions such as neighbor discovery, router discovery, and routing protocol communication on the local segment. Even when a device has global unicast addresses, the link-local address still plays an important role in normal IPv6 operation and protocol adjacency establishment.

In a WAC + Fit AP architecture, the WAC (Wireless Access Controller) centrally manages and controls the Fit APs, so option A is correct. Service configurations such as SSIDs, security policies, radio parameters, and access control are generally delivered from the WAC to the APs. The Fit AP mainly forwards wireless user traffic and executes the configuration issued by the controller.

Option D is also correct because a Fit AP provides 802.11 wireless access for stations (STAs) and serves as a bridge between the wireless side and the wired network. This is one of its basic roles in enterprise WLAN deployment. Option B is incorrect because users or administrators do not normally need to log in to each Fit AP individually to configure wireless services; centralized management by the WAC is the whole advantage of this architecture. Option C is incorrect because CAPWAP communication between the WAC and AP does not require Layer 2 adjacency ; the WAC and AP can communicate over Layer 3 as long as IP connectivity exists. HCIA-Datacom emphasizes centralized configuration, simplified operations, and scalable deployment as key benefits of WAC + Fit AP networking.

All four addresses can successfully ping 10.0.23.3, so the correct answer is A, B, C, D .

The key point is that the traffic policy is applied outbound on GE0/0/1 of R1, which is the interface facing S1 . When S1 pings 10.0.23.3, the echo request travels from S1 to R1 and then to S2. The return echo reply from 10.0.23.3 comes back to R1 and is then sent outbound on GE0/0/1 toward S1. Therefore, the traffic policy examines the reply packets , not the original ping request packets.

In those reply packets, the source IP address is 10.0.23.3 , and the destination is one of S1’s loopback addresses. The ACL rules denying 10.0.1.1 and 10.1.1.1 as source addresses do not match these reply packets, because those addresses appear as destination addresses , not source addresses. In addition, the ACL contains rule permit ip, which permits all remaining IP traffic. As a result, replies to all four S1 addresses are forwarded successfully, so every listed address can ping 10.0.23.3.

The exhibit assigns SW1 GE1/0/1 to VLAN 10 and GE1/0/2 to VLAN 20, while the trunk between SW1 and SW2 carries the required VLANs. When PC1 is connected to GE1/0/1, its untagged frames are classified into VLAN 10. PC2 is also in VLAN 10, so PC1 can communicate with PC2 at Layer 2, whereas PC3 is in VLAN 20 and is separated by the VLAN boundary. SW1 learns PC1 ' s source MAC address together with VLAN 10 and ingress interface GE1/0/1. When PC1 is moved to GE1/0/2, its untagged frames are now placed in VLAN 20. After MAC relearning occurs, PC1 can communicate with PC3, which is also in VLAN 20, but not directly with PC2 in VLAN 10 unless Layer 3 inter-VLAN routing is provided. Consequently, statement A is false because PC1 is not isolated from both hosts after the move; it can communicate with PC3.

Huawei ' s Wi-Fi 7 documentation describes several technologies introduced or enhanced relative to Wi-Fi 6 to increase throughput, spectrum efficiency, and reduce latency. 4096-QAM raises modulation density from the 1024-QAM maximum associated with Wi-Fi 6, allowing more bits to be carried per modulation symbol under suitable radio conditions. Multi-RU allows one user to be assigned multiple resource units, improving spectrum scheduling flexibility compared with the Wi-Fi 6 restriction of a user operating within its assigned RU. Multi-link operation allows a station to establish and use links across multiple bands or radios as a coordinated connection. Wi-Fi 7 also enhances MU-MIMO capabilities, increasing the ability to serve multiple users and exploit additional spatial resources. Huawei product documentation commonly lists 4096-QAM, multi-RU, MLO/multi-link, and enhanced MU-MIMO among Wi-Fi 7 improvements built on Wi-Fi 6. Therefore, each technology listed in the question contributes to Wi-Fi 7 performance improvement, and the verified selection is A, B, C, and D.

Modern cloud data centers require horizontal scalability, high east-west bandwidth, virtualization support, and flexible tenant network extension. A spine-leaf physical topology provides predictable low-hop connectivity between leaf switches by connecting each leaf to the spine layer. VXLAN provides an overlay that can create large numbers of logical Layer 2 segments over the Layer 3 underlay and is well suited to virtualized and multi-tenant cloud environments. The combination of Spine-Leaf and VXLAN is therefore a standard architecture for cloud-based general-purpose data center networks. M-LAG with Eth-Trunk can provide device and link redundancy but does not by itself provide the scalable overlay architecture expected for a cloud fabric. PFC and ECN are lossless-network and congestion-management technologies rather than a complete general-purpose data center architecture. STP with VRRP represents more traditional Layer 2 redundancy and gateway protection and does not offer the same cloud-fabric scalability. Consequently, the architecture described in the question is Spine-Leaf + VXLAN, making option B correct.

The uploaded key includes all four options, but option B is not a valid requirement for normal source NAT and should be removed. Source NAT translates the private source address of outbound traffic into a public address before the packet enters the public network. The public-side router therefore needs reachability to the translated public address for return traffic, not a route to the original private intranet address. By contrast, A can prevent access if NAT is not applied on the proper outbound interface or direction. C can also prevent translation when the configured address pool has no usable address available, depending on the NAT mode and session requirements. D is valid because traffic whose source address does not match the NAT policy or referenced ACL will not be translated; private-source packets then normally cannot traverse the Internet as intended. Routing on the enterprise egress device must of course also be correct, but the specific absence described in B is not inherently a failure when source NAT is working. The verified selections are A, C, and D.

On Huawei devices, the undo command is used to remove a previously applied configuration, disable a function, or restore a parameter to its default state. In option B , undo ip address is a valid interface-view command that removes the IP address configured on the interface. In option C , undo portswitch is also a valid interface command on switch interfaces that converts a Layer 2 interface into a Layer 3 interface when supported by the device. In option D , undo sysname restores the device name to the default hostname, which is valid in system view.

Option A is incorrect because system-view is a command used to enter system view from user view, but undo system-view is not a valid command for exiting that view. Exiting system view is done with commands such as quit, return, or by using shortcut keys. This question checks the understanding that undo only applies to configurable features and parameters, not to view-switching commands in the CLI hierarchy.
