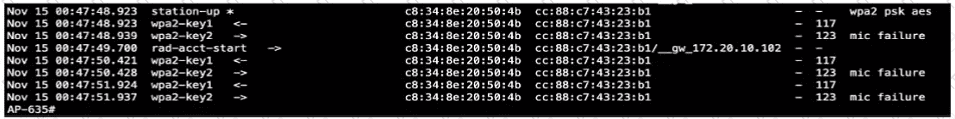

The issue indicated by the output is an invalid pre-shared key (PSK). The logs show multiple failures during the WPA2 key exchange process, which points to a mismatch between the PSK configured on the client device and the PSK expected by the AOS 10 mobility gateway.

In 802.11ax (Wi-Fi 6), OFDMA (Orthogonal Frequency Division Multiple Access) subdivides a channel into resource units, enabling simultaneous uplink and downlink transmissions for multiple clients. This is specifically optimized for many small packets (typical of IoT), reducing contention and improving efficiency. MU-MIMO (UL/DL) helps with multiple spatial streams for larger frames and strong SNR clients, while HE TXBF improves range/data rate for individual links; neither addresses small-packet concurrency as directly as OFDMA.

In OSPF, when a router learns about an external network through both E1 and E2 advertisements, and if both have the same path cost, the router will prefer the E1 path. This is because E1 routes consider both the external cost to reach the external network and the internal cost to reach the ASBR, providing a more comprehensive metric. E2 routes only consider the external cost and ignore the internal cost to the ASBR, which could potentially lead to suboptimal routing. Therefore, the router will choose the E1 path due to its more accurate representation of the total path cost.

In a multi-site deployment with a mix of bridged and tunneled SSIDs, if there are session sync errors between different areas, it could be due to connectivity issues with the central management platform, which in the case of Aruba, is likely HPE Aruba Networking Central. This interruption could cause inconsistencies in session states across the network.

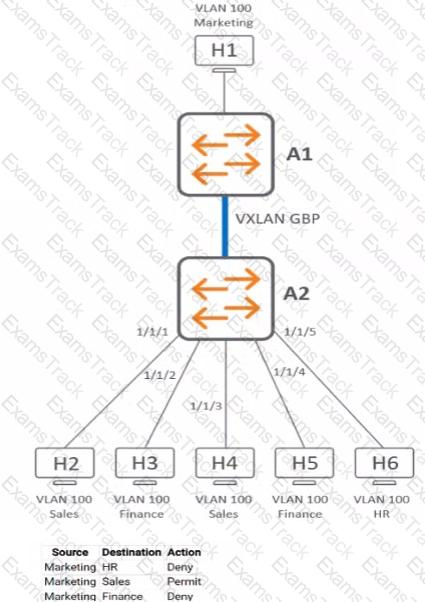

In a VXLAN environment, unknown unicast traffic, such as ARP requests from H1, which does not have a specific destination MAC address learned by the switch A2, will be flooded out of all interfaces. This flooding behavior is necessary because A2 needs to ensure that the ARP request reaches its intended destination, which might be on any of the interfaces. It's a part of the standard behavior of switches to handle ARP traffic when the destination hardware address is unknown.

The configuration shown in Option A is a valid configuration for a multi-chassis link aggregation (MC-LAG) setup. It specifies the use of LACP (Link Aggregation Control Protocol) with a fast rate of LACP PDUs exchange, which is appropriate for creating a resilient and high-throughput link aggregation. The 'vlan trunk allowed all' command allows all VLANs across the trunk, and 'vlan trunk native 100' sets VLAN 100 as the native VLAN for untagged traffic.

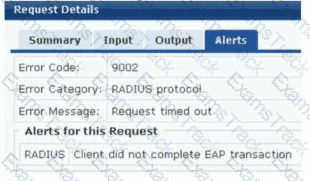

ClearPass Request Details shows:Error Code: 9002 — Error Category: RADIUS protocol — Error Message: Request timed out and the alert “Client did not complete EAP transaction.”Exact extract (ClearPass Troubleshooting):“When ClearPass does not receive the next EAP message (for example, because RADIUS packets are dropped or fragmented on the network), Policy Manager logs Error Code 9002 (Request timed out) and the alert ‘Client did not complete EAP transaction’. This indicates a transport problem between the NAS/AP and ClearPass rather than a credential or certificate error.”

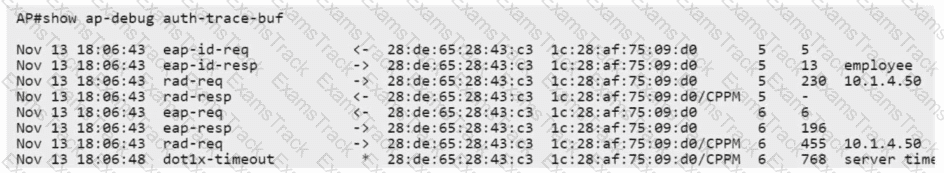

AP show ap-debug auth-trace-buf shows:... eap-req / eap-resp ... rad-req ... dot1x-timeout ... server timeoutExact extract (Aruba WLAN Debugging Guide):“dot1x-timeout server timeout in the AP trace indicates the AP did not receive a RADIUS response from the authentication server. Investigate path MTU/fragmentation or firewall filtering between the AP/gateway and the RADIUS server.”

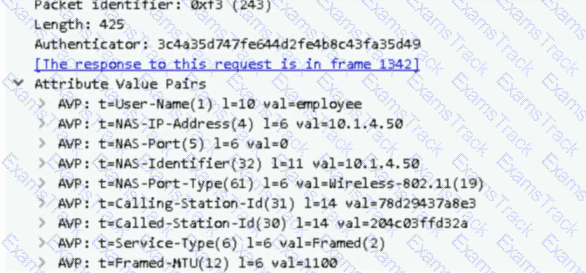

Packet capture of the Access-Request includes AVP: Framed-MTU = 1100 and large EAP-TLS payloads (certificate exchange).Exact extract (Aruba 802.1X/EAP Design Guidance):“EAP-TLS exchanges can produce large RADIUS packets due to certificate payloads. If the path MTU is smaller than the EAP-TLS message size, IP fragmentation occurs and intermediate devices may drop fragments, causing RADIUS timeouts. Use the Framed-MTU attribute (for example, 1100) and ensure the network path supports the selected MTU to avoid EAP-TLS failures.”

Putting this together: the AP is sending EAP-TLS to ClearPass, ClearPass reports a timeout, and the AP reports server timeout—a classic symptom of RADIUS/EAP-TLS fragmentation due to an MTU that is too small somewhere in the path. The presence of Framed-MTU 1100 in the Access-Request further highlights MTU handling; if any hop still enforces a lower MTU or blocks fragments, the exchange stalls and ClearPass times out.

Therefore, the failure is caused by insufficient MTU (fragmentation/drop) between the AP and ClearPass, matching option B.

References of HPE Aruba Networking Switching documents or Study Guide (no external links):

Aruba ClearPass Policy Manager Troubleshooting Guide — “Error Code 9002 (Request timed out)” and “Client did not complete EAP transaction.”

Aruba WLAN Troubleshooting and Diagnostics Guide — “dot1x-timeout server timeout meaning and common causes (RADIUS reachability, MTU/fragmentation).”

Aruba 802.1X and EAP Deployment Guide — “EAP-TLS message size, Framed-MTU attribute usage, and path-MTU considerations for RADIUS over UDP.”
