Free Fortinet NSE6_FMG_AD-7.6 Practice Exam with Questions & Answers | Set: 2

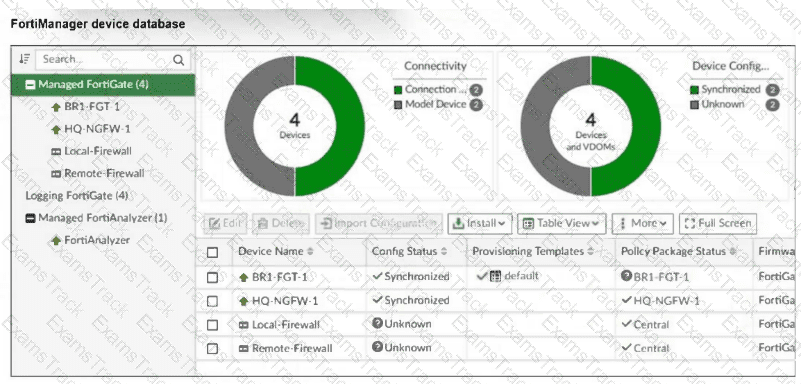

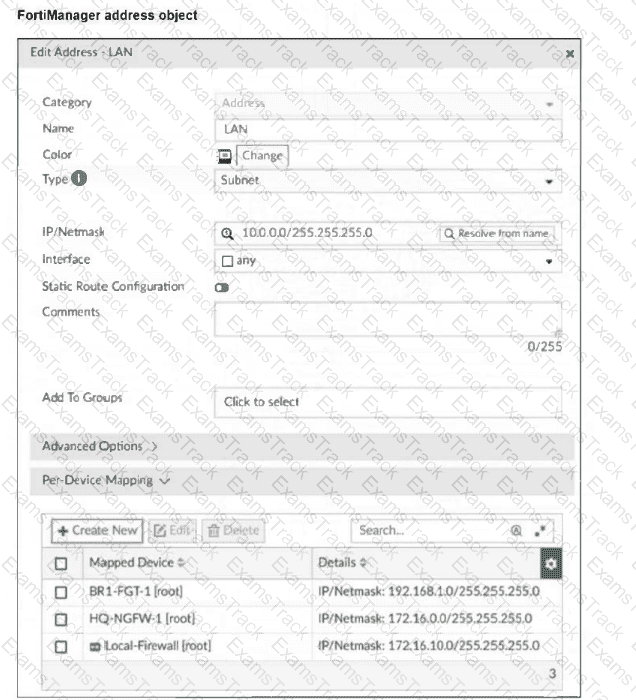

The correct answer is B. The LAN address object shown in the exhibit has a default value of 10.0.0.0/255.255.255.0, and it has per-device mappings only for BR1-FGT-1, HQ-NGFW-1, and Local-Firewall. There is no per-device mapping entry for Remote-Firewall.

The FortiManager 7.6 Administrator Study Guide gives the exact rule for this behavior: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value”. The same page also explains that dynamic objects let you map one logical object to unique values per device, but devices without a mapping use the object’s default definition.

Since Remote-Firewall is not listed in the Per-Device Mapping table, it inherits the default LAN value: 10.0.0.0/255.255.255.0.

=========

In backup mode, FortiManager does not directly manage policy installation via the usual ADOM policy packages; instead, administrators use FortiManager scripts to push configuration changes, including policies, to FortiGate devices.

If a BGP template is assigned to the FortiGate device on FortiManager, device-level BGP configurations made directly in the device-level database are overridden by the template settings, so the changes do not get pushed to the device.

The correct answer is B. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “Also note when you upgrade the FortiManager firmware version the existing ADOMs are not automatically upgraded.” This directly explains why the administrator saw the FortiManager upgrade complete while the ADOM versions remained unchanged.

The same section also explains that ADOM upgrades are a separate action: “You can upgrade an ADOM in System Settings > ADOMs” and “Can upgrade to one version higher at a time.” In addition, the guide recommends: “upgrade all devices first, and then upgrade the ADOM.”

So the issue is not workspace mode, locked ADOMs, or a stuck task. The ADOMs simply require their own manual upgrade step after the FortiManager firmware upgrade.

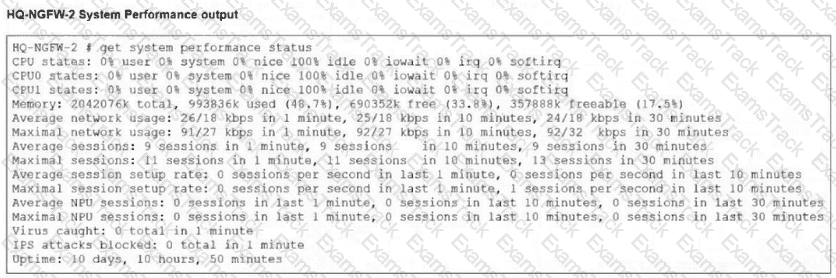

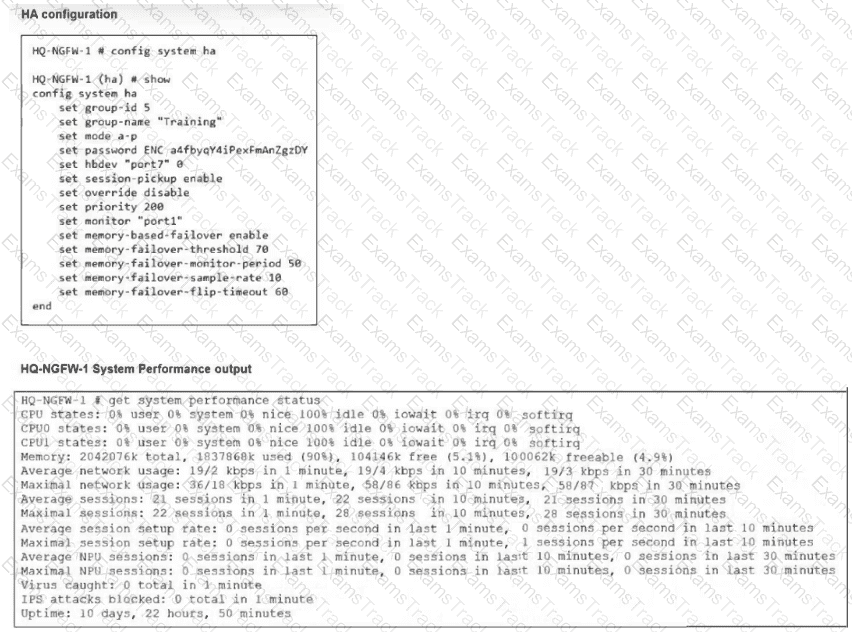

The correct answer is A. This conclusion comes from the HA settings shown in the exhibit plus Fortinet’s HA behavior. In the exhibit, HQ-NGFW-1 has memory-based-failover enabled, memory-failover-threshold 70, memory-failover-monitor-period 50, and its memory usage is about 90%, while HQ-NGFW-2 is about 48.7%. Fortinet’s official documentation states that memory-failover-threshold is the memory percentage that triggers failover, and memory-failover-monitor-period is the duration high memory must persist before failover occurs. It also states that if utilization stays above the threshold for the entire monitor period, a failover is triggered, and the peer becomes primary. (Fortinet Document Library)

Because the condition was observed for 55 seconds, which is longer than the configured 50-second monitor period, the cluster would fail over from HQ-NGFW-1 to HQ-NGFW-2 due to the memory-failover-threshold condition. The priority setting does not explain this result here, because override is disabled, and flip-timeout governs subsequent memory-based failovers, not the initial trigger. (Fortinet Document Library)

=========

Enabling a workflow with approval ensures that any policy package changes must be reviewed and approved before installation, preventing administrators from repeating configuration mistakes and enforcing change control.

The correct conclusion is D. The FortiManager 7.6 Administrator Study Guide defines Never Installed as a state where the policy package was never created and was never imported for a managed device. That means FortiManager may already know the device itself at the device layer, but the firewall policy layer has not yet been built for that device.

The lab guide confirms this behavior directly: when you choose Import Later in the Add Device wizard, the policy package status becomes Never Installed because there is still no policy package created for the added FortiGate devices.

So this is not a revision-history issue, and it does not mean ADOM policy changes are merely waiting for first install. It means the policies still exist only on the managed device side until they are imported into a FortiManager policy package.

=========

FortiManager global policies and objects are shared across ADOMs, but they are not applied automatically to every package. The study guide states that when you create a global policy package, you can choose the ADOMs you want to apply it to, and you can even pick specific policy packages in individual ADOMs. That directly validates B.

A is also correct because the lab guide explicitly says you can promote ADOM objects to global objects by right-clicking an ADOM object and selecting Promote to Global.

C is incorrect because when Automatically Install Policies to ADOM Devices is enabled, FortiManager installs without giving you a preview/accept step first; the lab warns to use it only when you are sure of the changes.

D is incorrect because FortiManager imports device policies into an ADOM policy package, not into the global package for synchronization.

The FortiManager 7.6 Administrator Study Guide states under Copying System Templates Between ADOMs: “The first step is to export the system template from the original ADOM with the execute fmprofile export-profile command” and shows the output file being written to /tmp/Training, described as “File copied in FortiManager tmp folder.”

The key point is that the command exports the system template profile from the original ADOM, while /tmp/Backup_File is only the destination path on FortiManager where the exported file is stored. The same study guide also defines system templates as a “subset of model device configuration—system-level settings”, which means they belong to the device-level side of the ADOM, not the policy database.

So the export source is the ADOM device database, and the file is saved afterward in the FortiManager /tmp folder.
