Free Fortinet FCSS_LED_AR-7.6 Practice Exam with Questions & Answers | Set: 2

On FortiLink, FortiGate’s built-in DHCP server is what gives FortiSwitch its IP so it can come under management. For automatic FortiSwitch onboarding, the DHCP server is usually set with:

set vci-match enable

set vci-string "FortiSwitch" "FortiExtender"

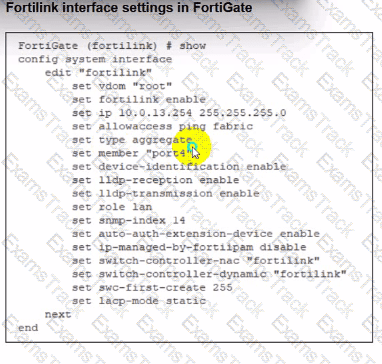

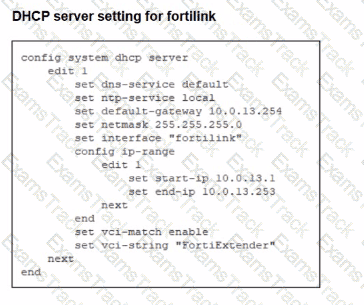

In the exhibit, the DHCP server for fortilink has:

set vci-match enable

set vci-string "FortiExtender"

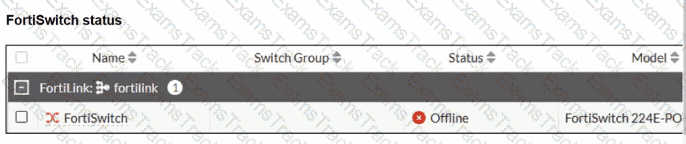

Because theVCI string doesn’t include “FortiSwitch”, DHCP offers are only sent to clients whose Vendor Class Identifier matchesFortiExtender. The FortiSwitch never receives an IP, so it staysOffline.

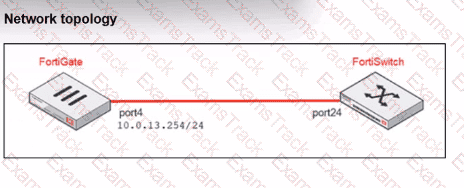

OptionBis wrong: member "port4" matches the physical cabling in the topology.

OptionCis fine: FortiLink can be anaggregateinterface, not only physical.

OptionA(ip-managed-by-fortiipam) is unrelated; FortiIPAM isn’t required here.

Let’s verify each protocol:

C. FortiGate uses the FortiLink protocol to establish communication with FortiSwitch.✔

FortiLink is themanagement and control protocol, encapsulated over:

LLDPfor discovery

CAPWAP (UDP/5246–5247)for control channel

DHB (Device Handshake Bus)inside CAPWAP frames

Thus,FortiLink is required.

D. CAPWAP is used to establish the control channel between FortiSwitch and FortiGate.✔

Although CAPWAP is commonly associated with FortiAP, FortiSwitchalso uses CAPWAPinternally when managed by FortiGate.

This is documented in:

FortiSwitch Administration Guide

LAN Edge deployment guide

SoD is correct.

B. UHTTPS is used by FortiGate to securely manage and configure FortiSwitch devices.✔

FortiLink session actually uses:

Encrypted CAPWAP (over DTLS)

UHTTPS (port 4433)for secure configuration exchanges

This protocol is mandatory for:

Switch configuration synchronization

Firmware upgrade

NAC data exchange

VLAN provisioning

ThereforeUHTTPS is indeed one of the key protocols.

Why the incorrect options are wrong:

A. SNMP can be used by FortiGate to manage FortiSwitch.✖

FortiGate doesnotuse SNMP to manage FortiSwitch.

SNMP is for monitoring by external systems, not for FortiLink control.

E. IGMP is required for management.✖

IGMP is a multicast protocol, irrelevant for FortiGate–FortiSwitch management.
