Free Fortinet FCP_FAZ_AN-7.6 Practice Exam with Questions & Answers | Set: 2

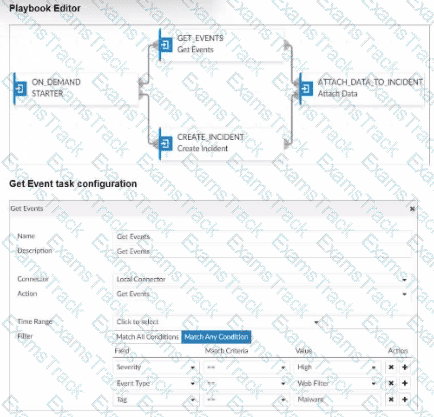

In FortiAnalyzer, when a playbook is run, each task’s status impacts the overall playbook status. Here’s what happens based on task outcomes:

Status When All Tasks Succeed:

If all tasks finish successfully, the playbook status ismarked asSuccess.

Status When Some Tasks Fail:

If one or more tasks in the playbook fail, but others succeed, the playbook status generally changes toAttention required. This status indicates that the playbook completed execution but requires review due to one or more tasks failing.

This is different from a completeFailedstatus, which is used if the playbook cannot proceed due to a critical error in an early task, often one that upstream tasks depend on.

Option Analysis:

A. Attention required: This is correct as the playbook has completed, but with partial success and a task requiring review.

B. Upstream_failed: This status is used if a task cannot run because a prerequisite or "upstream" task failed. Since four out of five tasks completed, this is not the case here.

C. Failed: This status would imply that the playbook completely failed, which does not match the scenario where only one task out of five failed.

D. Success: This status would apply if all tasks had completed successfully, which is not the case here.

Conclusion:

Correct Answer:A. Attention required

The playbook status reflects that it completed, but an error occurred in one of the tasks, prompting the administrator to review the failed task.

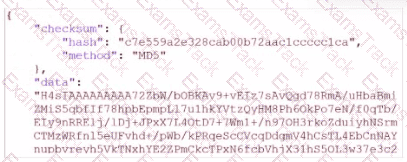

In the exhibit, the data structure shows a checksum field and a data field with a long, seemingly encoded string. This format is indicative of a file that has been compressed or encoded for storage and transfer.

Export Data Type:

The data field is likely a base64-encoded string, which is commonly used to represent binary data in text format. Base64 encoding is often applied to data that has been compressed (zipped) for easier handling and transfer. The checksum field, with an MD5 hash, provides a way to verify the integrity of the data after decompression.

Option Analysis:

A. The export data type is zipped: Correct. The compressed and encoded format of the data suggests that the export is in a zipped format, allowing for efficient storage and transfer.

B. The playbook is misconfigured: There is no indication of misconfiguration in this exhibit. The presence of the checksum and data fields aligns with standard export practices.

C. The option to include the connector was not selected: There is no evidence in the output to conclude that connectors are missing. Connectors are typically listed separately and would not directly affect the checksum and encoded data structure.

D. Your colleague put a password on the export: There’s no indication of password protection in the exhibit. Password protection would likely alter the data structure, and there would be some mention of encryption.

Conclusion:

Correct Answer:A. The export data type is zipped.

This answer is consistent with the typical use of base64 encoding for compressed (zipped) data exports in FortiAnalyzer.

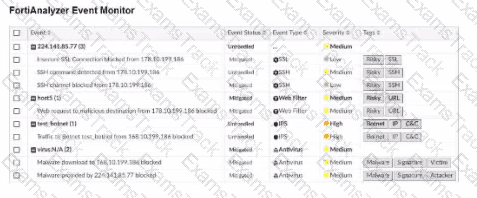

In FortiOS 7.4.1 and FortiAnalyzer 7.4.1, the "Unhandled" status in logs typically signifies that the FortiGate encountered a security event but did not take any specific action toblock or alter it. This usually occurs in the context of Intrusion Prevention System (IPS) logs.

IPS logs with action=pass:When the IPS engine inspects traffic and determines that it does not match any known attack signatures or violate any configured policies, it assigns the action "pass". Since no action is taken to block or modify this traffic, the status is logged as "Unhandled."

Let's look at why the other options are incorrect:

An AV log with action=quarantine:Antivirus (AV) logs with the action "quarantine" indicate that a file was detected as malicious and moved to quarantine. This is a definitive action, so the status wouldn't be "Unhandled."

A WebFilter log will action=dropped:WebFilter logs with the action "dropped" indicate that web traffic was blocked according to the configured web filtering policies. Again, this is a specific action taken, not an "Unhandled" event.

An AppControl log with action=blocked:Application Control logs with the action "blocked" mean that an application was denied access based on the defined application control rules. This is also a clear action, not "Unhandled."

The command diagnose sql statussqlreportd is used in FortiAnalyzer to obtain specific information about the SQL reporting process and caching status. Here’s what this command accomplishes and an analysis of each option:

Command Functionality:

sqlreportd is the FortiAnalyzer daemon responsible for managing SQL-based reporting processes.

The diagnose sql status sqlreportd command provides information on active SQL query connections and thehcache(historical cache) status, which helps in monitoring and troubleshooting SQL report generation.

Option Analysis:

Option A - To View a List of Scheduled Reports:

This option is incorrect because the command does not list scheduled reports. Instead, it focuses on SQL reporting processes and cache details.

Option B - To List the Current SQL Processes Running:

While the command may show active SQL connections, its primary focus is not a detailed list of all SQL processes but rather the connections and cache status for reporting.

Option C - To Display the SQL Query Connections and hcache Status:

This is correct. The command specifically provides information on SQL query connections related to the reporting process (sqlreportd) and displays thehcachestatus.

Option D - To Identify the Database Log Insertion Status:

This is incorrect. The command does not provide details on log insertion status. Log insertion status is typically monitored through different diagnostic commands focused on database processes and log handling.

Conclusion:

Correct Answer:C. To display the SQL query connections and hcache status

This command is used to monitor SQL reporting activities and cache status, aiding in the analysis of report generation performance and connection health.

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

The study guide explains that FortiAI token usage includesboth the prompt (input) and the response (output), and that “generally, more text in the query and response results in using more tokens.” It provides two comparison examples and concludes that the more verbose request for “all the log entries” consumes more tokens because it hasmore textand also triggers alarger response; whereas limiting the query to a time range (for example, “(past week)”) reduces output volume and therefore token usage.

Applying that guidance to the options:

Cis the most verbose and explicitly requests “all the log entries,” which drives higher input and output token usage.

Brequests “all logs” for the week (broad scope), which typically increases output tokens.

Dis short, but it doesnotconstrain the time range, which can increase the response size (output tokens).

Ais concise and includes a time constraint “(past week),” matching the study guide’s example of a lower-token query pattern.

The study guide explains that in a Security Fabric,traffic logging is not duplicatedacross FortiGates for the same session:“Traffic logging for a session … is always carried out by the first FortiGate that handled it”and if a FortiGate receives traffic from a peer FortiGate MAC,“it does not generate a new traffic log for that session.”

For UTM (web filtering) logs, the study guide states:“When configured, upstream devices complete UTM logging.”

In the illustrated example, it further clarifies the role split:“All traffic from Client-1 is first received by FGT-B, which creates traffic logs for the initial session… [then] forwarded to FGT-A… [and] FGT-A … applies web filtering … and generates the relevant UTM logs as necessary.”

Because web filter profiles are configured tolog only violations, web filter (UTM) logs will be generated only when a violation is detected—and per the study guide behavior, that UTM logging is done by theupstreamFortiGate (FGT-A). Therefore,only FGT-A will create web filter logs if it detects a violation(Option D).

Comprehensive and Detailed Explanation From Exact Extract of knowledge of FortiAnalyzer 7.6 Study guide documents:

B is true (members operate in analyzer mode, not collector mode):The study guide defines Fabric members as FortiAnalyzer devices that “retain access to the features described in the FortiAnalyzer Administration Guide” and that “each member can create or raise incidents and events.” In contrast, it states that a FortiAnalyzer operating incollector mode“does not provide capabilities for event management or reporting,” and also notes that “in collector mode, the GUI doesn’t include FortiView, Reports, or Incidents & Events.” Since Fabric members must be able to generate/manage incidents and events, they must be operating with analyzer capabilities rather than collector-only functionality.

C is true (members do not forward their logs to the supervisor):The supervisor provides centralized visibility, but the study guide describes the supervisor’s log access asviewing logs collected on members, not receiving/storing forwarded log files. It states: “In the FortiAnalyzer Fabric supervisor, Log View displays logs collected on all FortiAnalyzer Fabric members,” and clarifies “the logs contain the same information as displayed in the host FortiAnalyzer device they were collected on.” This indicates the logs remain on the member (host) and are made visible to the supervisor for centralized monitoring rather than being forwarded and stored on the supervisor.

For completeness, the study guide also explicitly states“HA is not available on the supervisor”(so A is false) andmembers do not need the same time zone as the supervisor(so D is false).

Option A - Purging Log Entries:

A SELECT query in SQL is used to retrieve data from a database and does not have the capability to delete or purge logentries. Purging logs typically requires a DELETE or TRUNCATE command.

Conclusion:Incorrect.

Option B - WHERE Clause Requirement:

In SQL, a SELECT query does not require a WHERE clause. The WHERE clause is optional and is used only when filtering results. A SELECT query can be executed without it, meaning this statement is false.

Conclusion:Incorrect.

Option C - Displaying Database Schema:

A SELECT query retrieves data from specified tables, but it is not used to display the structure or schema of the database. Commands like DESCRIBE, SHOW TABLES, or SHOW COLUMNS are typically used to view schema information.

Conclusion:Incorrect.

Option D - Usage in Macros:

FortiAnalyzer and similar systems often use macros for automated functions or specific query-based tasks. SELECT queries are typically not included in macros because macros focus on procedural or repetitive actions, rather than simple data retrieval.

Conclusion:Correct.

Conclusion:

Correct Answer:D. They are not used in macros.

This aligns with typical SQL usage and the specific functionalities of FortiAnalyzer.
