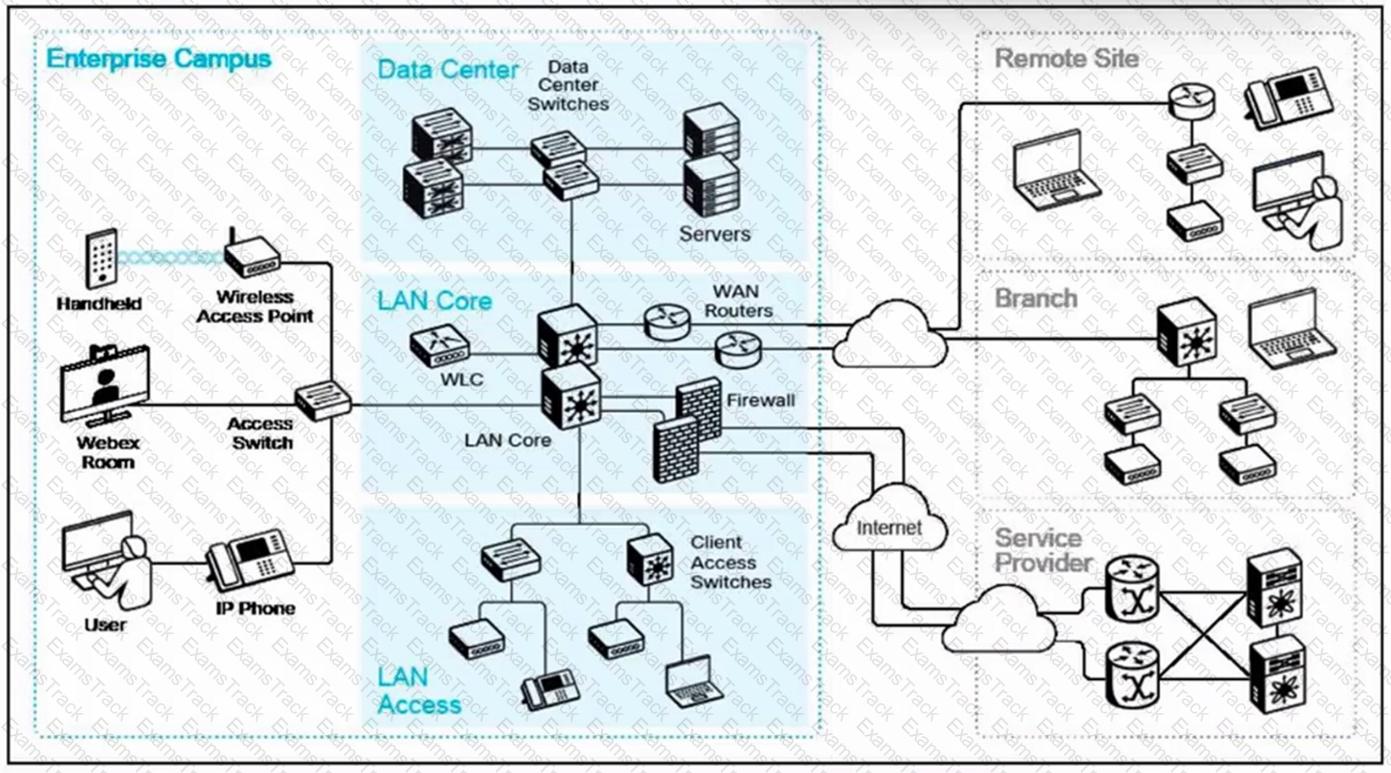

In an enterprise network,Virtual Local Area Networks (VLANs)are the key Layer 2 technology used to logically segment a network into multiple broadcast domains. VLANs allow network administrators to assign individual switch ports to specific VLANs, enabling effective network segmentation and traffic management.

This configuration extends to access layer devices, such as switches where end-user devices connect. By isolating traffic into VLANs, administrators can improve network performance, enhance security by separating sensitive departments (such as finance and HR), and simplify network management.

Unlike routing protocols such as BGP and OSPF, which operate at Layer 3, or MPLS, which is a Layer 2.5 forwarding technology used primarily in service provider networks, VLANs are explicitly designed for Layer 2 segmentation within LAN environments.

During the password recovery process on Cisco devices, ROMMON (ROM Monitor) mode is utilized to perform specific actions that facilitate the recovery. Two critical actions typically performed in ROMMON mode are:​

Change the Configuration Register:The configuration register is modified to instruct the device to ignore the startup configuration during the next boot. This is commonly achieved by setting the configuration register to0x2142. This action prevents the device from loading the saved configuration, allowing access without requiring the existing passwords.​

Reboot the Device:After changing the configuration register, the device is rebooted to apply the new settings. This reboot enables the device to bypass the startup configuration, facilitating the password recovery process.​

These steps are essential in the password recovery procedure, allowing administrators to regain access to the device without erasing the existing configuration.​

The highlighted component on the Cisco I/O module is the chassisconnections LED, which indicates the status of connectivity between the I/O module and the chassis.

In the exhibit, the orange arrow points to asmall rectangular LED indicatorlocated to the left side of the I/O module (Cisco UCS-IOM-2304). This specific LED isnot aligned with the ports, fans, or screws, which helps identify it correctly.

Chassis connections LED (B)is responsible for indicating thestatus of uplink/downlink communicationbetween the I/O module and the chassis.

Greenusually indicates a healthy link.

Amberoroffmay indicate a problem or no connection.

Why the other answers are incorrect:

A. Captive screw→ These are at the far corners, not where the arrow points.

C. Fan module LED→ This IOM doesn’t have user-visible fan LEDs atthe front face.

D. Fixed port→ These are the large rectangular SFP ports clearly visible in the middle, not near the arrow.

This identification is important whentroubleshooting chassis-to-IOM connectivityor verifyingmodule status LEDsduring field maintenance.

After disconnecting the network cable from an SFP transceiver, theimmediate next step is to reinstall the dust plugsinto the optical bores. This action prevents contamination from dust or debris that can damage the optical interfaces or degrade performance.

It’s important to protect the exposed optical port before handling the rest of the transceiver module. Dust plugs help maintain the integrity of the component until a new cable or module is connected.

Cisco Nexus switchesare specifically designed for deployment indata centers, where they providehigh-performance, low-latency switchingto support modern workloads, virtualization, and cloud computing environments.

Nexus switches operate usingNX-OS, a purpose-built operating system optimized for data center needs. These switches support technologies like virtual port channels (vPC), FabricPath, and Application Centric Infrastructure (ACI), which are essential for scalable and highly available data center networks.

They are not typically used in branch offices, as wireless access points, or as edge routers.

Kickstart Image→ Specialized bootloader that initializes the hardware

System Image→ Contains the full NX-OS kernel and operating system

Global configuration command mode→ Provides access to the broadest range of commands that affect the device as a whole

EXEC command mode→ Allows for displaying device status and configuration information

This knowledge is covered underCisco IOS/NX-OS Software Basicsin the FLDTEC training:

Kickstart Image:Alightweight bootloader image that initializes hardware and launches the system image. It's comparable to ROMMON in traditional IOS devices.

System Image:Includes the full NX-OS operating system, services, drivers, and kernel required to run the device.

Global Configuration Mode:After entering privileged EXEC mode (enable), this mode allows changes to system-wide settings such as interfaces, routing protocols, and VLANs.

EXEC Mode:Has two levels—User EXECandPrivileged EXEC. User EXEC provides limited diagnostic commands, while Privileged EXEC allows more extensive system views (show commands, reload, etc.).

Understanding these layers is essential when maintaining or restoring NX-OS devices in field environments.

Before shutting down any Cisco collaboration device (such as an IP phone, video endpoint, or codec) for replacement, it is essential toback up the configuration. This ensures that all custom settings, including user profiles, network configurations, and service settings, are preserved and can be quickly restored on the replacement device.

This backup minimizes downtime and avoids manual reconfiguration errors during the swap process.

In a Cisco Nexus switch withdual power supplies, the recommended method is toconnect each power supply to a separate power source(Option C). This ensures power redundancy and fault tolerance.

If one power source fails (e.g., due to a power outage or circuit failure), the switch can continue operating uninterrupted using the second power source. Connecting both to a single source (Option D) defeats the purpose of redundancy.

Theinstall allcommand is the standard method used to install or upgrade Cisco NX-OS software on Nexus switches. This command streamlines the installation process by automating tasks such as verifying the software image, checking for compatibility, and managing the installation of optional packages or SMUs (Software Maintenance Upgrades). It ensures a comprehensive and efficient upgrade process, minimizing the potential for errors.​Cisco

In contrast:​

copy tftp: running-configis used to copy configuration files, not software images.

install kickstartis an outdated command from earlier NX-OS versions.

boot systemsets the boot variable but does not handle the full installation process.​

In Cisco Nexus switches, when transitioning from a single supervisor module to a dual supervisor configuration, the behavior depends on the redundancy mode configured.​

Stateful Switchover (SSO):In configurations supporting SSO, the active and standby supervisors synchronize their state and configuration, allowing for seamless failover without resetting other modules.​

Stateless Switchover (Warm Standby):In certain modes, such as the ACI-mode on Cisco Nexus 9508 switches, the standby supervisor does not maintain synchronized state information with the active supervisor. In this scenario, if a switchover occurs (e.g., due to the replacement of the active supervisor), all modules in the switch are reset because the switchover is stateless.​

Therefore, when a supervisor module is replaced in a configuration that does not support stateful switchover, all modules in the switch are reset due to the stateless nature of the switchover.​
