Apre-service checklistis a procedural step followed before replacing an endpoint. Its primary purpose is toconfirm that all resources, tools,documentation, and personnel are in placeto execute the replacement efficiently and without delays.

It helps avoid service interruptions and ensures a smooth replacement by ensuring that every necessary component and action is accounted for ahead of time.

Theshow flash:command is used todisplay the contents of the device's flash memory, which is where the Cisco IOS image is typically stored. By issuing this command, a technician can verify available space and determine whether there is enough capacity to accommodate a new IOS image before initiating an upgrade or image replacement process.

This command provides a detailed listing of files, their sizes, and the total and available memory space within the flash file system.

show file-systemlists all available file systems but doesn’t detail their content.

show memoryshows runtime memory usage (RAM), not flash memory.

show storageis not a standard IOS command.

In a Class B network, the default subnet mask is 255.255.0.0, which allocates:​

16 bits for the network portion

16 bits for the host portion​

When the subnet mask is changed to255.255.255.0, it becomes:​

24 bits for the network portion

8 bits for the host portion​

This indicates that8 bitshave been borrowed from the host portion to create additional subnets. Borrowing bits allows for the division of the original network into smaller sub-networks, enhancing organization and security within the network.​

Theideal resistance rangefor ESD wrist straps isbetween 1 and 10 megaohms. This range is sufficient to safely discharge static electricity from the technician to ground, while not allowing an abrupt discharge that could damage sensitive electronic components.

Values below 1 megaohm may result in a rapid discharge, risking damage.

Valuesabove 10 megaohms may not discharge static efficiently enough.

When configuring a terminal emulator (such as PuTTY, Tera Term, or HyperTerminal) to connect to the console port of a Cisco switch, the standard settings are as follows:​

Speed (baud rate): 9600This is the default transmission speed for Cisco console ports, ensuring compatibility across various devices.​

Data bits: 8This setting specifies that each character transmitted consists of 8 data bits, which is standard for most serial communications.​

Parity: NoneNo parity bit is used, meaning there is no additional error-checking bit appended to each character.​

Stop bits: 1One stop bit indicates the end of a character transmission.​

Flow control: NoneNo flow control is employed, allowing continuous data transmission without hardware or software-based pausing.​

Therefore, optionsC (Speed: 9600)andD (Data bits: 8)are correct. Options A (Stop bits: 2), B (Flow control: Hardware), and E (Parity: Even) deviate from the standard settings and may result in communication issues if configured.​

InInstall mode, thepackages.conffile plays a crucial role in the boot process of Cisco IOS XE Software. It specifies the list of software packages to be loaded and the sequence in which they should be initialized during system startup. This file ensures that all necessary components are correctly loaded, providing a modular and flexible approach to software management.​

Contrary to the other options:​

Thepackages.conffile does not extract the bin file; it references already extracted packages.

It does not contain the entire bundled image; that's characteristic of Bundle mode.

While it resides in the flash memory, it is not a subdirectory but a configuration file.​

This procedure is taught in theFLDTEC courseunder theDevice Configuration and Verificationsection and reflects standard field technician workflows:

Connect to the console portusing a console cable and terminal software (like PuTTY or Tera Term).

Access the CLIof the Cisco device by logging in via the console session.

Create a log fileor enable logging in the terminal emulator to begin capturing output.

Check the router statususing commands such as show running-config, show ip interface brief, or show version.

Save the output filefrom the terminal emulator for documentation, troubleshooting, or escalation.

This logical flow ensures accurate diagnostics and traceability during field support operations.

Cloud-based managementis a core feature of Cisco Merakiswitches and significantly simplifies the device replacement process. When a failed switch is replaced:

The new hardware can be claimed in the Meraki dashboard.

The previously assigned configuration is automatically applied to the replacement device.

This eliminates the need for local reconfiguration and ensures continuity with minimal manual effort.

This centralized approach ensures that configurations are stored securely and consistently applied across devices.

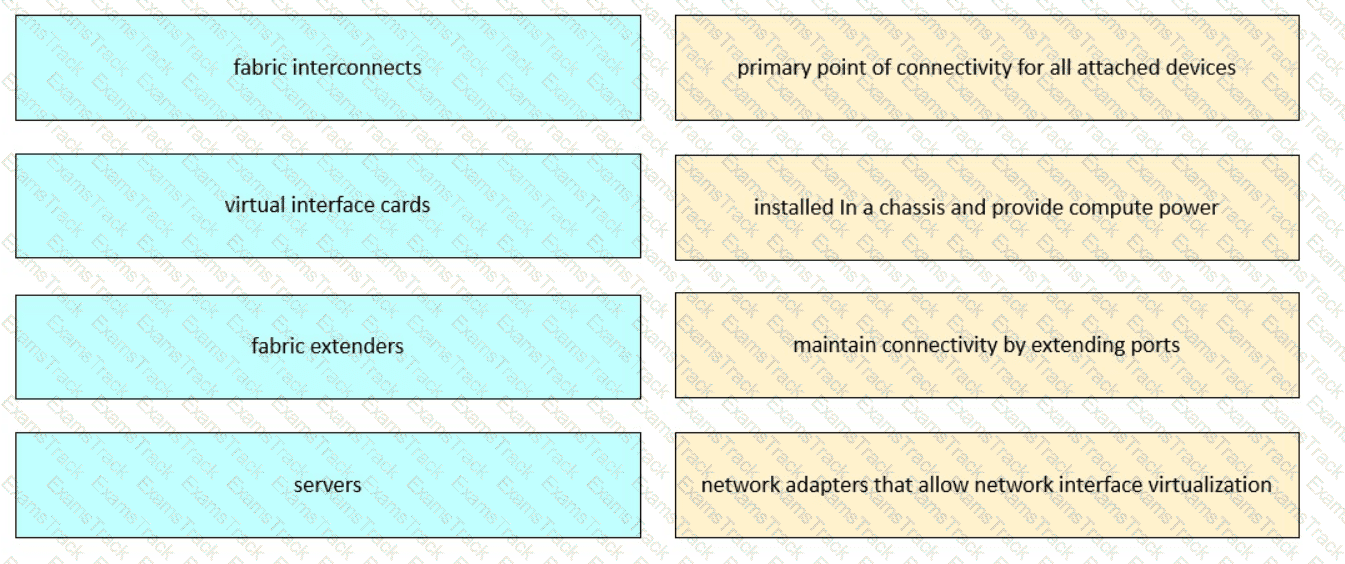

In the providedCisco UCS architecture diagram, the infrastructure consists of:

Two Fabric Interconnects (A and B), each connecting to:

Ethernet (LAN)

Fibre Channel (FC)

FCoE (Fibre Channel over Ethernet)

Both Fabric Interconnects are independently connected to bothCisco UCS Chassis 1 and 2through I/O Modules (IOMs).

This is theclassic active-active UCSdesign, providingfull path redundancyfor all traffic types:

LAN uplinksare handled separately by Fabric Interconnect B.

SAN trafficis distributed throughFC uplinksandFCoE uplinksvia Fabric Interconnects A and B.

Each server in the chassis canfail over its traffic to the alternate fabric if one interconnect fails.

This architecture guaranteesno single point of failure, which is essential inmission-critical environmentslike data centers and enterprise server farms.

In the context ofWide Area Networks (WANs), the key objective is to connect geographically separated networks using service provider infrastructure. The FLDTEC course emphasizes that WAN environments typically involve devices that can handle different physical transmission mediums and protocols.

Modems:

Modulate and demodulate analog signals to digital signals.

Used in WAN environments to connect over analog lines like DSL or leased lines.

Essential for interfacing between digital routers and analog telephone networks.

Optical Fiber Converters:

Also known asmedia converters, they are used to convert electrical signals to optical signals (and vice versa) for fiber transmission.

Common in WAN scenarios where long-distance high-speed transmission over fiber is required.

Incorrect Options:

A. Hubs: Obsolete Layer 1 devices used in LANs, not suitable for WANs.

D. Network Interface Cards (NICs): Used in end devices for LAN connectivity.

E. Wireless Access Points: Typically used in WLANs within local premises, not WAN infrastructure.

This aligns withCisco’s WAN architecture fundamentalsas highlighted in FLDTEC under “Cisco Equipment and Related Hardware.”
