In Revit, when editing a family in the Family Editor and reloading it into a project, Revit handles type changes using specific update rules. Types that are renamed overwrite their earlier version in the project because they retain the same internal type ID. Types that are added to the family also appear in the project once reloaded.

Initially, the family contains two types:

Above Counter

Plain

The changes made in the Family Editor are:

1️⃣ Rename Plain → Standard

2️⃣ Add a new type named GFCI

According to documented Revit behavior for type updates:

“When a family is reloaded into the project, any renamed family type replaces its previous version while maintaining its parameter assignments. Newly created types are added as additional family types available for placement within the project.”

Therefore:

Plain no longer exists because it was renamed

Standard now exists in its place

GFCI is added as a new family type

Above Counter remains unchanged

Thus, the family in the project now contains:

✅ Above Counter

✅ GFCI

✅ Standard

???? This matches answer choice:

B. Above Counter, GFCI, Standard

In Autodesk Revit, phasing is used to represent different stages of a project — for example, existing conditions, demolition, and new construction — all within a single model. Each view is assigned to a specific phase, and elements in that view are displayed according to their phase status (created, existing, demolished, or temporary).

According to the Autodesk Revit User’s Guide (Phasing and Phase Filters section):

“Each element in a project has 2 key phase-related parameters:

Phase Created – the phase in which the element was created.

Phase Demolished – the phase in which the element is demolished.These parameters control how elements display in different views depending on the view’s assigned phase and phase filter.”— Revit User’s Guide, Chapter: Phasing and Phase Filters

Revit automatically applies Graphic Overrides to display phase statuses. These are defined under Manage tab → Phases → Graphic Overrides. The categories include:

Existing

Demolished

New

Temporary

“Elements that are both created and demolished in the same phase are considered Temporary and display using the Temporary graphic override settings.”

— Revit MEP User’s Guide, Managing Phases and Graphic Overrides

Applying This to the Exhibit:

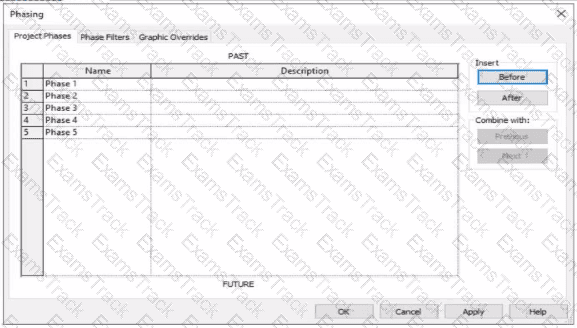

In the exhibit, the project includes multiple phases (Phase 1 through Phase 5). The designer is currently working in Phase 3.

Elements created and demolished in the same phase (Phase 3) are displayed as Temporary.

Elements created in earlier phases (e.g., Phase 1) and demolished in the current phase (Phase 3) are displayed as Demolished.

Elements created in later phases (e.g., Phase 4) do not yet exist and are not shown.

Therefore:

A. Elements that will be demolished in Phase 4 → not applicable; those elements are still active in Phase 3.

B. Elements created in Phase 1 and demolished in Phase 3 → will appear as Demolished, not Temporary.

C. Elements created and demolished in Phase 3 → correctly displayed using Temporary graphic overrides.

D. Elements created and demolished in Phase 2 → would not appear in Phase 3 (they were already removed).

Verified References from Revit Electrical Design Documentation:

Autodesk Revit MEP User’s Guide (2011), “Working with Phases”:

“Elements created and demolished in the same phase are shown using the Temporary phase graphic override settings.”

Autodesk Revit Architecture and MEP Official Study Guide, “Phasing and Phase Filters”:

“Temporary elements exist only during the phase in which they are created and demolished; they are displayed using the temporary override graphics.”

In Autodesk Revit, when an electrical designer creates a callout view, the software automatically generates a new dependent or independent view based on the selected callout type. However, if a callout is accidentally linked to the wrong or redundant view, the designer can easily reassign it to another existing view without recreating the callout. This can be done using the Reference Other View property in the Properties palette.

According to the Revit MEP User’s Guide (Chapter 47 “Views and Callouts”):

“To link a callout to an existing view rather than creating a new one, select the callout, and under the properties for that element, use Reference Other View to specify the desired target view.”

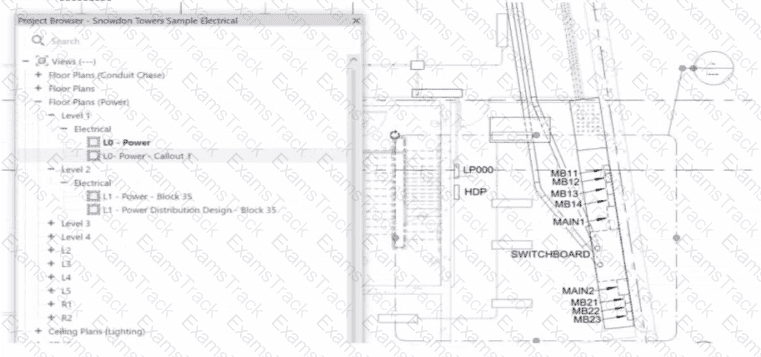

This means that when the designer selects the callout (in this case, shown as “L0 - Power - Callout 1” in the Project Browser), they can modify the Reference Other View setting from the Properties palette to point to a different, pre-existing detail view or callout view—for example, one showing an enlarged power distribution layout or switchboard detail.

This is the most efficient workflow because:

It avoids recreating or redrawing the callout (unlike Option C).

It preserves all annotation and sheet referencing data.

It ensures alignment and consistency across sheet references.

The Smithsonian Facilities Revit Template User’s Guide reinforces this standard Revit practice:

“When a view reference or callout is incorrectly associated, use the Reference Other View property to redirect the annotation to an existing detail or dependent view.”

Why the Other Options Are Incorrect:

B. Change its type from the Type Selector: Callout types control annotation style (not the referenced view).

C. Delete and recreate: This is unnecessary and inefficient.

D. Open the callout view and change its type: Callout type cannot be changed directly once created; it’s controlled by view properties.

Therefore, the correct and Revit-recommended approach is Option A: Select the callout and choose a detail view under Reference Other View.

In Autodesk Revit MEP, when working with electrical circuits, Revit visually differentiates elements based on their circuit membership and active selection during the circuit editing process. In the Edit Circuit mode, the software highlights elements connected to the active circuit in full color (black), while other electrical devices not part of that same circuit appear in halftone (gray).

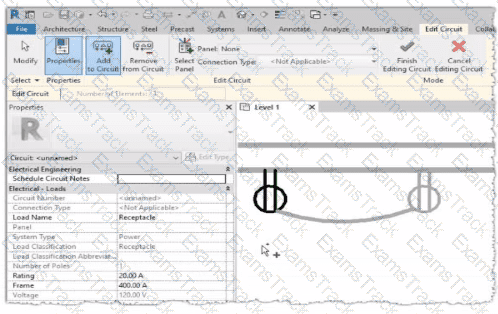

In the exhibit, one receptacle appears in black, while the other is shown in gray (halftone). This indicates that only one of the receptacles is currently included in the circuit being edited, while the other receptacle belongs to a different circuit or has not yet been assigned to any circuit.

According to the Autodesk Revit MEP User’s Guide (Electrical Systems – Circuits section):

“When editing a circuit, the components that belong to the selected circuit are highlighted in the active color, while other elements in the view appear in halftone. Devices that are not on the same circuit will not be shown as connected or editable until added to the current circuit.”

Therefore:

The black receptacle is the one actively included in the selected circuit.

The gray (halftone) receptacle is not on the same circuit and thus not active for editing.

This visual cue is Revit’s way of helping the designer distinguish between circuit connections when adding or managing electrical devices.

In Autodesk Revit, phasing allows designers to track existing, demolished, and new elements across different project stages. Every model element includes two key phasing parameters:

Phase Created — defines when the element was built or introduced.

Phase Demolished — defines when the element is removed or demolished.

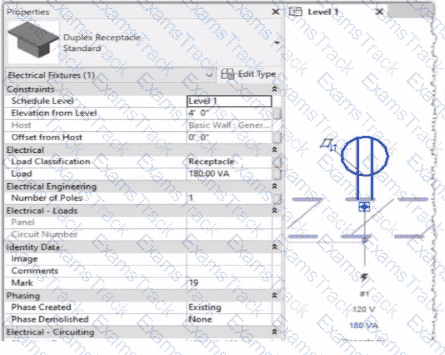

In the provided exhibits:

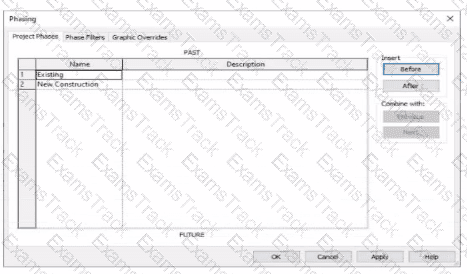

The project contains two phases: Existing and New Construction.

The receptacle’s Phase Created parameter is set to Existing, indicating it belongs to the pre-existing building condition.

The architectural wall hosting the receptacle is to be demolished during New Construction.

When a view’s Phase is set to New Construction and its Phase Filter is configured to show demolition, only elements whose Phase Demolished equals New Construction will appear as to be demolished. Therefore, the electrical designer must set the receptacle’s Phase Demolished value to New Construction so that it graphically displays as a demolished element in the demolition plan.

As explained in the Autodesk Revit MEP User’s Guide – Phasing and Coordination:

“Elements created in one phase and demolished in a subsequent phase must have their ‘Phase Demolished’ parameter set to that later phase to display properly in demolition views.”

Thus, to correctly coordinate with the demolition of its host wall, the receptacle must be flagged for demolition during New Construction.

In Autodesk Revit Electrical Design, ensuring that all electrical connectors are properly connected to circuits is critical to obtaining accurate load summaries and panel schedules. When nearing project completion, designers must confirm that every load (e.g., lighting fixture, power receptacle, or equipment) is associated with a circuit.

The Show Disconnects command is specifically designed to identify any electrical components whose connectors are not associated with a circuit or power system.

According to the Autodesk Revit MEP User’s Guide (Chapter: Electrical Systems – Checking Electrical Circuits):

“The Show Disconnects tool allows designers to visually identify elements in a project that contain electrical connectors not currently assigned to any circuit. Using this tool, Revit highlights unconnected components, helping to ensure load summaries and panel schedules accurately reflect all modeled elements.”

The command is found under Analyze tab ➤ Electrical panel ➤ Show Disconnects. It highlights any devices—such as lighting fixtures, receptacles, or equipment—that are not circuited, enabling correction before final load calculations are performed.

Other options explained:

A. Check Circuits: Verifies that existing circuits are complete, but it does not identify unconnected components.

B. System Browser: Lists systems hierarchically but does not flag disconnected devices.

C. Circuit Schedule: Displays circuit data only for connected components.

Hence, to identify unconnected elements before finalizing design documentation, the correct tool is Show Disconnects.

In Autodesk Revit, a drafting view is a 2D view that contains detail information not directly associated with the model. When an electrical designer needs to reuse a drafting view from another project (for example, standard details or symbols), the correct method is to use the Insert Views from File command under the Insert tab.

The Autodesk Revit MEP User’s Guide – Chapter 48 “Detailing” (page 1072) describes the process as follows:

“Inserting a Drafting View from Another Project

Click Insert tab ➤ Import panel ➤ Insert from File drop-down ➤ Insert Views from File.

In the Open dialog, select a project file, and click Open.

The Insert Views dialog opens, displaying all the views that are saved in that project.

Select the desired drafting views and click OK.”(Revit MEP User’s Guide, p. 1072)

This command imports the drafting view into the current Revit model while preserving annotations, filled regions, detail components, and text. It ensures that any standard electrical symbols, notes, or schematics created previously can be directly reused without rebuilding the detail from scratch.

If any duplicate type names exist, Revit automatically uses the types and properties from the current project, displaying a warning if necessary.

“Revit MEP creates a new drafting view with all the 2D components and text. If you have duplicate type names, the type name and properties from the current project are used.”

(Revit MEP User’s Guide, p. 1072)

Supporting Documentation Extracts:

“Saving Drafting Views to an External Project

Select a drafting view in the Project Browser.

Right-click the view name, and click Save to New File.”(Revit MEP User’s Guide, p. 1071)

“The saved project can then be used later to insert drafting views into another Revit project using Insert Views from File.”

(Revit MEP User’s Guide, p. 1072)

In Autodesk Revit, the Worksharing Display Modes feature allows designers to visually inspect ownership and editing information about elements in a workshared model.

According to the Autodesk Revit MEP User Guide – Chapter 54 “Working in a Team”:

“Worksharing Display Modes can be used to visualize the ownership of elements, including which user created or modified them. For example, you can use the Worksharing Display command to show elements by their owner, workset, or checkout status.”

Thus, this mode identifies which user created or owns an element — making B. Worksharing display modes the correct choice.

Other options:

A. Gray Inactive Worksets: Only shows non-active worksets in gray, not creator info.

C. Show History: Displays synchronization comments, not element ownership.

D. Worksets dialog: Shows ownership of worksets, not individual elements.
