The BIM manager should perform a gap analysis between the client’s BEP-defined gateway requirements and the firm’s standard quality-control checklist. The internal checklist may address common model-health and documentation criteria, but it cannot be assumed to cover every project-specific submission, approval, information, or coordination requirement.

Any client requirement not represented in the standard checklist should be incorporated into the project review process. Creating trackable issues or review actions in the Common Data Environment provides assigned responsibility, due dates, supporting evidence, status visibility, and an auditable closure record before each gateway.

Granting the client model access does not demonstrate that the design team has completed the required review. Placing a PDF on the Revit opening view may improve awareness but does not establish compliance, accountability, or verification. Model phases also represent temporal construction conditions and should not be manipulated merely to correspond with project-management milestones such as Design Development.

The milestone process should culminate in documented evidence that each requirement was reviewed, passed, conditionally accepted, or formally resolved before the project advances to the next stage.

Reference topics: BEP compliance; milestone and gateway reviews; quality-control checklists; gap analysis; issue tracking; project-specific standards.

===============

A country-specific Mechanical Equipment family template should use the measurement system and unit formatting expected in the target market. This includes the appropriate conventions for dimensions, flow, pressure, power, temperature, electrical values, and other discipline-specific quantities. Establishing units in the template ensures that family authors enter, interpret, test, and document parameter values consistently from the beginning of content development.

Object Styles govern the graphical representation of family categories and subcategories; they do not translate the family into a country’s official language. Parameter classification as Type or Instance must be determined according to the intended behavior of each value. For example, manufacturer and nominal-capacity information may be type-based, while asset identifiers or installation-specific values may be instance-based. Setting every parameter to Instance would therefore produce poorly structured content.

Project Location concerns geographical and environmental project settings and is not the principal country-standard setting for a reusable equipment family. A family template is intended to be loaded into many projects, so its numerical conventions must align with the regional standards under which the content will be authored and used.

Reference topics: Revit family-template standards; regional content development; project and family units; mechanical equipment parameters; corporate content libraries.

===============

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============

A structured performance audit is the correct starting point because it evaluates the model comprehensively rather than assuming a single cause. The review should examine warning quantity and severity, file size, imported or linked CAD data, excessive views, unused content, model groups, in-place families, highly detailed components, workset configuration, and other authoring practices that can increase regeneration time and memory consumption.

In-place families are particularly relevant because numerous or geometrically complex instances can make the model difficult to maintain and may increase computational overhead. Warning trends also matter: some warnings create repeated relationship checking or indicate poor modelling practices, although warning count alone does not determine performance.

Deleting sheets or exporting only 3D views damages the project’s documentation structure and does not constitute a controlled health-improvement strategy. Clash reports evaluate multidisciplinary spatial conflicts; they do not diagnose the internal efficiency of the submitted Revit model. Loading linked files individually can be useful later when evidence specifically implicates a link, but it is too narrow as the primary health assessment.

The audit should produce documented findings, prioritized recommendations, and measurable actions that the consultant can implement without compromising required project deliverables.

Reference topics: Revit model-health audits; performance management; warnings; in-place families; file-size analysis; consultant model review; coordination readiness.

Parameters Service

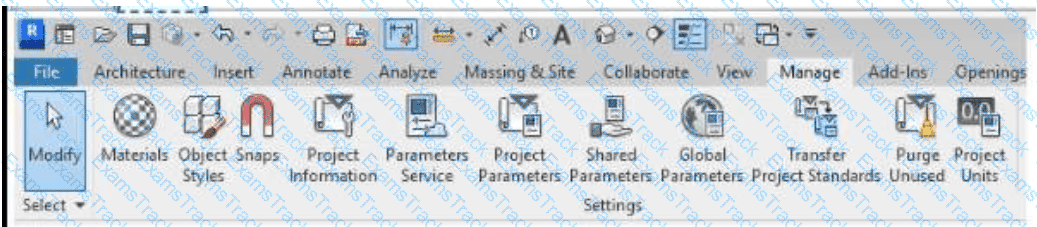

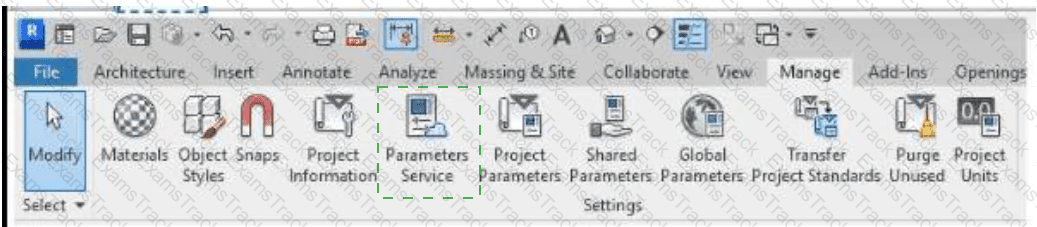

The team member should select Parameters Service on the Manage ribbon. The exhibit specifically shows this tool between Project Information and Project Parameters. The Parameters Service provides a centralized method for accessing and applying approved parameter definitions that have been made available to the organization. Because the BIM manager has already extracted the client’s custom shared parameters into that service, the project team should consume those controlled definitions from the same source.

This workflow supports parameter governance by reducing the risk of users creating duplicate parameters with similar names, selecting outdated shared-parameter definitions, or introducing parameters with incompatible identifiers, data types, disciplines, or grouping. A shared parameter is not defined solely by its displayed name; its underlying definition must remain consistent for reliable scheduling, tagging, filtering, exporting, and cross-project data exchange.

The Project Parameters tool is used to create or bind parameter definitions within a project, but it is not the designated interface for retrieving the organization’s centrally managed definitions in this scenario. The Shared Parameters command manages conventional shared-parameter files, while Global Parameters control design relationships inside a project and do not serve this data-standardization purpose.

Reference topics: Parameters Service; shared-parameter governance; centralized BIM standards; parameter consistency; project data requirements; reusable corporate content.

===============

The timing of the performance degradation strongly indicates that one or more recently distributed links, or their access paths, should be isolated before undertaking invasive model changes. Opening the project through Specify Worksets allows the BIM manager to control which worksets are loaded. Where Revit links are assigned to dedicated worksets, the manager can initially close those worksets, assess baseline performance, and then load them selectively. If the model performs normally with linked-model worksets closed, the investigation has established a defensible connection between the slowdown and the updated external references.

The Manage Links dialog should then be reviewed for link status, saved paths, path type, file availability, and unexpected network or cloud locations. A valid link may still degrade access when it resolves through an inaccessible, high-latency, or inconsistent location.

Flattening linked geometry is not a standard Revit troubleshooting operation. Removing and recreating every link is unnecessarily destructive and can compromise positioning, visibility overrides, and coordination settings. Consultant warnings may warrant separate health reviews, but indiscriminately fixing every warning is neither an efficient first diagnostic step nor normally within the host team’s model authority.

Reference topics: Linked-model troubleshooting; workset loading; Manage Links; model-performance isolation; distributed-file validation; Revit model health.

===============

Because the host model itself has not changed, the first investigation should focus on how the external references are being resolved. Relative paths depend on the relationship between the host file and the linked files within the project folder structure. If a folder was renamed, relocated, synchronized differently, or omitted from a distributed package, Revit may no longer locate the linked models even though the links remain correctly configured in the host.

The BIM manager should review the link status and saved paths in Manage Links , confirm that the referenced files still exist, and compare the current folder structure with the approved project structure. Access permissions, cloud synchronization status, and network availability should also be checked where applicable.

Converting all references to absolute paths would make the links dependent on a specific drive or network location and commonly causes failures for other users. Removing and reinserting links risks losing positioning, pinning, display overrides, workset assignments, and coordination history. Rebuilding the host from backup is disproportionate and does not address an external path or access failure.

Reference topics: Manage Links; relative file paths; federated-model folder structures; reference resolution; link-status troubleshooting; Common Data Environment access.

===============

The BIM manager should first test whether the client’s data definitions and templates can support consistent production across all participating regions and disciplines. Shared-parameter files and naming conventions must be reviewed because inconsistent parameter definitions, duplicate identifiers, regional naming variations, or conflicting classifications can compromise schedules, model checking, data exports, and asset-information delivery.

The project templates must also be evaluated for units, naming structures, view organization, browser conventions, coordinates, and other coordination-critical settings. On a fast-track project, deficiencies in these baseline resources will be replicated rapidly across many models and become expensive to correct after production begins.

Training and software access are valid mobilization concerns, particularly with a new collaboration platform, but they do not establish whether the client’s actual BIM standards and templates are technically coherent. Sample sheets and title blocks primarily reveal graphical preferences rather than digital-delivery capability. Allowing unrestricted discipline customization would weaken standardization and increase coordination risk.

Options A and B directly assess whether the client’s existing resources provide a consistent data and model-authoring foundation for distributed, high-velocity delivery.

Reference topics: Client-standard assessment; template validation; shared-parameter governance; naming conventions; regional consistency; project mobilization.

===============

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

The training programme should focus on the technologies directly supporting iterative option generation, environmental evaluation, and cloud-based stakeholder review. Generative-design methods allow the team to systematically explore multiple façade or planning alternatives using defined goals, constraints, and measurable outcomes. This is more appropriate than manually producing disconnected options under a compressed schedule.

Autodesk Forma and its site-design capabilities support early-stage design development, option comparison, contextual review, and environmental analysis. These workflows are particularly valuable for a geographically distributed team because design alternatives and analysis results can be prepared consistently for recurring client meetings. Training should include option creation, analysis interpretation, naming and version conventions, presentation workflows, and the method for documenting decisions against the client’s sustainability criteria.

AutoCAD and Civil 3D are not the principal tools required for the stated façade-option and energy-analysis workflow. Sustainability certification training may be beneficial at an organizational level, but it does not replace practical project-specific instruction in the applications and computational methods the team must operate each week.

Reference topics: Project technology assessment; Autodesk Forma; Forma Site Design; generative design; environmental analysis; distributed-team training; design-option evaluation.

===============
