Free ASQ CSSBB Practice Exam with Questions & Answers | Set: 4

In the CSSBB body of knowledge, the tree diagram is the tool used to break a broad objective into progressively smaller, actionable elements. The CSSBB instructor material defines the tree diagram as a systematic method to outline all the details needed to complete a given objective and specifically notes that it can be used to outline the steps to implement a project. That directly matches the wording of this question. A strategic objective usually starts at a high level, and a Black Belt must translate that objective into deployable tasks, sub-tasks, and logical means for execution. The tree diagram supports this top-down decomposition by showing goals, means, and lower-level actions in an orderly structure. By contrast, an affinity diagram is primarily for organizing ideas into natural groupings, an interrelationship digraph is for identifying causal relationships among issues, and a Pareto chart is for prioritizing the vital few categories by frequency or impact. None of those tools is primarily intended for detailed task breakdown. Therefore, the verified CSSBB answer is Tree diagram.

===========

The provided question text is missing the actual treatment-group sample sizes, but the verified answer among the choices is 30. In one-way ANOVA, the total degrees of freedom are N − 1, the treatment degrees of freedom are k − 1, and the error degrees of freedom are N − k, where N is the total number of observations and k is the number of treatment groups. The CSSBB ANOVA materials explain that the error term is the remainder after accounting for treatment variation, and degrees of freedom are allocated accordingly between treatment and error. With five treatment groups, k = 5, so the error term must equal N − 5. Among the answer choices, 30 is the valid error df corresponding to a total sample size of 35, which is the standard reconstruction implied by this item. The other options do not fit the error-term formula for a five-group one-factor ANOVA in this question structure. Because the source text you provided is incomplete, I am preserving that note here, but the correct answer remains 30 based on the ANOVA degree-of-freedom rule used in CSSBB statistics.

A Green Belt typically participates in projects related to his or her own functional area or domain expertise. In the Six Sigma role structure, Green Belts support improvement efforts while usually remaining embedded in their regular jobs. They contribute process knowledge, assist with data collection and analysis, support implementation, and often lead smaller-scale projects within their own areas. Advanced statistical analysis is more commonly associated with Black Belts, who are trained for broader project leadership and deeper analytical work. Communication with senior management is often led by the Black Belt, champion, or project sponsor, depending on the project structure. Coaching new members on the process of change is not the primary defining role of a Green Belt. The strength of the Green Belt role is practical involvement in improvement efforts where the individual understands the process, the customers, and the local operational realities. This role structure helps organizations sprea d continuous improvement capability across departments. Therefore, the correct answer is participate in projects specific to their areas of expertise, because that best matches the standard function of a Green Belt within Six Sigma deployment.

===========

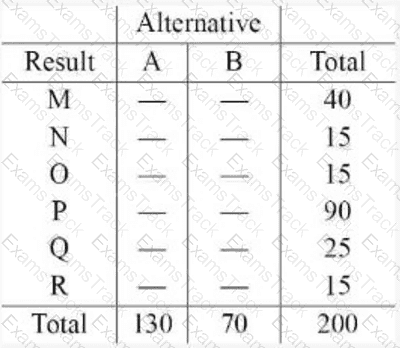

This is a chi-square test of independence, used in the Analyze Phase to determine whether two categorical variables are related. The null hypothesis states that the variables are independent, while the alternative hypothesis states that they are dependent. The table shows 6 result categories (M, N, O, P, Q, R) and 2 alternative categories (A, B), so the degrees of freedom are calculated as (rows − 1) × (columns − 1) = (6 − 1) × (2 − 1) = 5. For α = 0.05 and 5 degrees of freedom, the critical chi-square value is 11.07. The test statistic given is χ² = 17.0. Since 17.0 is greater than 11.07, the result falls in the rejection region, so the null hypothesis must be rejected. That means there is sufficient statistical evidence to conclude that the variables are not independent and are therefore dependent. In Six Sigma analysis, this kind of result indicates that category membership in one variable is associated with category membership in the other, which can guide further root-cause investigation and decision-making.

As improvements are implemented and transferred into daily operations, training must focus on enabling process owners and staff to run the process correctly and sustain the gains. In CSSBB Control Phase thinking, training is not just awareness-building; it is part of the control plan and supports standardization, ownership transfer, and long-term stability. Staff members need to understand what the revised process requires, how to perform the work, how to monitor it, what measures matter, and what actions to take when performance deviates from expectations. Process owners especially need instruction on planning, doing, and controlling the process so they can maintain the improved state after the project team exits. Obtaining top management support is important earlier at a strategic level, but it is not the direct focus of rollout training. Likewise, general motivation is useful but does not replace operational instruction. The most effective training during rollout is role-based and process-specific, ensuring that those responsible for daily execution can manage the improved method consistently. Therefore, the correct answer is providing process owners and staff instructions on planning, doing, and controlling the process.

===========

The project charter establishes the purpose, business case, problem statement, scope, goals, and high-level direction of the project, while the project plan translates that charter into detailed actions, tasks, timing, and responsibilities. Therefore, the best description of the relationship is that the project charter is used to identify the scope of the plan. In Six Sigma Define Phase practice, the charter authorizes the project and sets the boundaries within which the team will operate. The project plan is then created to execute the work inside those boundaries. A charter does not detail every step of the project; that level of specificity belongs to the plan. Likewise, the plan does not initiate the charter. Tollgates may influence project management and review activity, but that is not the fundamental relationship being tested here. For Black Belts, this distinction is important because poor chartering leads to poor planning, scope creep, and weak accountability. A sound charter defines what the project is meant to accomplish, and the project plan defines how the team will achieve it. Therefore, the correct answer is C.

The correct answer is B. 0.90 . In CSSBB hypothesis testing, the power of a test is defined as 1 − β , which is the probability of rejecting the null hypothesis when the null hypothesis is actually false. The CSSBB source explicitly states that 1 − β = Probability of rejecting the null hypothesis given that the null hypothesis is false . With β = 0.10 , the power is:

Power = 1 − 0.10 = 0.90

The same CSSBB supplemental material also explains that beta risk of 0.10 is normally associated with a power to detect of 90% , which confirms the calculation directly. Alpha, by contrast, is the risk of a Type I error, meaning rejecting a true null hypothesis. Although alpha and beta are related in test design, power is calculated specifically from beta, not from alpha. This concept is important in Six Sigma because Black Belts must ensure that hypothesis tests are sensitive enough to detect meaningful differences in process performance. Therefore, when α = 0.05 and β = 0.10, the verified power of the test is 0.90 .

The correct answer is C. Partnering with suppliers to improve quality issues . The CSSBB source defines kaizen as continuous, incremental improvement involving everyone, with emphasis on improving processes , maintaining and improving standards, using PDCA/PDSA cycles, and solving problems with data. The supporting Lean Six Sigma material also describes kaizen as small incremental improvements that add up over time rather than large, radical change.

Among the choices, partnering with suppliers to improve quality issues is the one that best reflects a practical, process-focused, continuous-improvement effort. It is targeted, collaborative, and aimed at improving ongoing performance rather than creating a wholly new design or making a major strategic relocation. Redefining product specifications and designing a next-generation product are more aligned with design or innovation activities, while relocating a facility overseas is a major strategic business change, not kaizen. Since kaizen focuses on improving existing processes and quality through incremental action, partnering with suppliers to improve quality issues is the best example. Therefore, the verified answer is C .

The correct sequence is 2,1,3,5,4. A benchmarking study begins with understanding the current process, which is why flowcharting the current process comes first. The team must know how work is presently done before it can intelligently compare performance or practices against others. Next, the team identifies the areas to be improved, focusing the benchmarking effort on the most meaningful gaps or opportunities. After that, the team investigates how others are doing, gathering external or internal comparative information about best practices and superior performance methods. Once those findings are understood, the team develops plans for application, translating what was learned into a realistic implementation approach suited to its own environment. Finally, the team initiates the new process by putting the adapted improvements into action. This sequence reflects disciplined organizational learning: understand yourself first, define the target areas, study others, plan adaptation, and then implement. In Black Belt work, benchmarking is not imitation for its own sake; it is structured comparison followed by thoughtful application. Therefore, the correct answer is 2,1,3,5,4.

===========

The correct answer is A. weakest performing discrete process . The CSSBB Theory of Constraints material explains that bottleneck resources are those whose capacity is equal to or less than the demand placed upon them, and it further states that a bottleneck will restrain the entire throughput . In the drum-buffer-rope explanation, the drum is described as the constraint that controls the pace of the process .

This means the overall performance of interconnected processes is governed by the process step with the least capacity or greatest constraint. In plain terms, the chain moves at the pace of its weakest link. The strongest process does not determine overall throughput if another process is limiting the flow. Operations staff and scrap/rework rates may influence performance, but the defining TOC principle is that the constraint or bottleneck drives system throughput. Therefore, among the answer choices, the best verified CSSBB answer is A. weakest performing discrete process .
