Questions 1

What is the default trap severity for system messages?

Options:

Debugging

Informational

Notice

Warning

Riverbed 830-01 Premium Access

Braedon

08-Aug-2025

examstrack.com's competent team of IT experts ensured I was well-prepared for the 830-01 exam. Guaranteed success!

Questions 2

What port number is configured on a Steelhead appliance to communicate to the TACACS+ server?

Options:

1645

1646

1812

389

Questions 3

Which of the following authentication methods are supported by the Steelhead appliance?

Options:

RADIUS and Local

TACACS and Local

TACACS, RADIUS, and Local

TACACS, Kerberos, and Local

TACACS, RADIUS, Kerberos, and Local

Questions 4

A customer's network consists of a data center with an Interceptor appliance and a Steelhead appliance cluster and several remote sites each with Steelhead appliances.

You would like to pass-through an application unoptimized due to a suspected problem and are provided the following information:

The application uses a static TCP port, 15000.

The application is initiated from the remote site machines.

The same servers which host the application host several other applications as well.

Based on the information provided which option will allow the application to pass-through:

Options:

Configure in-path rules on the Interceptor appliance to pass-through destination TCP port 15000

Configure in-path rules on the data center Steelhead appliances to pass-through the server IP addresses

Configure a peering rule on the Interceptor appliance to pass-through destination TCP port 15000

Configure a load-balancing rule on the Interceptor appliance to pass-through destination TCP port 15000

Stop the Interceptor appliance service

Questions 5

One of the Steelhead appliances in your Steelhead appliance cluster is running an older version of RiOS. You decide to schedule a change window to upgrade that Steelhead appliance's image to the current release. What should you do to ensure that the Steelhead appliance optimization still occurs and the upgraded Steelhead appliance no longer accepts new connections?

Options:

Enable the “no in-path accept new” CLI command

Create an in-path rule on the Steelhead appliance to bypass the connections

On the Interceptor appliance, click on “Pause” for that particular Steelhead appliance

Schedule a job on the Steelhead appliance to remove itself from the cluster

All of the above

Questions 6

For a new connection, a Load Balancing rule matches but none of the target Steelhead appliances in the rule are available. What will happen to the new connection?

Options:

The connection is passed through

The next rule in the list is examined

The Interceptor appliance triggers an alarm

The Interceptor appliance discontinues redirecting any new connections and places this rule in admissions control

Questions 7

Under what circumstances would there be GRE traffic between the Interceptor and Steelhead appliances?

Options:

Throughout the entire lifespan of a connection

During connection teardown

During connection setup

GRE is not used but L2 is used during the entire connection

GRE is never used between the Interceptor and Steelhead appliances

Questions 8

The Steelhead Mobile client on your laptop is showing a status of “Firewalled”. What is the problem?

Options:

Port 7800 is being blocked between the Steelhead Mobile Controller and the Steelhead appliance

Port 7810 is being blocked between the Steelhead Mobile client and the Steelhead appliance

Port 7801 is being blocked between the Steelhead Mobile client and the Windows TCP Stack

Port 7850 is being blocked between the Steelhead Mobile Controller and the Steelhead appliance

Port 7801 is being blocked between the Steelhead Mobile Controller and the Steelhead appliance

Questions 9

When using TACACS+ or RADIUS to authenticate management access to the CMC appliance, which of the following is true?

Options:

You are required to supply login credentials to every Steelhead appliance

You will automatically be logged into to every Steelhead appliance

All users will use the same user name and password

It is not possible to use TACACS+ or RADIUS

Questions 10

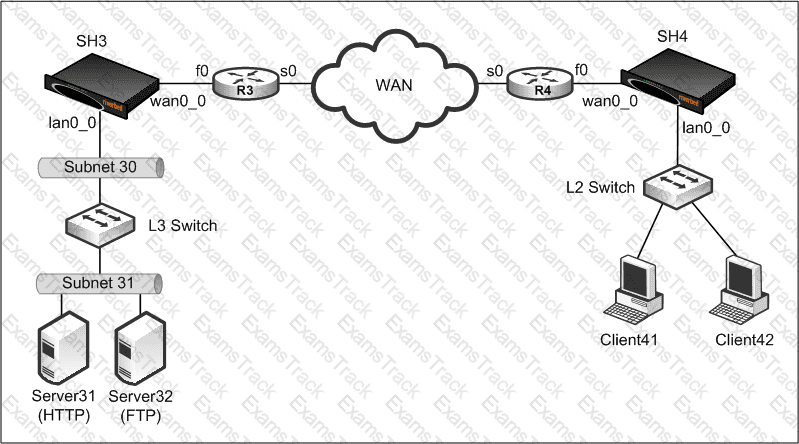

Refer to the exhibit.

830-01 Question 10

In the accompanying exhibit, SH3 and SH4 are able to optimize FTP and HTTP sessions between Client41 and the respective application hosts Server31 and Server32. However, optimization does not happen for Client42 and these application hosts. A quick check on SH3 and SH4 registers neither optimized nor pass-through traffic from Client42. Client42 is able to ping Client41 and the in-path address of SH4. Note that SH3 and SH4 are in auto-discovery mode. What is the likely cause?

Options:

The default gateway of Client41 is configured wrong

The default gateway of Client42 is configured wrong

The default gateway of SH3 is configured wrong

The default gateway of SH4 is configured wrong

The routing protocol between R3 and R4 is configured wrong
