No

subnet1(WM1->NSG1 outbound->NSG10 outbound)->subnet2(NSG1 inbound->NSG11 inbound->VM2)

Yes

NSG10 blocks ICMP from VNet4 (source 10.10.0.0/16) but it is not blocked from VM2ג€™s subnet (VNet1/Subnet2).

No

NSG11 blocks RDP (port TCP 3389) destined for ג€˜VirtualNetworkג€™. VirtualNetwork is a service tag and means the address space of the virtual network (VNet1) which in this case is 10.1.0.0/16. Therefore, RDP traffic from subnet2 to anywhere else in VNet1 is blocked.

NGS1 only

VM2, VM3, VM4 and VM5

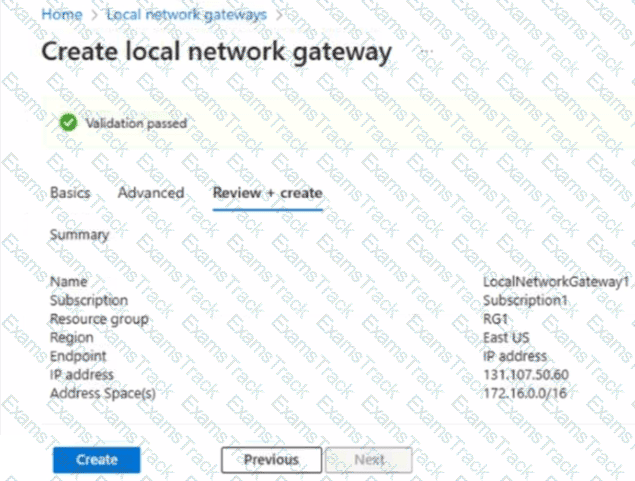

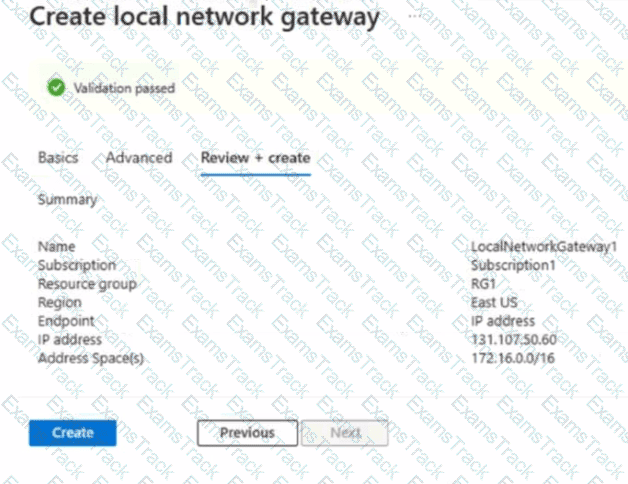

Here are the steps and explanations for creating the object that will provide the IP addressing configuration of the on-premises network to the Site-to-Site VPN:

The object that you need to create is called a local network gateway. A local network gateway represents your on-premises network and VPN device in Azure. It contains the public IP address of your VPN device and the address prefixes of your on-premises network that you want to connect to the Azure virtual network1.

To create a local network gateway, you need to go to the Azure portal and select Create a resource. Search for local network gateway, select Local network gateway, then select Create2.

On the Create local network gateway page, enter or select the following information and accept the defaults for the remaining settings:

Name: Type a unique name for your local network gateway.

IP address: Type the public IP address of your VPN device, which is 131.107.50.60 in this case.

Address space: Type the internal address range of your on-premises network, which is 10.10.0.0/16 in this case.

Subscription: Select your subscription name.

Resource group: Select your resource group name.

Location: Select the same region as your virtual network.

Select Review + create and then select Create to create your local network gateway2.

on:

Here are the steps and explanations for creating a policy that can be linked to the planned application gateway and block connections from IP addresses in the 131.107.150.0/24 range:

To create a policy, you need to go to the Azure portal and select Create a resource. Search for WAF, select Web Application Firewall, then select Create1.

On the Create a WAF policy page, Basics tab, enter or select the following information and accept the defaults for the remaining settings:

Policy for: Regional WAF (Application Gateway)

Subscription: Select your subscription name

Resource group: Select your resource group

Policy name: Type a unique name for your WAF policy

On the Custom rules tab, select Add a rule to create a custom rule that blocks connections from IP addresses in the 131.107.150.0/24 range2. Enter or select the following information for the custom rule:

Rule name: Type a unique name for your custom rule

Priority: Type a number that indicates the order of evaluation for this rule

Rule type: Select Match rule

Match variable: Select RemoteAddr

Operator: Select IPMatch

Match values: Type 131.107.150.0/24

Action: Select Block

On the Review + create tab, review your settings and select Create to create your WAF policy1.

To link your policy to the planned application gateway, you need to go to the Application Gateway service in the Azure portal and select your application gateway3.

On the Web application firewall tab, select your WAF policy from the drop-down list and select Save

To ensure that only hosts on VNET1 can access the slcnage42150372 storage account and that access occurs over the Azure backbone network, you can use Azure Private Endpoints. This method secures the connection by assigning a private IP address from your virtual network to the storage account, ensuring that traffic does not traverse the public internet.

Step-by-Step Solution

Step 1: Create a Private Endpoint for the Storage Account

Navigate to the Azure Portal.

Search for “Storage accounts” and select the slcnage42150372 storage account.

In the storage account blade, select “Networking” under the “Security + networking” section.

Under “Private endpoint connections”, click on “Add private endpoint”.

Enter the following details:

Name: Enter a name for the private endpoint (e.g., PrivateEndpoint-VNET1).

Region: Select the same region as your virtual network (VNET1).

Click on “Next: Resource”.

Step 2: Configure the Resource

Select “Target sub-resource”: Choose the storage service you want to connect to (e.g., blob, file, queue, table).

Click on “Next: Virtual network”.

Step 3: Select the Virtual Network and Subnet

Select the virtual network: Choose VNET1.

Select the subnet: Choose the appropriate subnet within VNET1.

Click on “Next: Configuration”.

Step 4: Configure DNS Integration (Optional)

Configure DNS settings if needed to ensure proper name resolution within your virtual network.

Click on “Next: Tags”, add any tags if necessary, and then click on “Review + create”.

Review your settings and click on “Create”.

Step 5: Restrict Public Network Access

Navigate back to the storage account.

Select “Networking” under the “Security + networking” section.

Under “Firewalls and virtual networks”, select “Selected networks”.

Ensure that only VNET1 is listed under the virtual networks section.

Click on “Save”.

Explanation

Private Endpoints: These provide secure connectivity to Azure services by assigning a private IP address from your VNet to the service, ensuring that traffic stays within the Azure backbone network12.

Firewall and Virtual Networks: Configuring the storage account to allow access only from selected networks (VNET1) ensures that no other network can access the storage account3.

By following these steps, you can ensure that only hosts on VNET1 can access the slcnage42150372 storage account, and that all access occurs over the secure Azure backbone network.

Here are the steps and explanations for ensuring that all hosts deployed to subnet3-2 connect to the internet by using the same static public IP address:

To use the same static public IP address for multiple hosts, you need to create a NAT gateway and associate it with subnet3-2. A NAT gateway is a resource that performs network address translation (NAT) for outbound traffic from a subnet1. It allows you to use a single public IP address for multiple private IP addresses2.

To create a NAT gateway, you need to go to the Azure portal and select Create a resource. Search for NAT gateway, select NAT gateway, then select Create3.

On the Create a NAT gateway page, enter or select the following information and accept the defaults for the remaining settings:

Subscription: Select your subscription name

Resource group: Select your resource group

Name: Type a unique name for your NAT gateway

Region: Select the same region as your virtual network

Public IP address: Select Create new and type a name for your public IP address. Select Standard as the SKU and Static as the assignment method4.

Select Review + create and then select Create to create your NAT gateway3.

To associate the NAT gateway with subnet3-2, you need to go to the Virtual networks service in the Azure portal and select your virtual network.

On the Virtual network page, select Subnets under Settings, and then select subnet3-2 from the list.

On the Edit subnet page, under NAT gateway, select your NAT gateway from the drop-down list. Then select Save.

To deploy a firewall to subnetl-2, you need to create a network virtual appliance (NVA) in the same virtual network as subnetl-2. An NVA is a virtual machine that performs network functions, such as firewall, routing, or load balancing1.

To create an NVA, you need to create a virtual machine in the Azure portal and select an image that has the firewall software installed. You can choose from the Azure Marketplace or upload your own image2.

To assign the IP address of 10.1.2.4 to the NVA, you need to create a static private IP address for the network interface of the virtual machine. You can do this in the IP configurations settings of the network interface3.

To ensure that traffic from subnetl-1 to the IP address range of 192.168.10.0/24 is routed through the NVA, you need to create a user-defined route (UDR) table and associate it with subnetl-1. A UDR table allows you to override the default routing behavior of Azure and specify custom routes for your subnets4.

To create a UDR table, you need to go to the Route tables service in the Azure portal and select + Create. You can give a name and a resource group for the route table5.

To create a custom route, you need to select Routes in the route table and select + Add. You can enter the following information for the route5:

Destination: 192.168.10.0/24

Next hop type: Virtual appliance

Next hop address: 10.1.2.4

To associate the route table with subnetl-1, you need to select Subnets in the route table and select + Associate. You can select the virtual network and subnet that you want to associate with the route table5.

To ensure that hosts on VNET1 and VNET2 can communicate with minimal latency, you can use Virtual Network Peering. This method connects the two virtual networks directly through the Microsoft backbone network, ensuring low-latency and high-bandwidth communication.

Step-by-Step Solution

Step 1: Set Up Virtual Network Peering

Navigate to the Azure Portal.

Search for “Virtual networks” and select VNET1.

In the left-hand menu, select “Peerings” under the “Settings” section.

Click on “Add” to create a new peering.

Enter the following details:

Name: Enter a name for the peering (e.g., VNET1-to-VNET2).

Peer virtual network: Select VNET2.

Allow virtual network access: Ensure this is enabled.

Allow forwarded traffic: Enable if needed.

Allow gateway transit: Enable if needed.

Click on “Add”.

Step 2: Configure Peering on VNET2

Navigate to VNET2 in the Azure Portal.

In the left-hand menu, select “Peerings” under the “Settings” section.

Click on “Add” to create a new peering.

Enter the following details:

Name: Enter a name for the peering (e.g., VNET2-to-VNET1).

Peer virtual network: Select VNET1.

Allow virtual network access: Ensure this is enabled.

Allow forwarded traffic: Enable if needed.

Allow gateway transit: Enable if needed.

Click on “Add”.

Explanation

Virtual Network Peering: This feature connects two virtual networks in the same or different regions, allowing resources in both networks to communicate with each other as if they were part of the same network. The traffic between peered virtual networks uses the Microsoft backbone infrastructure, ensuring low latency and high bandwidth12.

Allow Virtual Network Access: This setting ensures that the virtual networks can communicate with each other.

Allow Forwarded Traffic: This setting allows traffic forwarded from a network security appliance in the peered virtual network.

Allow Gateway Transit: This setting allows the peered virtual network to use the gateway in the local virtual network.

By following these steps, you can ensure that hosts on VNET1 and VNET2 can communicate with minimal latency, leveraging the high-speed Microsoft backbone network.
