In Juniper Apstra 5.1, the Event Log is a centralized record used for auditing and operational visibility. It includes audit events (user/system actions) and anomaly-related alerts (events generated when Apstra detects abnormal conditions). In Apstra documentation, anomaly entries are explicitly treated as “Alert” records with high severity, meaning the Event Log is a valid place to review anomaly notifications and their associated details. Therefore, the statement that the Event Log stores alerts for anomalies is correct.

The other options do not match the Event Log function. Viewing a device’s configuration is handled in device configuration and blueprint operational views, not as the primary purpose of the Event Log. Export behavior, where supported, is described for formats such as CSV rather than PDF, and exporting dashboards is a separate capability from event logging. Finally, while worker nodes are used to offload operational services (such as off-box agents and IBA components), the Event Log is a platform logging feature exposed through the controller UI/API rather than something described as “running on the worker node” as its defining trait.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/event-log.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/syslog-config.html

In Apstra 5.1, Intent-Based Analytics (IBA) is built on Apstra’s graph-based source of truth, where devices, interfaces, links, routing constructs, and services are represented as nodes with relationships. An IBA probe is effectively a processing pipeline (a directed acyclic graph of stages and processors) that ingests telemetry and then performs calculations, aggregations, and anomaly detection. To make any of that work, the probe must first determine which specific objects in the graph—for example, which leaf switches, which uplinks, which BGP sessions, or which interface counters—should be included in the analysis.

The probe element that selects those objects is the graph query. A graph query is evaluated against Apstra’s graph database to return a set of matching nodes/relationships; those query results then become the scope for ingestion and subsequent processing. In other words, the graph query defines “apply this probe to these devices/interfaces/sessions,” and it also provides the context used to bind telemetry identities (key-value pairs describing the metric source) to the correct logical objects in the blueprint. This is why Apstra documentation describes early probe processors producing outputs whose cardinality aligns with the number of results returned by the specified graph query(s). Without a graph query, the probe would not have a deterministic, intent-aligned target set for analytics, and the same probe definition could not be reliably reused across fabrics or blueprints.

In Apstra 5.1, the cabling map is part of the blueprint’s intended physical topology. Cable-map edits are performed in the Staged workspace because Staged is where you modify intent (what the fabric should look like) before committing those changes and deploying them. The Staged → Physical → Links view provides both a tabular and topology-oriented representation of spine-to-leaf and other physical connections. When Apstra auto-assigns interfaces during initial build, the logical mapping may not match the real patching in the data center. The cabling map editor allows you to override interface names (and where applicable, link addressing metadata) so the blueprint accurately reflects the actual patch panel and switchport usage.

This accuracy is critical in a Junos v24.4 leaf-spine fabric because underlay correctness depends on the real physical adjacencies: link membership, LAG expectations (where used), and the resulting BGP neighbor relationships that carry EVPN signaling for VXLAN overlays. By updating the cabling map in Staged, you ensure Apstra can correctly validate neighbor discovery, verify intent, and produce consistent device configuration aligned to the real-world wiring. After making the cabling corrections, you commit the staged changes and then deploy/apply so that Apstra’s intent and the running network converge. This work is not performed under Active (which reflects deployed state) and is not a function of Connectivity Templates (which are for endpoint/service attachment rather than fabric cabling).

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/topic-map/cabling-map-edit-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/topic-map/cabling-map-edit-datacenter.html

https://www.juniper.net/documentation/us/en/software/jvd/jvd-dcfabric-5-stage/configuration_walkthrough.html

Apstra 5.1 provides multiple reference designs that define how intent is modeled and how configuration is produced. In the Freeform reference design, the network designer is responsible for creating and validating the device configurations using constructs such as device contexts, property sets, and config templates. Because configuration is authored rather than generated from a fixed data-center abstraction set, Freeform inherently requires practical knowledge of the device’s configuration model and operational behavior—on Juniper platforms, that means being comfortable with Junos-style configuration and show/verification workflows. This makes statement A correct.

Freeform in Apstra 5.1 is also limited to Juniper devices (Junos and Junos Evolved families). In other words, Freeform blueprints do not provide multi-vendor device onboarding and deployment in that reference design at this software level. That makes statement D correct as written in the question’s choices.

By contrast, the data center reference design in Apstra 5.1 is not limited to Junos-only device families; Apstra qualifies multiple NOS families for data center operation via device profiles and packages, and it renders intent accordingly. Therefore statement B is not correct. Finally, while CLI knowledge is always useful for troubleshooting, the data center reference design does not fundamentally require an operator to hand-author device CLI to deploy a standards-based EVPN-VXLAN fabric; that’s one of the core benefits of the intent-based data center reference design.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/freeform.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-freeform-4.2.1/apstra-freeform-guide/topics/concept/freeform-overview-and-design.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/device-profile-import-freeform.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/devices-qualified.html

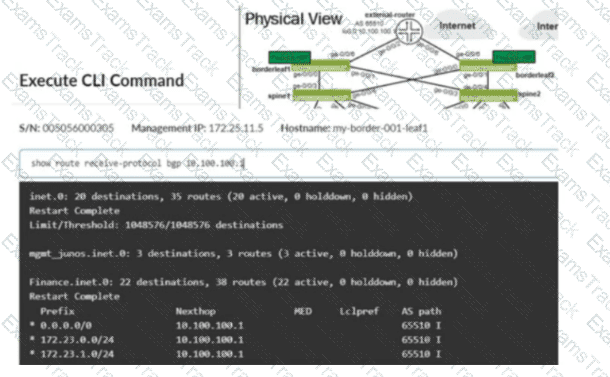

The exhibit shows the border leaf receiving multiple routes via BGP from the external router, including 172.23.x/24 prefixes, and those routes appearing in the Finance VRF routing table. To stop these routes from being installed in the Finance table, you must change what the border leaf imports from that eBGP session. In Apstra, this control is implemented through a Routing Policy attached to the protocol session described by the connectivity template. By setting the Import Policy to accept default route only, Apstra renders Junos policy so that only 0.0.0.0/0 is imported into the VRF, while the 172.23.x/24 prefixes are rejected and therefore never installed in Finance.inet.0.

Option C is a common trap: the “Expect Default IPv4 Route” setting is an assurance expectation—it generates an expectation/anomaly if the default route is missing, but it does not change device configuration or filtering behavior. Export-policy changes (option D) would only affect what the border leaf advertises outbound to the external router, not what it learns inbound. Aggregation (option A) does not prevent installation of the specific learned /24s; it changes advertisement behavior rather than import filtering. The correct fix is to tighten the import policy on that external eBGP session.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/routing-policies.html

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/concept/routing-policies.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/connectivity-templates.html

In Apstra 5.1, blueprint changes follow an intent workflow: you edit intent in Staged, then review the delta in Uncommitted, and finally Commit to activate those changes and create a new revision. If you have staged changes that are visible under Uncommitted but decide not to proceed, the Revert action is used to discard them. Selecting Revert clears the blueprint’s uncommitted intent delta and returns the blueprint to the last committed state (the currently active intended design baseline). In practical terms, it removes all pending edits that were made since the last commit—whether those edits were physical (links/topology), virtual (routing zones, virtual networks), policies (security policies), or catalog-driven operations—so that none of those changes will be deployed.

Revert is not a “single-step undo” limited to only the most recent change; it is a discard of the staged/uncommitted change set. It also does not roll back device configurations on its own (that is handled by revision operations such as Time Voyager rollbacks and subsequent deployment actions). Finally, Revert does not require a commit to take effect; it is used specifically to avoid committing changes. This behavior helps maintain clean operational control in EVPN-VXLAN fabrics by ensuring only validated and intentional intent updates are promoted to the deployed network state.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/task/blueprint-commit-revert.html

https://www.juniper.net/documentation/us/en/software/apstra6.1/apstra-user-guide/topics/task/time-voyager-rollback-blueprint-revision.html

In a three-stage eBGP IP Clos, a leaf typically learns the same prefix through multiple spines, and those spines are commonly in different AS numbers (a standard Clos pattern for simplified operations and fault isolation). To install multiple equal-cost eBGP paths for the same destination, Junos requires BGP multipath and, when the candidate paths come from different neighbor ASs, you must use the multiple-as capability (expressed as “multipath multiple-as” in many designs) to bypass the default same-neighbor-AS restriction for multipath selection. This ensures multiple eligible eBGP next-hops can be accepted as equal-cost paths and installed.

Separately, to actually perform load balancing in the forwarding plane across those installed next-hops, Junos uses a load-balancing policy that is applied to the forwarding table via routing-options forwarding-table export . This policy (for example, per-packet or consistent-hash variants, depending on platform and intent) activates the forwarding behavior needed to distribute traffic over the ECMP set.

A “load-balance policy applied to the BGP group” is not the required mechanism for ECMP forwarding behavior in this context, and multihop is unnecessary in a Clos underlay because neighbors are typically directly connected.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/junos/bgp/topics/topic-map/load-balancing-bgp-session.html

In Apstra 5.1, this screen represents a configuration deviation workflow: Apstra is comparing the intended (golden) configuration it generated from blueprint intent against the actual configuration currently on the device. When an operator makes a change directly on the switch CLI (for example, on a Junos v24.4 leaf), Apstra detects the difference and flags it as drift because it did not originate from the blueprint’s intent model.

Clicking Accept Changes tells Apstra to adopt the device’s current CLI state as the new accepted baseline for that device, effectively incorporating the observed CLI delta into Apstra’s intended configuration for purposes of future comparison and compliance. In other words, Apstra stops treating that specific deviation as an error because it has been acknowledged and absorbed into the “golden config” (the intent-aligned configuration Apstra considers correct for that node). This is commonly used when an emergency change was made on-box and you want Apstra’s source of truth to reflect it, rather than reverting it.

This differs from Apply Full Config, which is used to push Apstra’s intended configuration down to the device to restore compliance. If you do not accept the change, a later commit/apply action can overwrite the CLI-entered configuration to re-align with blueprint intent.

In Apstra, tags are an intent-level metadata mechanism used to classify objects and drive automation and reuse. Within a data center blueprint, Apstra supports tagging multiple blueprint objects so operators can apply configuration or policy logic conditionally (for example, applying a connectivity template or a configlet based on a tag match). In this scenario, three valid taggable objects are virtual networks, interfaces, and generic systems.

Virtual network tagging is supported directly from the blueprint’s virtual network table, enabling you to label virtual networks (such as “finance,” “pci,” or “dev”) and then reference those tags elsewhere in blueprint operations and policy application. Interface tagging is also explicitly supported in the blueprint, allowing you to assign tags to switch interfaces and use those tags to control how templates, assignments, or other intent-driven operations apply to those ports. Finally, generic systems (which are modeled endpoint systems such as servers or external routers represented as “systems” in the blueprint) can be tagged so that downstream intent logic can distinguish system roles and apply the correct operations consistently across expansions and changes.

By contrast, property sets are structured data objects used for variable substitution and probe/configlet parameterization, not a primary target for operational tagging in the blueprint UI; and device profiles are catalog artifacts describing hardware/NOS compatibility rather than blueprint objects typically tagged for intent application.
