Free Juniper JN0-232 Practice Exam with Questions & Answers | Set: 2

When a new packet arrives that does not match an existing session, the SRX performs full flow-based processing. After ingress zone determination, the firewall must know the destination zone to evaluate security policies.

The SRX determines the egress zone by performing a route lookup on the packet’s destination IP address.

The routing decision identifies the outgoing interface, and the zone associated with that interface becomes the egress zone .

Session lookup (Option A) happens first but is only useful for existing sessions.

Destination port (Option B) is used for application identification, not zone determination.

Ingress zone properties (Option D) cannot determine the egress zone.

Security policies can reference additional services and authentication behavior after traffic matches the policy criteria. SSL proxy is applied through a security policy by matching the traffic that should be decrypted and inspected, then referencing the SSL proxy profile as an application service. Firewall authentication is also policy-based; Juniper describes it as requiring users to authenticate to the SRX Series Firewall before access between zones and devices is permitted. Captive portal authentication is a web redirection mechanism and is not the direct security policy feature identified in this question. MAC bypass is not a standard SRX security policy service. Therefore, SSL proxy and firewall authentication are the two features applied through security policy processing.

The session output shows the original flow entering with source address 10.20.30.40 and destination address 203.0.113.1. The return or translated side shows the source address represented as 192.0.2.1 while the destination address remains 203.0.113.1. This indicates source NAT behavior because the original source IP address is translated to a new source IP address. There is no destination NAT in the exhibit because the destination IP address does not change. In Junos source NAT, the firewall translates the source address, commonly to an interface address or address pool, while preserving the destination address unless another NAT type is also configured. Therefore, the correct statements are that the destination remains unchanged and the source address is translated.

Exception traffic is traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, or other control-plane packets. Because the RE is a limited and critical resource, Junos OS implements rate limiting on exception traffic .

The purpose is to prevent denial-of-service (DoS) attacks on the Routing Engine by controlling the amount of traffic directed to it.

This ensures the RE continues to process control-plane operations reliably, even under potential attack or heavy traffic conditions.

Rate limiting does not enhance forwarding plane performance (Option A), simplify interface configuration (Option B), or manage routing protocols directly (Option D).

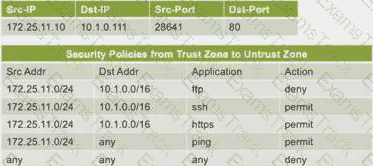

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.

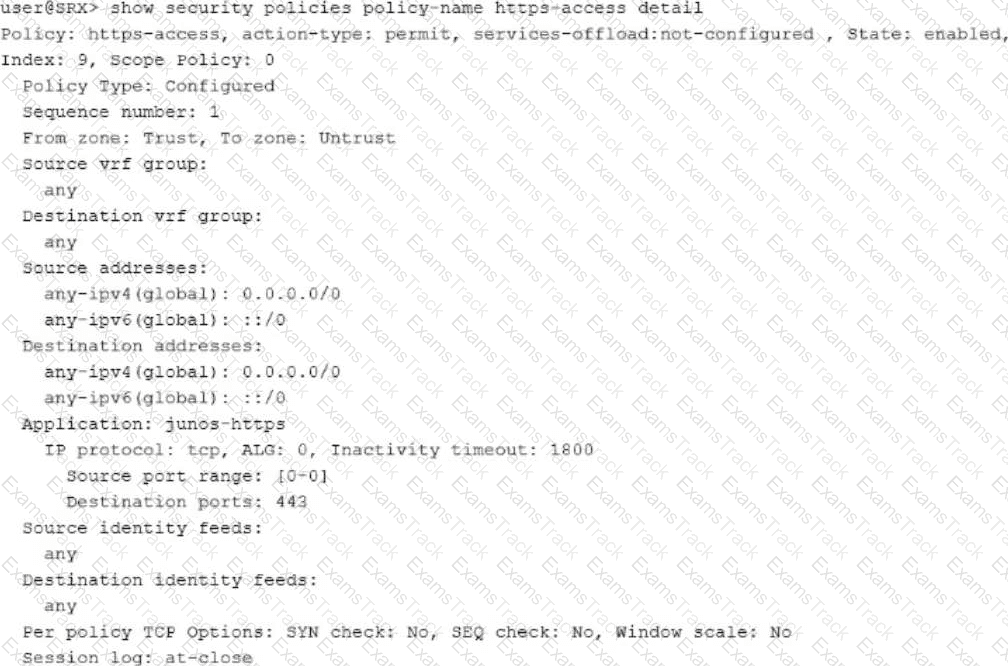

The exhibit shows From zone: Trust, To zone: Untrust, which identifies the policy as a zone-based security policy. It also shows the policy action as permit and the application as junos-https, with TCP destination port 443. Therefore, the policy permits HTTPS traffic. The displayed inactivity timeout is 1800 seconds, which is the normal value shown for predefined TCP applications such as HTTPS, so it does not prove a non-default timeout. The exhibit also shows sequence number 1, not sequence number 2, so it is not the second policy in the list. Junos security policies are configured in a from-zone to to-zone context and match traffic by criteria such as source address, destination address, and application before applying the configured action.

Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

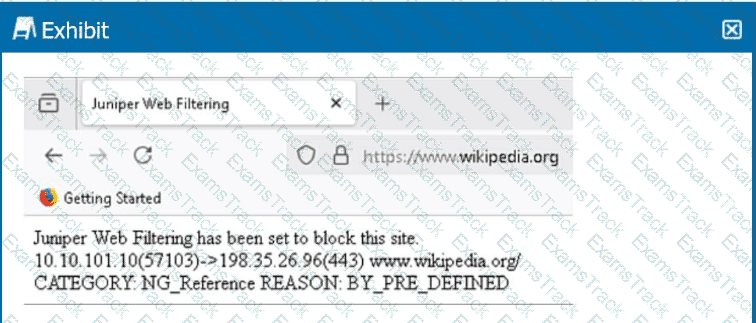

License Requirement (Option B): NextGen Web Filtering (NGWF) is a licensed feature on SRX devices. Without a license, the service cannot operate.

Local vs. Cloud Lists (Option C): NGWF checks local block/allow lists first . If the URL does not match locally, the request is then checked against the Juniper cloud database.

Option A: Incorrect, since the cloud is only consulted if the URL is not in the local list.

Option D: Incorrect, as NGWF requires a valid subscription/license.

Correct Statements: NGWF requires a license, and it checks local lists before cloud lookup.

When two networks use the same private IP address ranges, conflicts occur. The solution is to use address translation techniques on the SRX:

NAT (Network Address Translation): Translates private IP addresses to another IP range, enabling connectivity between overlapping private networks.

PAT (Port Address Translation): Extends NAT by allowing multiple private IPs to share one or a few public IPs using different port numbers. This is especially useful when there is a limited pool of public IP addresses.

Other options:

IDP (Option A): Intrusion Detection and Prevention, unrelated to address overlap.

BGP (Option C): A routing protocol, but it does not solve overlapping IP addressing problems.

Correct Features: NAT and PAT

A feature profile in a UTM (Unified Threat Management) configuration defines how a specific UTM feature should operate. Examples include:

An antivirus feature profile that specifies the type of scanning to perform (streaming or full file-based).

A web filtering feature profile that defines filtering methods, categories, and actions.

An antispam profile that defines how spam detection and actions are performed.

Feature profiles do not directly apply to traffic or policies. Instead, they are referenced inside a UTM policy , and then that policy is applied to a security policy.

Therefore, a feature profile’s purpose is to define the operation of a specific UTM feature .
