Exception traffic includes traffic that is not simply forwarded by the router but requires special handling, such as routing updates (B) and log messages (C). These types of traffic are processed by the router's control plane rather than just being forwarded through the data plane.

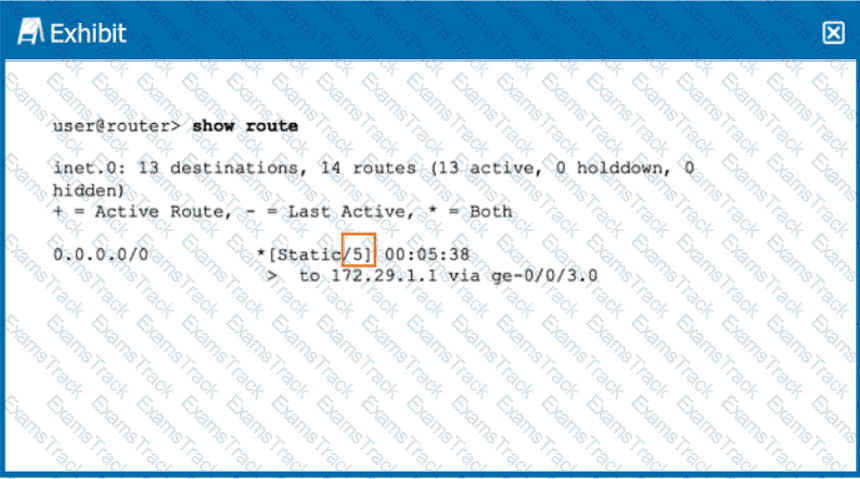

In the exhibit shown, the highlighted number next to the route type (Static) within the square brackets indicates the route preference, also known as the administrative distance. In Junos, the route preference is a value that determines the priority of the route source. Lower numbers indicate a higher priority when the routing table is being calculated. The route preference is used to select the best route when multiple paths to the same destination exist from different routing sources. The number 5 is unusually low for a static route by default, suggesting it has been manually configured to override other route types.

In a network that carries diverse types of traffic like data, voice, and video, ensuring the performance of latency-sensitive applications such as voice and video calls is crucial. Class of Service (CoS) is a technology designed to prioritize network traffic, ensuring that critical applications like voice and video receive the necessary bandwidth and minimal latency. CoS mechanisms can include traffic classification, traffic policing, queue management, and scheduling. By implementing CoS, network administrators can assign higher priority to voice and video traffic, thus improving their performance across the network and addressing the users' complaints about call quality.

Junos OS selects routes based on the route preference (also known as administrative distance). Static routes typically have a lower route preference than OSPF routes, meaning they are more preferred. Since the static route to 192.168.36.1/32 is shown with a preference of 5, it will be selected over the OSPF route for packet forwarding, assuming no other factors such as route filters or policies affect the routing decision.

The monitor interface traffic command in Junos OS is used to view real-time interface statistics, such as bandwidth utilization (input and output rate), error counters, and packet counts. Unlike the show interfaces commands, which provide static, snapshot-based details, the monitor command displays continuously updated traffic data until the session is stopped.

From Junos OS Documentation:

“The monitor interface traffic command displays real-time statistics about traffic utilization on the specified interfaces. By default, statistics are displayed for all interfaces at regular intervals until you exit the command.”

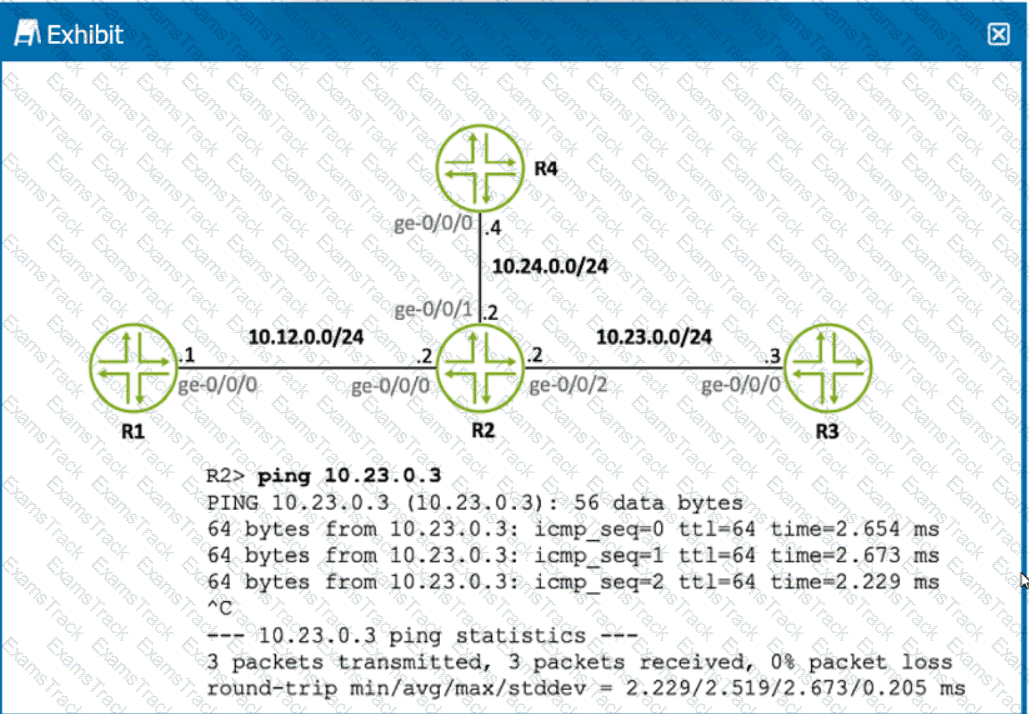

The exhibit shows a ping test being executed from router R2 to the IP address 10.23.0.3. Since the ping command is issued on R2 and we see successful replies from 10.23.0.3, it means the source of the ping must be an interface on R2. Given the network diagram and the IP address scheme, the source IP address of the ping is on the interface ge-0/0/2 of R2, which is in the subnet 10.23.0.0/24. The only logical IP address for R2's interface in this subnet, based on standard networking practices and the given options, would be 10.23.0.2. The other addresses provided in the options belong to different subnets or are the destination of the ping itself.

The Routing Engine (RE) in Junos OS has several critical functions, including processing all management traffic (A) and running the Junos operating system (B). The RE handles system management tasks, user interfaces, system services, and routing protocol processes. It does not directly process transit traffic or evaluate firewall filters for transit traffic, as these tasks are handled by the Packet Forwarding Engine (PFE).

The CLI help command in Junos OS provides assistance and explanations for commands, command options, and in some cases, specific system log error messages. By using the help command followed by specific keywords or messages, users can get detailed information and context for the commands they are using or errors they are encountering. This feature is particularly useful for understanding the purpose of commands, their syntax, and troubleshooting error messages that may appear in system logs.

The request system configuration rescue save command in Junos OS saves the most recently committed configuration as the rescue configuration. This rescue configuration can be used to recover the device if future configurations cause issues. It ensures there is a stable, known-good configuration to fall back on, which is crucial in network management and troubleshooting.

Link-state routing protocols are a type of routing protocol used in packet-switching networks for finding the best path between source and destination. OSPF (Open Shortest Path First) and IS-IS (Intermediate System to Intermediate System) are both examples of link-state routing protocols. They work by maintaining a complete map or topology of the network, allowing routers to independently calculate the best path to each destination. Unlike distance-vector protocols like RIP, link-state protocols are more efficient and scalable, making them suitable for larger networks.
