Free VMware 3V0-21.25 Practice Exam with Questions & Answers

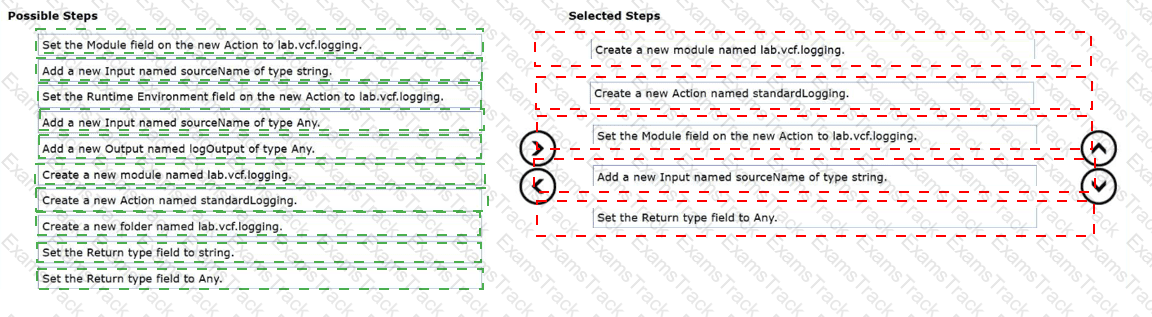

Create a new module named lab.vcf.logging.

Create a new Action named standardLogging.

Set the Module field on the new Action to lab.vcf.logging.

Add a new Input named sourceName of type string.

Set the Return type field to Any.

In VMware Cloud Foundation (VCF) 9.0, extensibility through the Operations orchestrator (formerly vRealize Orchestrator) requires a structured approach to modularity and data typing. To store an action in a specific path like lab.vcf.logging, an administrator must first create a new module with that name, as modules serve as the organizational namespaces for actions. Once the container exists, the administrator creates the Action named standardLogging and explicitly sets the Module field to the newly created namespace to ensure correct storage and accessibility across the orchestrator server.

The configuration of inputs and outputs is critical for programmatic integration. By adding an input named sourceName of type string, the administrator ensures the action can receive metadata from calling workflows exactly as specified in the technical requirements. Regarding the output, the requirement states the script returns a JSON object format. In the orchestrator's JavaScript-based engine, while a string could technically hold JSON text, the "Any" return type is the standard and verified method for returning structured objects. This allows subsequent workflow elements to programmatically parse and interact with the JSON properties without manual conversion, fulfilling the requirement for sophisticated log data handling and troubleshooting within the VCF 9.0 framework.

VCF 9.0 Automation provides two primary "engines" for extensibility and external system integration. VCF Operations Orchestrator is the robust, long-standing workflow engine designed for complex, multi-step orchestration across heterogeneous infrastructure. It supports extensive plugin libraries for third-party systems like ServiceNow, Infoblox, or custom REST/SOAP endpoints. Action-Based Extensibility (ABX) is the modern, serverless alternative that allows administrators to execute lightweight scripts (Python, Node.js, or PowerShell) directly within the VCF Automation framework. ABX is ideal for quick, specific tasks such as calling a web hook or performing a simple API transformation during the provisioning lifecycle. While SDDC Manager (Option D) and vSphere Lifecycle Manager (Option E) are core components of the VCF stack for management and patching, they are not used as extensibility "integrations" for data exchange in the context of automation workflows.

In the multi-tenant architecture of VCF 9.0, Region Quotas are the primary administrative tool used by the provider to enforce resource governance. While vCenter resource pools (Option A) or vSphere limits (Option C) operate at a lower infrastructure layer, they do not integrate natively with the VCF Automation consumption model and can lead to unpredictable scheduling issues. By configuring a Region Quota within the Provider Management Portal, the administrator sets an upper bound on the total CPU, Memory, and Storage that a specific organization can request from the "West" region. When users in the Development organization attempt to deploy a new blueprint or scale an existing service, the automation engine checks the current consumption against this quota. If the request exceeds the limit, the deployment is blocked before it ever reaches the vCenter layer. This ensures that "noisy neighbors" cannot starve other mission-critical organizations—like Production—of essential capacity, allowing for fair and predictable resource sharing across the unified VCF 9.0 fleet.

To meet the requirements of a standardized, governed microservices environment, VCF 9.0 Automation provides several key features. First, Lease Policies are the primary tool for minimizing "environment sprawl" and enforcing automated decommissioning. By assigning a lease, the administrator ensures that resources are automatically reclaimed after a set period unless a renewal is explicitly granted, preventing "forgotten" deployments from consuming expensive capacity. Second, cloud-init (or the similar cloudConfig stanza) allows for the standardized, post-deployment configuration of the VM OS, such as installing security agents or company-specific developer tools, ensuring every environment is consistent from "Day 0". Finally, predefined firewall rules (often delivered via NSX VPC Security Profiles) ensure that newly deployed environments adhere to the organization's security standards. This prevents developers from manually (and potentially incorrectly) configuring networking, thereby automating the "Secure-by-Design" requirement within the self-service catalog item.

The Terraform provider for VCF Automation is the specific tool designed to allow Infrastructure-as-Code (IaC) workflows to interact with the VCF 9.0 API surface. In VCF 9.0, the provider has been expanded to support the newer Organization and Region-based architecture. By utilizing this provider, developers can declare Content Libraries, Cloud Zones, and Flavor/Image Mappings within their HCL (HashiCorp Configuration Language) files. While specific RBAC roles (like Organization Administrator) are necessary for the credentials used by the Terraform runner, the solution itself is the provider that translates Terraform commands into the correct REST API calls for the VCF Automation engine. This enables a consistent developer experience where infrastructure configuration is versioned in Git and applied programmatically, aligning with modern DevOps practices supported by the VCF 9.0 platform.

In an AllApps (AIIApps) organization, resource entitlement follows the Supervisor-native path. To provide access to the "Gold Tier" storage, the VCF Automation administrator must first ensure the vSphere storage policy is recognized as a Storage Class by the Supervisor. The correct operational step is to Add the Storage Class backed by the Gold Tier policy to a Supervisor Namespace Class. The Namespace Class acts as the policy engine that governs what resources are "allow-listed" for the tenant. Once the Namespace Class is configured with the Gold Tier storage class, the administrator must bind that Namespace Class to the PerformanceTest Project. This makes the high-performance NVMe storage visible and available for use by the users within that specific project, allowing them to select it when deploying stateful applications or persistent volumes, without affecting other projects or organizations.

The AllApps Organization in VCF 9.0 is specifically engineered to provide the "cloud-native" consumption experience required by modern development teams. While traditional VM management is handled by VMApps, the AllApps model unlocks the full potential of the vSphere Supervisor. By leveraging Supervisor Services, the organization can present a catalog that goes far beyond simple IaaS. Developers can provision not only VMs and TKG clusters but also higher-level services like vSAN Data Persistence platform for S3-compatible storage and managed databases (e.g., PostgreSQL or MySQL) through integrated operators. This architecture abstracts the underlying vSphere and NSX complexity, presenting the developer with a unified API and UI for multi-cloud-style resource consumption, directly fulfilling the goal of providing a public-cloud-like experience within the on-premises data center.

To satisfy the requirement that a registration task must not impact the success of the overall deployment, a Non-blocking event broker subscription must be used. In VCF Automation 9.0, a "Blocking" subscription pauses the provisioning process until the extensibility task completes, allowing the workflow to fail the deployment if the task returns an error. Conversely, a "Non-blocking" subscription operates asynchronously; the platform fires the event and immediately continues with the VM lifecycle regardless of the task's outcome. An Action-Based Extensibility (ABX) action is the ideal lightweight serverless function to execute this registration logic, as it can be easily configured to run in response to the event trigger without the overhead of a full orchestrator workflow. By combining these two, the administrator ensures that the external registration is attempted, and any successes or failures are handled purely within the context of that action and the external service, fulfilling the customer's logging and failure-tolerance requirements.

The NSX Transit Gateway (TGW) is the architectural cornerstone of regional networking in VCF 9.0. In previous versions, administrators had to manually manage complex Tier-0/Tier-1 relationships for each tenant; however, VCF 9.0 abstracts this through the TGW. When a Region is created, the system automatically instantiates the Transit Gateway to act as the high-speed "backplane" for the organization. Every VPC created within that region connects to this TGW, which then handles all East-West traffic between VPCs and North-South traffic toward the corporate WAN or Internet. This design ensures that the routing logic is consistent, automated, and isolated from the physical underlying fabric. The TGW works in conjunction with VPC Connectivity Profiles to determine if a VPC is completely isolated or has an external path, providing a scalable and secure way to manage hundreds of isolated network segments without manual intervention.

In VCF 9.0, the Region construct acts as the bridge between physical vSphere infrastructure and the logical automation consumption layer. Storage policies (SPBM) are used to abstract the underlying physical datastores (such as vSAN, VMFS, or vVOLs). A region identifies which storage policies are available for consumption by the tenant organizations mapped to it. Consequently, storage policies determine which datastores are available within a region; if a datastore is not associated with a policy selected during region configuration, it cannot be used for workload placement. Furthermore, a storage policy can be associated with one or more regions. This allows a provider to offer standardized "Gold," "Silver," or "Bronze" storage tiers across different geographic or logical regions of the VCF fleet, ensuring a consistent consumption experience for developers regardless of which physical workload domain their virtual machines or Kubernetes pods are deployed into.
