Free The Open Group OGEA-103 Practice Exam with Questions & Answers | Set: 4

Phase A: Architecture Vision identifies stakeholders, their concerns, and defines the scope and objectives of the architecture engagement.

Defining enterprise strategy is outside ADM (it is a business planning activity).

Describing the target architecture happens in Phases B, C, and D.

Developing an EA Capability is done in the Preliminary Phase, not Phase A.

Comprehensive and Detailed Explanation

In the TOGAF ADM, deliverables go through a lifecycle of development, review, approval, and usage. TOGAF distinguishes between draft deliverables (work-in-progress) and final deliverables (those that have been formally reviewed and signed off).

Draft deliverables are produced as working versions of the required outputs in each ADM phase. These may carry version labels such as 0.1, 0.5, 0.9, etc., and are subject to stakeholder review and refinement.

Once the document has been reviewed and approved by the relevant stakeholders (e.g., Architecture Board, governance bodies), it becomes a final deliverable.

Final deliverables are baseline-controlled items and are formally stored in the Architecture Repository as an approved architecture artifact.

Thus, the correct term for a deliverable that has completed review and is approved is “final”.

Why the other options are incorrect

B. Approved: While true in general language, TOGAF uses the formal term “final deliverable”, not “approved deliverable.”

C. Ratified: This term is not used in TOGAF to describe the state of a deliverable.

D. Version 0.9: This is a draft numbering convention, not the status of an approved deliverable.

References

The Open Group, TOGAF® Standard, Version 9.2, Part II: ADM — description of deliverables, artifacts, and building blocks.

The Open Group, TOGAF® 9 Certified Study Guide — explanation of draft vs. final deliverables in the ADM lifecycle.

Gap Analysis is a technique that compares the Baseline Architecture and the Target Architecture to identify the differences and gaps between them. The purpose of this technique is to determine the changes and additions that are required to achieve the desired future state of the architecture. One of the main aspects of Gap Analysis is to identify the functions that are missing or overlapping in the current and future architectures, and to plan how to address them. This helpsto ensure that the architecture is complete, consistent, and aligned with the business objectives and requirements3

The illustration shows the relationship between the Enterprise Continuum, the Architecture Continuum, and the Solutions Continuum, which are key concepts in the TOGAF framework. The Enterprise Continuum is a view of the Architecture Repository that shows how generic foundation architectures can be leveraged and specialized to support the requirements of an individual organization. The Architecture Continuum specifies a structured classification for architectural artifacts, such as models, patterns, and descriptions, that can be reused and adapted across different domains and levels of abstraction. The Solutions Continuum identifies implemented solutions that support various stages of business and IT capability evolution, such as common systems, industry solutions, and organization-specific solutions. The illustration also shows how the architecture context and requirements are influenced by external factors, such as business drivers, stakeholders, and standards, and how they shape the generic and specific architectures and solutions. The illustration also shows how the deployed solutions become part of the architecture context for future iterations of the architecture development cycle. References:

•TOGAF Standard, 10th Edition, Part II: Architecture Development Method, Chapter 6: Architecture Repository, Section 6.2 Enterprise Continuum.

•TOGAF Standard, 10th Edition, Part IV: Architecture Content Framework, Chapter 35: Enterprise Continuum and Tools, Section 35.1 Introduction.

The statement illustrates iteration and the ADM. Iteration is the technique of repeating a process or a phase with the aim of improving or refining the outcome. Iteration allows for feedback loops and adaptations at any point in the architecture development and transition process. Separate projects may operate their own ADM cycles concurrently, with relationships between the different projects, to address different aspects or levels of the architecture in an iterative manner. Reference: The TOGAF® Standard | The Open Group Website, Section 3.1 Introduction to the ADM.

According to the TOGAF Standard, Version 9.2, an architecture view is a representation of a system from the perspective of a related set of concerns1. It consists of one or more architecture models that demonstrate how the system addresses the stakeholder concerns1.

An architecture viewpoint is a specification of the conventions for constructing and using an architecture view to address specific stakeholder concerns1. It defines the perspective, scope, notation, and techniques for creating an architecture view of a system1.

Architects can present architecture views and viewpoints to stakeholders to extract hidden agendas, principles, and requirements that could impact the final Target Architecture, because23:

Architecture views and viewpoints help to communicate and visualize the architecture in a way that is meaningful and relevant to different stakeholders, addressing their specific interests and needs.

Architecture views and viewpoints help to elicit and validate the stakeholder concerns and requirements, ensuring that they are aligned with the business goals and objectives, and that they are consistent and feasible within the architecture context.

Architecture views and viewpoints help to identify and resolve any conflicts, gaps, or trade-offs among the stakeholder concerns and requirements, ensuring that they are balanced and prioritized in the architecture design and decision-making.

Architecture views and viewpoints help to demonstrate and verify the value and benefits of the architecture to the stakeholders, ensuring that they are satisfied and committed to the architecture outcome and governance.

1: The TOGAF Standard, Version 9.2, Chapter 22: Architecture Views, Viewpoints, and Stakeholders

2: The TOGAF Standard, Version 9.2, Chapter 4: Introduction to Part II, Section 4.2: What is an Architecture Framework?

3: The TOGAF Standard, Version 9.2, Chapter 31: Architectural Artifacts, Section 31.1: Basic Concepts

According to the TOGAF Standard, Version 9.2, the ADM phases and their objectives are as follows1:

Preliminary Phase: To prepare and initiate the architecture development cycle, including defining the architecture framework, principles, and governance.

Phase A: Architecture Vision: To define the scope, vision, and stakeholders of the architecture initiative, and to obtain approval to proceed.

Phase B: Business Architecture: To describe the baseline and target business architecture, and to identify the gaps between them.

Phase C: Information Systems Architectures: To describe the baseline and target data and application architectures, and to identify the gaps between them.

Phase D: Technology Architecture: To describe the baseline and target technology architecture, and to identify the gaps between them.

Phase E: Opportunities and Solutions: To identify and evaluate the opportunities and solutions for implementing the target architecture, and to define the work packages and transition architectures.

Phase F: Migration Planning: To finalize the implementation and migration plan, and to ensure alignment with the enterprise portfolio and project management.

Phase G: Implementation Governance: To provide architecture oversight and guidance for the implementation projects, and to manage any architecture change requests.

Phase H: Architecture Change Management: To monitor the changes in the business and technology environment, and to assess the impact and performance of the architecture.

Requirements Management: To manage the architecture requirements throughout the ADM cycle, and to ensure alignment with the business requirements.

Based on the above definitions, we can match each objective with the corresponding phase as follows:

Objective 1: Ensure that the business value and cost of work packages and transition architectures is understood by key stakeholders. This objective is achieved in Phase H: Architecture Change Management, where the value realization and cost-benefit analysis of the architecture are performed2.

Objective 2: Ensure conformance with the Target Architecture by implementation projects. This objective is achieved in Phase F: Migration Planning, where the conformance requirements and criteria for the implementation projects are defined3.

Objective 3: Ensure that the architecture development cycle is maintained. This objective is achieved in Phase F: Migration Planning, where the architecture roadmap and iteration cycle are maintained3.

Objective 4: Ensure that the Architecture Governance Framework is executed. This objective is achieved in Phase G: Implementation Governance, where the architecture governance processes and procedures are applied to the implementation projects4.

1: The TOGAF Standard, Version 9.2, Chapter 5: Architecture Development Method (ADM)

2: The TOGAF Standard, Version 9.2, Chapter 21: Architecture Change Management

3: The TOGAF Standard, Version 9.2, Chapter 20: Migration Planning

4: The TOGAF Standard, Version 9.2, Chapter 19: Implementation Governance

In TOGAF, Phase E (Opportunities & Solutions) is the first phase that transitions from architecture models into actionable implementation. Within Phase E, architects identify candidate implementation projects or work packages, assess dependencies, cost/benefit, constraints, and derive a highlevel implementation and migration strategy and initial plans. That means the first planning around how to carry out the architecture begins in Phase E. Later phases refine and govern the implementation (e.g. in Phase F and G), but the initial planning belongs in Phase E. Thus Phase E includes the initial implementation planning.

Architecture Principles are general rules and guidelines that inform and support the way in which an organization sets about fulfilling its mission. They reflect a level of consensus among the various elements of the enterprise, and form the basis for making future IT decisions. One of the purposes of Architecture Principles is to establish a common understanding of how to control thebusiness in pursuit of strategic objectives, by providing a framework for evaluating and agreeing on the changes that affect the enterprise’s architecture3 References: 3: The TOGAF Standard, Version 9.2, Part III: ADM Guidelines and Techniques, Chapter 23: Architecture Principles : The TOGAF Standard, Version 9.2, Part IV: Architecture Content Framework, Chapter 31: Architecture Principles

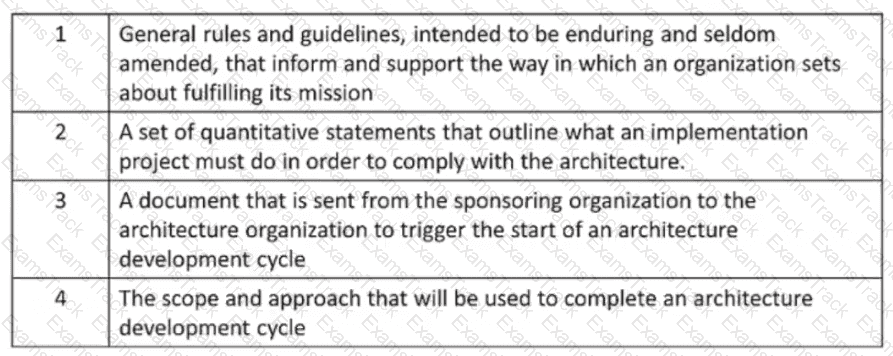

The Request for Architecture Work is a deliverable that is sent from the sponsor and triggers the start of an architecture development cycle. It defines the scope, budget, schedule, and deliverables for a specific architecture project. The Statement of Architecture Work is a deliverable that is produced by the architect and defines the approach and resources needed to complete an architecture project. It forms the basis of a contractual agreement between the sponsor and the architecture organization. The Architecture Principles are a deliverable that is produced by the architect and defines the general rules and guidelines for the architecture work. They reflect the business principles, business goals, and business drivers of the organization. The Architecture Requirements Specification is a deliverable that is produced by the architect and defines the requirements that govern the architecture work. It covers both functional and non-functional requirements as well as constraints and assumptions.
