Pega Robotics Studio – Automation Design Concepts (Events and UI Responsiveness)

“Automations started from a Windows Form Click event run on the UI thread. To keep the form responsive, long-running work should be started by calling other automations asynchronously. When an automation is executed synchronously, the UI thread is blocked until the call completes. Executing the child automation asynchronously allows users to continue interacting with the form.”

Pega Robotics Studio – Calling Automations (Run method)

“The Run method includes a synchronous parameter.

True – the caller waits for completion (blocks the UI).

False – the automation starts asynchronously and control returns immediately to the caller (UI remains available).

Default follows the project setting.”

Pega Robotics Studio – Windows Form Controls (Avoid self-triggering)

“Invoking PerformClick from within an automation that is already handling the button’s click should be avoided. It re-triggers the button click and can lead to reentrancy or recursion and does not improve UI responsiveness.”

Pega Robotics Studio – Message Dialogs

“Displaying a MessageDialog during processing is modal and prevents interaction with the form until the dialog is closed. Use only for completion or error notifications, not while long-running work is executing.”

Why Option B is correct:

Option B starts from the btnUpdateAccount.Click event (so no self-trigger via PerformClick).

It launches the downstream automations (UpdateBankerInsight and UpdatePegasFinance) using Run with the synchronous parameter set to False (asynchronous), which keeps the Windows form responsive and accessible to the user while updates run.

It does not introduce a modal MessageBox before or during the updates (dialogs are only used for completion/notification), so it avoids blocking the UI.

Why the other options are not correct:

Option A: Uses PerformClick on the button, which re-triggers the click and can lead to recursion without improving responsiveness.

Option C: Inserts a MessageDialog during the middle of processing, which is modal and blocks the form.

Option D: Calls the update automations synchronously (or leaves them at the blocking default), which holds the UI thread until completion and makes the form inaccessible during the run.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

In Pega Robot Studio, when interrogating Java applications, sometimes a child process is created separately from the main application process. In such cases, controls in the child process cannot be detected unless the adapter is configured to attach to child processes as well.

According to the Pega Robotics System Design and Implementation Guide, in the section “Java Application Integration and Child Processes”:

“For Java applications that spawn additional processes, set the HookChildProcesses property of the adapter to True.

This enables the adapter to attach to both the main process and any child processes created by the parent application, allowing interrogation and automation of controls within those secondary windows.”

Detailed Reasoning:

HookChildProcesses ensures that when a Java application spawns a new process (such as a popup or a grid), Pega Robotics attaches to and monitors that process.

Without enabling this property, the adapter would only recognize the primary Java process, leaving controls in secondary processes unrecognized.

Option Analysis:

A. HookChildProcesses: Correct. Allows interrogation of child processes.

B. EnableMatchInProcess: Incorrect. Used for controlling object matching within the same process context.

C. TargetPath: Incorrect. Defines executable location for adapters.

D. IgnoreMainBrowser: Incorrect. Related to web adapters, not Java applications.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

Pega Robot Studio provides multiple ways to configure or modify Pega Server connectivity settings used for Robot Manager deployment. These settings define the server URL, operator credentials, and authentication method.

According to the Pega Robotics System Design and Implementation Guide, section “Configuring Pega Server Connectivity”:

“Server connectivity settings can be specified in multiple ways within Pega Robot Studio:

During the initial installation process, when prompted to enter Robot Manager URL and credentials.

By navigating to the Tools → Options → Server Connectivity menu to edit or test server details.

By adjusting the Change Server fields that appear during the deployment process to override existing configurations.Manual editing of XML files is not recommended for changing server connectivity settings.”

Detailed Reasoning:

A. Edit the Change Server fields during the deployment process – Correct. The deployment wizard allows adjusting or overriding existing server settings.

B. Configure the server settings during the initial installation of Pega Robot Studio – Correct. The installation wizard prompts for server setup.

C. Rerun the Pega Robot Studio installation and configure the server settings – Not necessary unless reinstallation is required.

D. Manually edit the PegaStudioConfig.xml file – Not recommended or supported for changing connectivity.

E. Edit the Server Connectivity settings in the Tools menu in Pega Robot Studio – Correct. This is the standard interface to modify or test connection settings.

This question is about understanding how a For Loop interacts with a Data Grid View (dgv) control, specifically using the GetCellValue method in Pega Robot Studio automations.

Automation Analysis

Let’s break down the logic step by step:

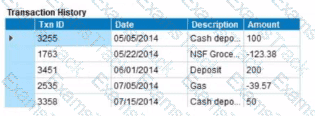

1. Transaction History Table (Data Grid)

Row Index

Txn ID

Date

Description

Amount

0

3255

05/05/2014

Cash deposit

100

1

1763

05/22/2014

NSF Grocery

-123.38

2

3451

06/01/2014

Deposit

200

3

2535

07/05/2014

Gas

-39.57

4

3358

07/15/2014

Cash deposit

50

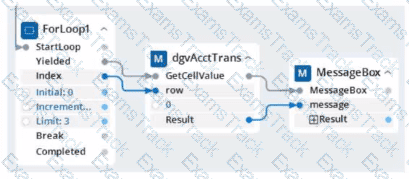

2. For Loop Configuration

Initial: 0

Increment: 1

Limit: 3

→ The loop will execute for Index values 0, 1, and 2 (because the limit is exclusive at 3).

3. GetCellValue Method

The GetCellValue method retrieves a value from the Data Grid View (dgvAcctTrans) control.

It uses two input parameters:

Row → the row index (connected from For Loop Index)

Column → the column index (hard-coded as 0)

In the automation, the column value is explicitly set to 0, meaning it will always retrieve the Txn ID column.

4. Execution Order

Iteration

Row Index

Column (0 = Txn ID)

Retrieved Value

Output (MessageBox)

1

0

0

3255

MessageBox shows 3255

2

1

0

1763

MessageBox shows 1763

3

2

0

3451

MessageBox shows 3451

5. Output Sequence

The MessageBox displays three transaction IDs in order:

3255, 1763, 3451

Conclusion

The GetCellValue retrieves only the first column (Txn ID) for rows 0 to 2.

Thus, the automation will display the transaction IDs sequentially in three message boxes.

Correct Answer: A. 3255, 1763, 3451

Comprehensive Extract from Pega Robotics Documentation:

From Pega Robotics System Design and Implementation Guide, section “Using Data Grid View Controls in Automations”:

“The GetCellValue method retrieves the value at a specified row and column index of a DataGridView control.

When used in conjunction with a ForLoop component, the row parameter is typically connected to the ForLoop’s Index output.

The loop executes from the defined Initial value to one less than the Limit value, retrieving sequential cell values for each iteration.”

Detailed Reasoning Recap:

ForLoop Index runs: 0, 1, 2

GetCellValue(row, 0) retrieves column 0 (Txn ID) for each row.

MessageBox displays results sequentially.

Final Answer: A. 3255, 1763, 3451

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

The Lookup Table is a global component in Pega Robot Studio that can be accessed from multiple automations within a project.

To use its methods—such as ImportDelimitedFile, FindRecord, or AddRecord—you must drag the lookup table instance from the Globals section to the automation surface.

According to the Pega Robotics System Design and Implementation Guide, section “Using Lookup Tables in Automations”:

“Lookup tables are global components that store data used across automations.

To call lookup table methods, drag the table from the Globals section of the Palette to the automation design surface.

The Select Action dialog box will open, allowing you to filter and select from available methods such as ImportDelimitedFile, FindRecord, and ClearTable.”

Detailed Reasoning:

A. Select the ImportDelimitedFile method in a design form... – Incorrect. The lookup table is not part of the UI form.

B. Drag the lookup table from the Locals section... – Incorrect. Lookup tables exist under Globals, not Locals.

C. Open the Globals tab and filter... – Incorrect. You must drag the component onto the automation surface to expose its methods.

D. Drag the lookup table from the Globals section... – Correct. This exposes the ImportDelimitedFile method through the Select Action dialog.

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

According to the Pega Robotics Interrogation and Matching Engine Documentation:

“When you interrogate controls in a web application using Chrome or Edge browsers without X-ray Vision, Pega Robot Studio utilizes a simplified set of match rules because these browsers do not expose a full DOM structure with automation identifiers.”

The documentation specifies:

“In non-X-ray Vision interrogation mode, the following three match rules are applied automatically to identify a control:

• Attribute Value Match Rule – Matches a control by its defined attribute (such as ‘id’, ‘name’, or ‘class’).

• Property Value Match Rule – Matches the control based on its property values exposed during interrogation (for example, ‘InnerText’ or ‘TagName’).

• Element Path Match Rule – Matches the control by its relative position in the DOM hierarchy.”

It also states:

“Without X-ray Vision, browser-specific identifiers and deep hierarchical context are not available; therefore, only the Attribute Value, Property Value, and Element Path rules are utilized for Chrome and Edge interrogation.”

References (Exact Extract Source):

Pega Robotics Studio User Guide – Web Adapter and Match Rules Section

Pega Academy – Robotics System Architect Course (Interrogation in Web Applications)

Pega Robotics Help – Interrogation with and without X-ray Vision

Final Verified Answer: B, C, F

Comprehensive and Detailed Explanation From Pega Robotics System Exact Extract:

In Pega Robot Studio, the Start My Day (SMD) functionality allows a user to define and launch all required applications at once when starting work. The configuration of these applications is performed in the Manage Applications window, where each application can be individually enabled or disabled for automatic startup.

According to the Pega Robotics System Design and Implementation Guide, in the section “Start My Day Configuration and Manage Applications”, the documentation specifies the following:

“Applications configured for Start My Day will launch automatically when the Start My Day feature is invoked.

The Manage Applications dialog lists all project applications and determines which ones are launched using the ‘Enabled’ checkbox.

Only applications marked as enabled will be started when the user initiates Start My Day. Applications that are listed but not enabled remain closed.”

The screenshot in the question shows the following configuration under the Manage Applications window:

Application

Enabled

Type

Path

Pega Finance

Yes

Adapter

C:\Users\Pega Training\Desktop\BankerInsight...

BankerInsight

Yes

Adapter

C:\Program Files (x86)\CRM Setup\CRM.exe

CRM

No

Exe

C:\Program Files (x86)\CRM Setup\CRM.exe

Notepad

Yes

Exe

C:\Windows\notepad.exe

From this configuration, the Enabled column indicates that the following applications will start automatically when Start My Day is triggered:

Pega Finance

BankerInsight

Notepad

The CRM application is not enabled and therefore will not launch.

Option Analysis:

Option A (Pega Finance, Notepad, BankerInsight): Correct, as these are the enabled applications.

Option B (CRM, BankerInsight): Incorrect, because CRM is not enabled.

Option C (CRM, Notepad, BankerInsight): Incorrect, because CRM is not enabled.

Option D (Pega Finance, CRM, Notepad, BankerInsight): Incorrect, because CRM is not enabled.

Therefore, the correct answer is A. Pega Finance, Notepad, BankerInsight.
