Free Nokia 4A0-D03 Practice Exam with Questions & Answers

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

This scenario describes all-active Layer 2 EVPN multi-homing with a host connected through a LAG to Leaf1 and Leaf2. The LAG subinterface is associated with the MAC-VRF on both participating leaves, and the Ethernet Segment ES-1 is configured for all-active multi-homing. In all-active operation, both leaf routers can be active attachment points for host-originated traffic, and remote traffic can use EVPN multi-homing mechanisms to reach the segment. Option D is false because the host does not know or use the EVPN Designated Forwarder state when sending BUM traffic. The host forwards over its LAG based on its local LAG hashing and LACP behavior. DF election is an EVPN PE-side mechanism used mainly to control which PE forwards BUM traffic from the EVPN overlay toward the Ethernet Segment, preventing duplicate delivery to the multihomed access network. The host itself does not selectively forward all BUM traffic toward the DF. That distinction is critical: DF controls overlay-to-segment replication, while the host's LAG controls host-to-leaf link selection. Reference: all-active L2 EVPN multi-homing, host LAG behavior, DF election scope, BUM forwarding.

================

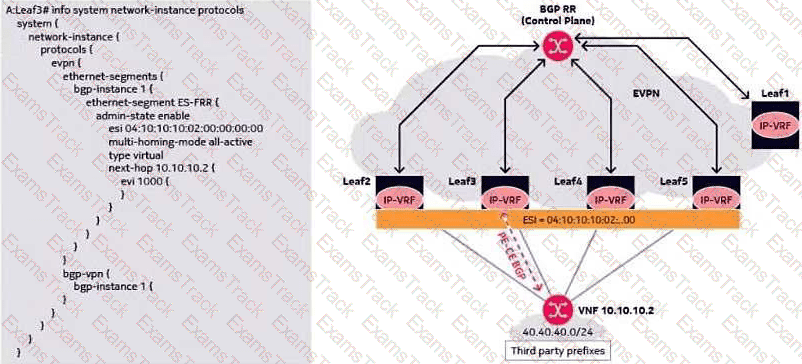

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The exhibit describes a Layer 3 multi-homing scenario where the Ethernet Segment is associated with an IP-VRF and the configuration references an EVI value of 1000. The segment is configured with all-active multi-homing, allowing multiple attached leaf routers to advertise reachability for the same external L3 next-hop or third-party prefix attachment. In this model, the Ethernet Segment represents the shared L3 attachment and is used by EVPN to associate remote prefix reachability with the multi-homed segment. The incorrect statement is that a LAG must be configured on the connected leaf routers and the host. That requirement is specific to many Layer 2 all-active host attachment designs, where the host commonly uses LACP toward multiple leaf routers and the leaf LAG subinterfaces are associated with the Ethernet Segment. In Layer 3 multi-homing, the attached device can be a router or VNF, and the EVPN ES association can be used for L3 prefix reachability without mandating that the host side be configured as a LAG. Reference: L3 EVPN multi-homing, EVI association, all-active Ethernet Segment behavior.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

An anycast-gateway IRB allows multiple PEs to present the same default-gateway IP address to hosts in the same subnet. This is the mechanism that enables distributed gateway behavior in EVPN fabrics. The same anycast gateway IP may be configured on equivalent IRB subinterfaces across remote PEs participating in the same IP-VRF, allowing hosts to use the nearest leaf as their default gateway without changing their gateway address. SR Linux also associates gateway MAC information with the IRB, including virtual gateway MAC behavior used inside the MAC-VRF forwarding table. Option C is false because the anycast gateway IP is not treated as a normal unique host route that appears in the IP-VRF route table alongside the subnet prefix. The subnet route is installed for the connected network, but the shared anycast gateway address is a gateway function, not a separately advertised host endpoint that should appear as ordinary routed host reachability. Treating the anycast IP as a regular host route would undermine the distributed gateway model and create ambiguous ownership across PEs. Reference: IRB anycast gateway, MAC-VRF/IP-VRF interconnection, distributed default-gateway operation.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Ethernet Auto-Discovery per EVI routes are EVPN route type 1 advertisements used in multi-homing at the service-instance level. A PE sends an AD per EVI route for each MAC-VRF associated with the Ethernet Segment. These routes allow remote PEs to understand that the advertising PE has reachability to a given EVI through the shared ES. They are also used for aliasing and fast convergence, because a remote PE can treat multiple attached PEs as valid paths for traffic toward the same multihomed segment. In VXLAN EVPN, the update can include data-plane information such as the VNI, and it carries route-target information so the route is imported into the correct MAC-VRF. Option B is false because the multi-homing type or redundancy mode is not carried in the AD per EVI update as stated. Redundancy behavior is associated with Ethernet Segment-level signaling and configuration, especially ES discovery and related route attributes, not with AD per EVI as the mechanism that declares the multi-homing type. Reference: EVPN RT-1 AD per EVI, MAC-VRF association, route target, VNI, aliasing.

================

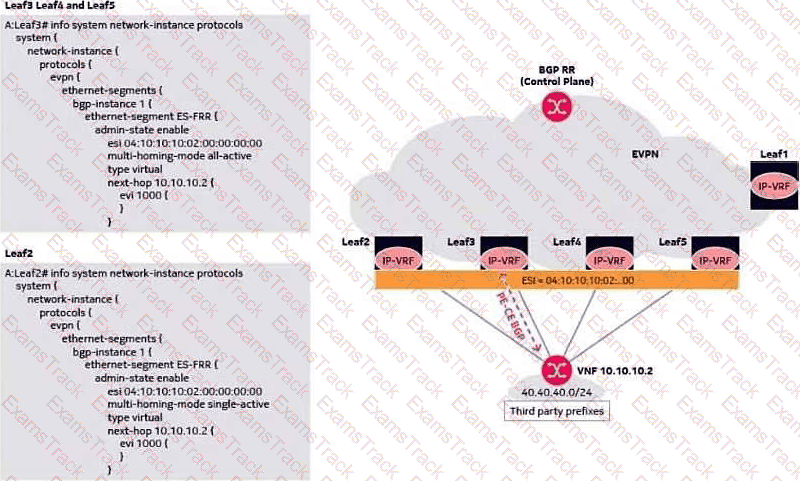

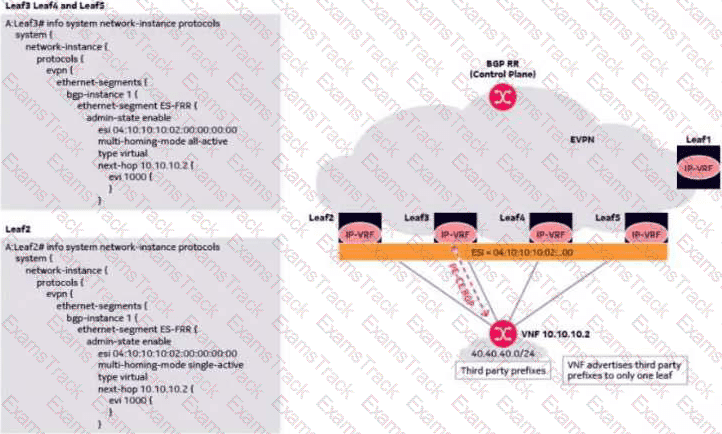

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics] :

In a single-active EVPN multi-homing design, the connected PE routers perform Designated Forwarder election to determine which PE is active for the relevant service or Ethernet Segment. The DF is responsible for forwarding toward the attached segment and, in a Layer 3 multi-homing case, only the active/DF PE advertises the customer IP prefix route toward the EVPN control plane. Single-active redundancy is communicated using Ethernet Segment-related EVPN procedures, including Ethernet A-D information, so remote PEs can identify the redundancy behavior and avoid forwarding traffic to an inactive attachment. The false statement is that the elected DF uses an AD per EVI update to identify itself as primary. AD per EVI is primarily used to advertise per-service Ethernet Segment reachability and support aliasing/load-balancing behavior in multi-homed services. DF election itself is driven by Ethernet Segment route procedures, not by the DF declaring itself primary through AD per EVI. Therefore, option B misstates the role of AD per EVI in the single-active L3 multi-homing control plane. Reference: EVPN DF election, single-active multi-homing, Ethernet A-D routes.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

The route target is the extended community consistently associated with EVPN updates to control route import and export between EVPN instances. In SR Linux EVPN services, route targets determine which MAC-VRF or IP-VRF should import a received EVPN route. This is essential for tenant separation because multiple tenants may use overlapping MAC or IP address spaces while sharing the same physical fabric and BGP control plane. The AFI/SAFI is not an extended community; it identifies the BGP address family and subsequent address family used to carry EVPN NLRI. The EVPN route type is also not an extended community; it is part of the EVPN NLRI structure and identifies whether the route is RT-1, RT-2, RT-3, RT-4, RT-5, and so on. The VXLAN network ID may be carried or inferred through service and encapsulation-specific attributes, but it is not universally present as the required extended community in every EVPN update. The route target is the mandatory policy element that enables receiving PEs to place EVPN routes into the correct service context. Reference: EVPN extended communities, route-target import/export policy, tenant service identification.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a distributed Layer 2 EVPN service, the local leaf learns host reachability from frames received on access interfaces. When a host replies to an ARP request, the local leaf can learn the source MAC address from the Ethernet frame and install it in the MAC forwarding table. If the ARP payload contains an IP/MAC binding, the PE can also use that information for proxy ARP and EVPN MAC/IP advertisement. The local PE then advertises the learned endpoint reachability using EVPN route type 2 to its BGP EVPN peers or route reflector. The false statement is B. The ARP reply is not replicated to every leaf in the flooding list as a normal operation. EVPN's purpose is to reduce unnecessary flooding by distributing endpoint reachability through the control plane. BUM replication is used for broadcast, unknown unicast, and multicast traffic when needed, but a learned ARP reply does not require blind replication to all remote leaves. Instead, the leaf advertises the learned MAC/IP state through MP-BGP EVPN, allowing remote PEs to install accurate forwarding and proxy ARP state. Reference: distributed L2 EVPN operation, ARP learning, EVPN RT-2 advertisement.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In active-standby, or single-active, Layer 2 EVPN multi-homing, only one PE is active for the Ethernet Segment and MAC-VRF at a time. Leaf1 and Leaf2 participate in DF election, and the elected DF becomes the active forwarding PE for that service attachment. Because this is not all-active multi-homing, the non-DF must not forward traffic to the host for the protected service. This prevents duplicate frames, incorrect MAC learning, and loops on the access side. The DF accepts traffic from the host and forwards BUM traffic received from remote PEs toward the host-facing segment. Option D is false because it claims that the non-DF can forward unicast traffic from remote PEs to the host. In single-active operation, remote peers must direct traffic to the active PE, and the standby PE remains ready to take over only after DF state changes. This is the operational distinction from all-active multi-homing, where more than one PE may be used for forwarding depending on the traffic type and aliasing behavior. Reference: single-active L2 EVPN multi-homing, DF role, non-DF forwarding suppression.

================

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A Gratuitous ARP is an ARP message a host sends to announce or refresh its own IP-to-MAC binding without waiting for another host to request it. In a traditional Ethernet subnet, the GARP is sent as a broadcast so that other hosts can update their ARP caches with the sender's current MAC address. This is useful after a host boots, changes NICs, moves to another attachment point, or takes over an IP address in a redundancy scenario. In EVPN environments, GARPs are also important because a leaf can snoop the ARP information and update local proxy ARP and EVPN MAC/IP state. Option D is false because recipients do not acknowledge a gratuitous ARP with a reply. GARP is an announcement mechanism, not a request/response transaction. If every receiving host acknowledged a broadcast GARP, the result would be unnecessary ARP traffic amplification. The correct behavior is passive update of ARP state by receiving systems and, in EVPN, potential control-plane propagation of the learned binding by the local PE. Reference: GARP behavior, proxy ARP learning, Layer 2 EVPN endpoint update procedures.

================

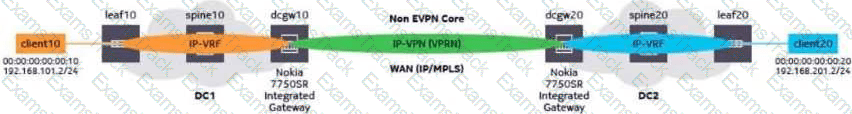

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A decoupled gateway-based DCI model separates the data center border-leaf function from the WAN PE function. This separation is the key design point. The border leaf remains part of the data center EVPN/VXLAN environment, while the WAN PE participates in WAN VPN transport and policy enforcement. Because the roles are split across two devices, the handoff between the border leaf and WAN PE provides a clean administrative and operational boundary. That boundary is useful for security policy, QoS marking, traffic classification, and troubleshooting ownership. The WAN does not need direct reachability to every leaf and route reflector as in a gateway-less model. The WAN PE also does not peer directly with the data center route reflector in a decoupled model; route exchange occurs through the border-leaf/WAN-PE handoff. VXLAN tunnels between leaf routers across different data centers are characteristic of gateway-less extension, not decoupled gateway operation. Therefore, the statement about clear demarcation between the data center border leaf and WAN PE is the accurate description. Reference: decoupled gateway-based DCI, security/QoS demarcation, WAN PE separation.

================
