After deleting a LUN, if the space does not show as available, performing space reclamation is necessary. Space reclamation involves identifying and reclaiming unused space on the storage system, making it available for new data. This process ensures that the deleted LUN ' s space is properly freed up and reflected in the available storage capacity.

For more details, refer to:

NetApp Documentation on Space Reclamation

NetApp Community on Free Space Reclamation

For a NetApp AFF All SAN Array (ASA) A800 MetroCluster IP configuration with 72 disks per site and Cisco N9K-C9336C-FX2 backend switches, the minimum number of rack units required on each site is 16 RU. This includes space for the controllers, disk shelves, and the necessary network switches. This configuration ensures that all components are properly accommodated and operational within the specified rack space.

For detailed information on the rack unit requirements and MetroCluster IP configurations, refer to:

NetApp Documentation on MetroCluster IP

MetroCluster IP Solution Architecture

Active IQ OneCollect is the appropriate discovery tool when the engineer needs an end-to-end inventory of a SAN environment. NetApp describes OneCollect as a structured data-collection utility that gathers information across storage systems, hosts, fabrics, and switches. That scope is specifically useful when existing documentation is missing and the engineer must understand initiators, HBAs, zoning or fabric details, host configuration, and storage targets before remediation or migration work. Upgrade Advisor is intended for ONTAP upgrade planning, while Unified Manager focuses on monitoring and management rather than broad discovery collection. Config Advisor validates configuration and cabling against supported practices, but it is not the primary end-to-end inventory collector described in this scenario. Relevant SAN ONTAP topics are SAN discovery, OneCollect data collection, host and fabric inventory, configuration assessment, and implementation documentation.

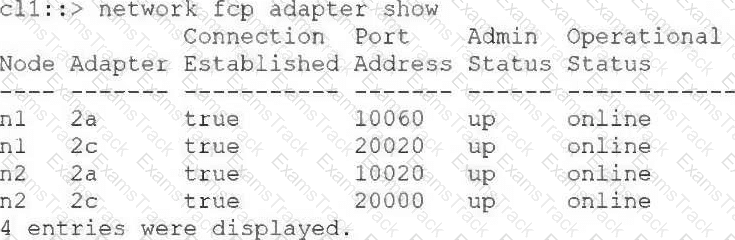

The port address shown for node n2, adapter 2a is 10020. ONTAP reports the FC host port address as a hexadecimal fabric address. Fibre Channel port addresses are interpreted as a 24-bit FC address; when the displayed value is zero-padded to six hexadecimal digits, 10020 becomes 010020. The high-order byte is therefore 01, identifying switch domain ID 1. NetApp’s network fcp adapter show command reference confirms that the command reports the Host Port Address and also exposes a domain-id field for the connected fabric. The other choices do not match the domain portion of this FC address. Therefore, the V9.02 supplied answer of D is incorrect for the displayed output. Relevant SAN ONTAP topics are FCP adapter diagnostics, FC port addresses, domain IDs, and fabric connectivity.

The vserver nvme namespace convert-from-lun command in a NetApp ASA cluster is used to convert a LUN to an NVMe namespace to increase host performance. This process involves modifying the metadata of the storage object to make it compatible with the NVMe protocol, allowing for faster access and reduced latency​

To check the status of a SnapMirror active sync disaster recovery test on a NetApp ONTAP cluster, you would use the command snapmirror failover show. This command provides the necessary details about the failover status, helping administrators verify if the disaster recovery test is proceeding as expected. It displays the status of the failover groups and their readiness, which is essential for confirming the effectiveness of the disaster recovery setup.

For more detailed information on SnapMirror commands and their usage, refer to:

NetApp Documentation - SnapMirror Commands ​ ( NetApp Community )​​ ( NetApp Community )​.

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

For configuring LUNs to share with ESXi hosts for datastores in an SVM created for FCP traffic, the following steps are necessary after creating the LUN:

Create an igroup with the ESXi hosts ' WWPNs: This step involves defining an initiator group that includes the WWPNs of the ESXi hosts that need access to the LUN.

Map the LUNs to the igroup: This step assigns the LUN to the created igroup, allowing the ESXi hosts to access the LUN.

For further details, refer to:

NetApp Documentation on LUN and igroup Configuration

When the number of paths exceeds the recommended configuration for SAN deployment, it can cause performance issues. To address this problem, you can:

Use Selective LUN Mapping (SLM): SLM allows you to control which LIFs (Logical Interfaces) are used to access specific LUNs, thus reducing the number of paths and potentially improving performance by aligning with best practice configurations.

Reconfigure the fabric switch zoning: Adjusting the zoning on the fabric switches can help manage and optimize the number of paths, ensuring that there are not too many paths that could lead to inefficient I/O operations and performance degradation.

For more details, refer to:

NetApp SAN Host Configuration

NetApp Best Practices for SAN

ONTAP supports iSCSI LIF migration between nodes specifically on All-Flash SAN Array (ASA) platforms running ONTAP 9.11.1 or later. The migration is restricted to ports on the LIF’s home node or its HA partner, and the applicable CLI operation is network interface migrate. Standard AFF and FAS configurations do not provide the same cross-node iSCSI LIF migration capability described in this scenario. For those systems, an iSCSI LIF normally must be created on the required destination node rather than migrated between nodes. The ucadmin modify command changes unified adapter personality and is unrelated to LIF migration. Therefore, option D correctly combines the supported ASA platform with the appropriate ONTAP command. Relevant topics include ASA SAN networking, iSCSI LIF mobility, HA partners, LIF migration, and nondisruptive SAN operations.
