The Packet Forwarding Engine (PFE) represents the data plane of a Junos device, responsible for the high-speed processing and movement of packets through the system. Its primary role is to forward transit traffic—data that enters one interface and exits another—at wire speed using specialized hardware such as Application-Specific Integrated Circuits (ASICs). To accomplish this, the PFE utilizes a local copy of the Forwarding Information Base (FIB) provided by the Routing Engine, ensuring that forwarding decisions are made locally without requiring the main CPU ' s intervention for every packet.

In addition to pure forwarding, the PFE is the functional component that implements and executes firewall filters and policing. Because firewall filters must be applied to transit traffic at line rate to prevent bottlenecks, the PFE evaluates incoming and outgoing packets against configured filter terms in hardware. This ensures that security policies and traffic shaping are applied with minimal latency. It is critical to note that the PFE does not maintain the master routing table (RIB) or perform route selection; those " intelligent " control plane functions are strictly the domain of the Routing Engine. By offloading the repetitive tasks of packet inspection and hardware forwarding to the PFE, Junos OS maintains consistent performance even under heavy traffic loads or complex security configurations. Reference: Junos OS Fundamentals, Packet Forwarding Engine Architecture.

==========

In the Junos OS architecture, the routing table often receives prefix information from various sources, including direct connections, static configurations, and multiple dynamic interior and exterior gateway protocols. Route preference, frequently referred to as administrative distance in other vendor environments, serves as the primary tie-breaking mechanism used by the Routing Engine to select a single " active " route when multiple entries for the exact same destination prefix exist from different protocol sources. Each routing source is assigned a default numerical value, where a lower numerical value indicates a more preferred or " trustworthy " source. For instance, a direct route typically carries a preference of 0, while OSPF internal routes default to 10 and BGP routes default to 170.

The selection process evaluates these values; the route with the lowest preference is installed in the forwarding table and used for transit traffic. If preferences are equal, Junos secondary tie-breakers like local preference or metric are considered. Understanding this hierarchy is critical for traffic engineering and ensuring predictable routing behavior across the fabric. Modification of these default values via routing policy allows administrators to influence path selection without altering the underlying protocol metrics themselves.

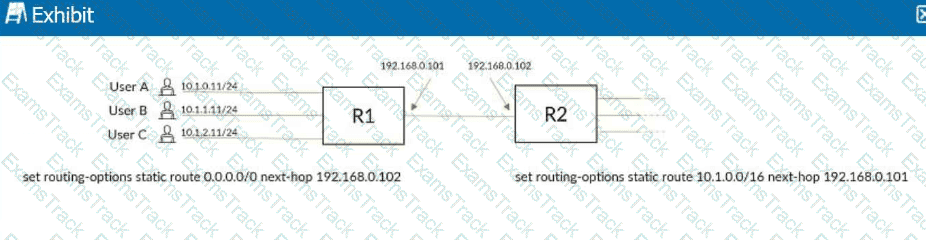

The configuration exhibit demonstrates a classic scenario where mismatched static routing leads to a routing loop . Router R1 is configured with a default route ( 0.0.0.0/0 ) pointing to R2 as its next hop. Conversely, R2 is configured with a broad static route for 10.1.0.0/16 pointing back to R1 .

If a user sends a packet to an unassigned IP address such as 10.1.99.1 , the following sequence occurs:

R1 receives the packet and consults its routing table. Finding no specific match for the 10.1.99.1 host, it uses the default route and forwards the packet to R2 .

R2 receives the packet and identifies that 10.1.99.1 falls within its defined static route for 10.1.0.0/16 .

Following its configuration, R2 forwards the packet back to R1 . This process repeats indefinitely—or until the packet ' s Time to Live (TTL) reaches zero—because the broad summary on R2 encompasses addresses that R1 does not actually have a local path for. This illustrates the critical importance of ensuring that summary routes or default routes do not overlap in a way that creates circular forwarding paths for non-existent destinations. Reference: Routing Fundamentals, Static Route Configuration, Routing Loops and TTL.

==========

The exhibit illustrates the configuration of a firewall filter named mgmt_fill and its subsequent application to an interface. The first true statement is that the filter is applied to a physical interface . The configuration shows the filter attached to me0 , which in Junos nomenclature represents the Management Ethernet port—a dedicated physical port for out-of-band management traffic. This is separate from logical or virtual interfaces, as me0 provides the physical link for administrative access.

The second true statement is that the filter evaluates SSH packets egressing from the management interface . In the provided snippet, term t1 specifically matches the destination-port ssh , and the filter is applied to the interface unit. When a filter is applied to an interface, it can monitor traffic entering or leaving the device. Furthermore, the filter utilizes a count action (count c1), which is a non-terminating action used to provide telemetry on specific traffic types passing through that physical port. There is no mention of a syslog or log action in the configuration, meaning that while packets are counted, they are not being written to the system log files. This configuration is a standard method for hardening the management plane and tracking administrative session activity on the Routing Engine. Reference: Routing Policy and Firewall Filters, Firewall Filter Actions, Management Interfaces.

==========

Securing the management plane is a core requirement for any Junos OS deployment. Secure Shell (SSH) is the industry-standard protocol used to provide encrypted, authenticated remote access to the Junos Command Line Interface (CLI). Unlike Telnet, which transmits both administrative credentials and command data in cleartext, SSH utilizes public-key cryptography to establish a secure tunnel, protecting the session from eavesdropping, man-in-the-middle attacks, and unauthorized interception.

In Junos OS, SSH is typically enabled within the [edit system services] hierarchy. Once active, it allows administrators to perform operational and configuration tasks with the assurance that their management traffic remains confidential. Beyond simple terminal access, SSH serves as the transport mechanism for other secure management functions, such as the NETCONF XML management protocol and Secure Copy (SCP) for file transfers. For high-security environments, Junos supports advanced SSH features including key-based authentication, strong cipher suites, and multi-factor authentication integration. Disabling insecure protocols like Telnet and FTP in favor of SSH and SFTP/SCP is a foundational best practice for hardening the Routing Engine against external threats.

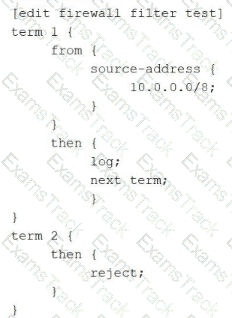

Junos OS firewall filters operate on a sequential, " first-match " logic, but their behavior is significantly influenced by the use of terminating versus non-terminating actions. In this exhibit, a packet with a source address of 10.0.0.0/8 is evaluated against the filter named test.

Evaluation begins with term 1 . The packet matches the source-address criteria, triggering the actions defined in the then statement. The first action is log, which sends the packet header information to the firewall task buffer for logging. The second action is next term . This is a critical non-terminating action ; it instructs the Packet Forwarding Engine (PFE) to continue the evaluation process using the subsequent term in the filter rather than stopping after the match.

Evaluation then moves to term 2 . Because term 2 contains no from match conditions, it acts as a " catch-all " for any traffic that reaches it. The action in this term is reject . This is a terminating action that discards the packet and sends an ICMP " destination unreachable " message back to the source. Therefore, the packet is first recorded by the logging process and is subsequently dropped by the rejection mechanism. If next term had not been present in term 1 , the packet would have been implicitly accepted (as any matched term without a terminating action like discard, reject, or accept defaults to an implicit accept in that specific term). However, the explicit instruction to move forward ensures the packet hits the reject statement.

Junos OS provides robust automation features for configuration management, specifically through the system archival utility. When an administrator needs to ensure that every successful configuration change is mirrored to an off-box repository for disaster recovery or auditing, the transfer-on-commit statement is the appropriate tool. This command instructs the Junos device to initiate an automated upload process immediately following the validation and activation of a commit command.

To fully implement this, the administrator must also define the archive-sites, which specify the destination URIs (using protocols such as FTP, SCP, or HTTP) and the necessary credentials for the external server. While transfer-interval can be used to back up configurations on a chronological schedule (e.g., every 60 minutes), transfer-on-commit is superior for tracking specific change events as they happen. This ensures that the external backup is always synchronized with the current active configuration on the device. Once configured, the device handles the background transfer, allowing the administrator to maintain a historical record of configuration states without manual intervention, which is essential for large-scale operational environments.

The Junos OS CLI is engineered with an extensive, self-contained help subsystem designed to provide immediate technical guidance without requiring constant reference to external manuals. The help command is a versatile tool that operates through several key sub-commands: topic, reference, and log. While help topic provides conceptual overviews and help reference displays specific configuration syntax and hierarchical requirements, the help log command is specifically tailored for system maintenance and troubleshooting.

The primary purpose of help log is to provide a detailed explanation for specific system log error messages generated by the device. When a Junos daemon or process writes an entry to the syslog, it includes a unique message identifier or " tag. " By executing help log < message-tag > , an architect can retrieve a clinical breakdown of why the message was generated, the severity of the event, and often the recommended action to resolve the underlying issue. This capability is vital for rapid interpretation of complex system events in real-time. It ensures that administrators have authoritative, context-aware information directly at the terminal, effectively bridging the gap between raw diagnostic output and actionable technical intelligence within the Junos environment. Reference: User Interfaces, CLI Help Facilities, help log.

==========

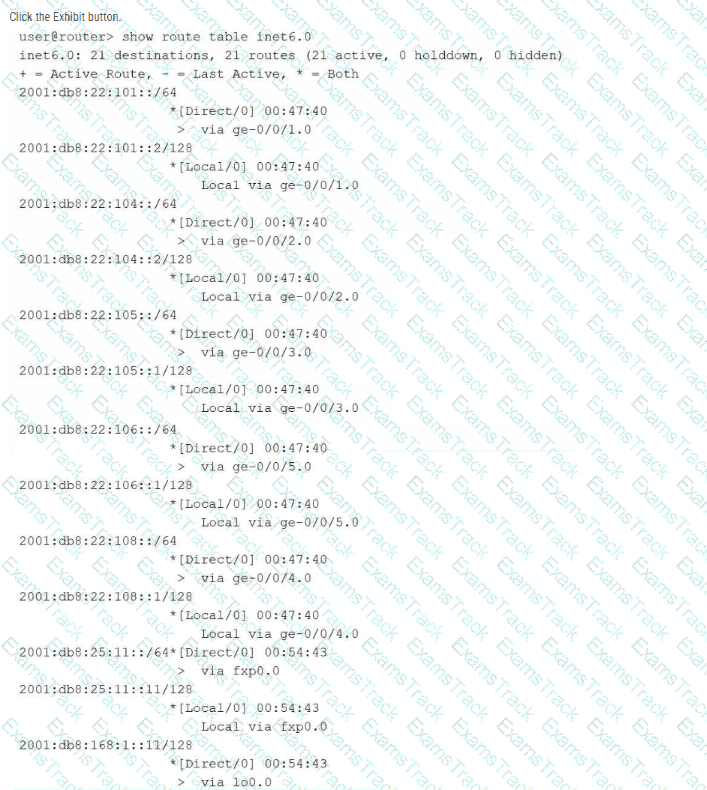

The provided exhibit displays the output of the show route table inet6.0 command, which represents the master routing table for IPv6 unicast traffic in Junos OS. Analysis of the specific route entries reveals that all listed destinations are categorized as either [Direct/0] or [Local/0] . These route types indicate that the table only contains networks physically connected to the router ' s interfaces and the specific IP addresses assigned to those interfaces.

Because there are no routes identified by dynamic protocols (such as OSPFv3, IS-IS, or BGP) or static entries, it is verified that the router is not learning IPv6 routes from any neighbors or peers. Consequently, the routing table lacks reachability information for any non-local or remote IPv6 segments. Without these routes or a configured default gateway (::/0), the router is unable to forward traffic to remote IPv6 networks. Statements C and D are factually incorrect based on the exhibit: the 2001:db8:22:108::/64 network is associated with interface ge-0/0/4.0 (not ge-0/0/5.0), and the 2001:db8:22:107::/64 network is entirely absent from the displayed routing table.

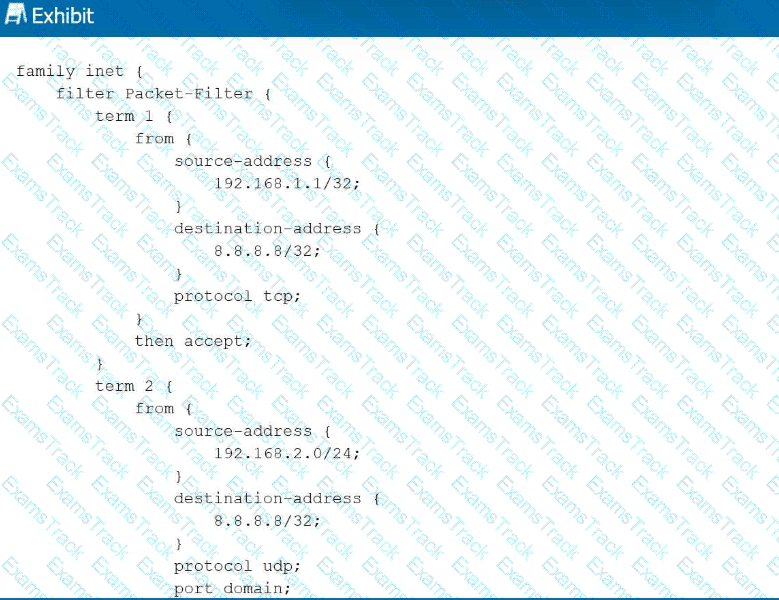

Junos OS firewall filters operate on a first-match basis, evaluating terms sequentially from top to bottom. In this scenario, a UDP DNS packet (destination port 53) is sent from 192.168.1.1 to 8.8.8.8. Evaluation begins with term 1 , which matches the correct source and destination IP addresses but specifies protocol tcp . Because the actual traffic uses UDP, term 1 is not a match. Evaluation then moves to term 2 . While term 2 correctly identifies protocol udp and port domain (port 53), it requires the source-address to reside within the 192.168.2.0/24 subnet. Since the source is 192.168.1.1 , term 2 also fails to match.

When a packet fails to match any explicitly defined terms in a Junos firewall filter, it is subject to the implicit deny action. This default " last term " is a hardcoded safety mechanism that automatically discards all traffic that has not been explicitly permitted. Consequently, because neither term provides a match for the specific combination of source IP, protocol, and destination port, the DNS query is silently dropped by the Packet Forwarding Engine. This behavior ensures that Junos devices maintain a " deny-by-default " security posture, requiring administrators to define precise permit statements for all required transit or management traffic. Reference: Routing Policy and Firewall Filters, Firewall Filter Evaluation, Implicit Discard.

==========
