Free Huawei H12-521_V1.0 Practice Exam with Questions & Answers

The incorrect statement is D . The domain interconnection capability is described in a one-way supervisory model in which the upper-level domain can consume resources and services provided by the lower-level domain . The material explicitly states that “Users in the upper-level domain can view the alarms reported by the lower-level domain” , “Users in the upper-level domain can set recording plans for cameras in the lower-level domain” , and “Users in the upper-level domain can view live video and recordings … from all cameras in the lower-level domain. In addition, the users can perform PTZ controls over all cameras in the lower-level domain” . These statements directly validate A, B, and C .

The backup direction also confirms why D is wrong. The material states that “Users in the upper-level domain can use the live video and recording backup function to back up recordings of a lower-level domain to MPUs of the local domain, domains of the same level, and upper-level domain” . That means the supported backup flow is from the lower-level domain upward or laterally, not from the upper-level domain down to a lower-level domain. Therefore, D is the incorrect statement.

The correct answer is A. TRUE . The idea of an observation circle in video site planning is to form a perimeter-style observation system around a protected area so that targets can be detected, tracked, and controlled at key boundary points. This matches the planning logic used in intelligent vision deployments, where site selection focuses on strategically important locations. The material identifies priority planning positions such as “Road intersections and entrances and exits” and “Key areas in cities” . These are exactly the kinds of points used to form an observation circle.

From a professional planning perspective, the observation circle concept is not just about placing cameras randomly; it is about creating an enclosed prevention-and-control framework by covering the external boundary and critical transition points of an area. Inter-city boundaries and city entrances or exits are typical examples because they are natural choke points for observation, vehicle monitoring, and event response. By surrounding the target area through layered site deployment, the system improves awareness, traceability, and early warning capability. Therefore, the statement correctly describes the purpose and example of an observation circle.

The correct answers are A, B, and C . The login-address logic is consistent with Huawei platform addressing rules. The material states that when a service is deployed in clustered form, the floating IP must be used, for example: “If the BMU is deployed in two-node cluster mode, enter the external service floating IP address of the BMU” . That directly supports the cluster half of A , and the corresponding single-node logic uses the normal external service address rather than a floating address.

The iClient also works across multiple Huawei platform products, which is why product selection during login is required in practice. In addition, the inter-platform relationship must be established before intelligent analysis services can be configured in platform mode. The material explicitly states “Before connecting two domains with each other, configure the local domain code and external domain information on platforms in both domains” . This directly supports C and also proves why D is false: the connection is not configured only on the iClient; it must be configured on the involved platforms themselves. Therefore, A, B, and C are the correct statements.

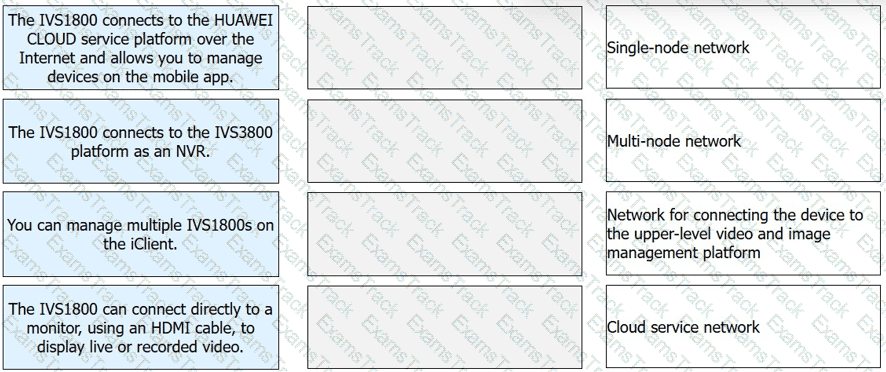

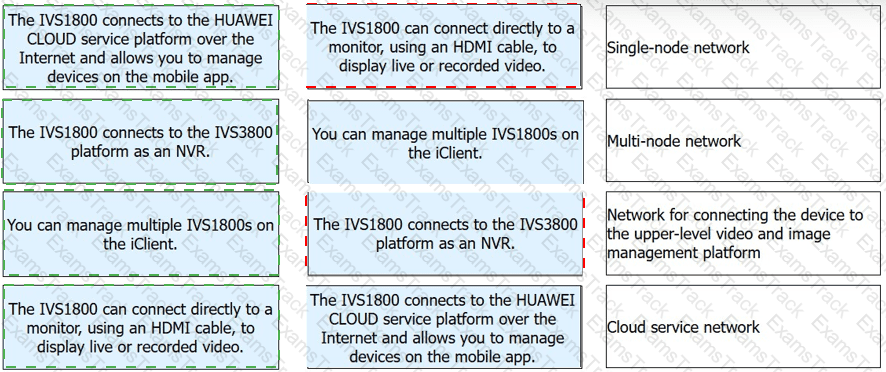

Cloud service network → The IVS1800 connects to the HUAWEI CLOUD service platform over the Internet and allows you to manage devices on the mobile app.

Network for connecting the device to the upper-level video and image management platform → The IVS1800 connects to the IVS3800 platform as an NVR.

Multi-node network → You can manage multiple IVS1800s on the iClient.

Single-node network → The IVS1800 can connect directly to a monitor, using an HDMI cable, to display live or recorded video.

The matching is based on the deployment role of each IVS1800 network type. The cloud service network is the mode used when the IVS1800 connects outward through the Internet to Huawei cloud services for remote device management, so it matches the feature about connection to the HUAWEI CLOUD service platform and mobile-app management. The network for connecting the device to the upper-level video and image management platform is the upstream integration path used when the IVS1800 works under a larger platform such as the IVS3800 , so that feature matches the statement about connecting to the IVS3800 platform as an NVR .

The multi-node network is intended for centralized management of multiple IVS1800 devices, which is why it matches the feature stating that multiple IVS1800s can be managed on the iClient . The single-node network is the standalone deployment model, so it matches the feature where the IVS1800 connects directly to a monitor through HDMI for local live or playback display. This mapping follows the standard Huawei deployment logic of standalone, clustered, upstream-integrated, and cloud-managed operation.

The correct answer is B. FALSE . The statement is internally inconsistent because it says there are nine parts , but then lists more than nine items . More importantly, the construction sequence in the training material is described differently. The document states that civil engineering implementation includes “onsite measurement and routing, site arrangement, foundation pit excavation, lightning protection and grounding, foundation pit bedding, reinforced cage making, foundation template making, concrete casting, concrete maintenance, foundation pit backfilling, handhole making (optional), and trenching and cabling (optional)”

That official sequence does not match the wording in the question exactly. Terms such as construction material entry , ground part connecting , template removal , and muck backfilling are either not stated in the same form or are not presented as part of a fixed nine-step list. From a professional project-delivery viewpoint, foundation construction is indeed a staged civil process, but the exam statement is inaccurate because both the count and the listed procedure names do not align with the material. Therefore, the statement should be judged false.

The correct answer is B because switching the secondary stream type is a stream configuration task, not an image-adjustment operation in the PTZ dome camera web interface. During image adjustment, the operator typically works with live-view and framing tools, such as directional control, local inspection, and capture assistance. That is why operations such as using a virtual joystick to move the PTZ direction, taking snapshots , and performing ePTZ for local image inspection fit naturally into image adjustment behavior.

The broader training content confirms that PTZ control belongs to live-view operation, stating that users can “perform PTZ controls … for example, control the PTZ direction, set PTZ preset positions, and set the home position” . That supports directional adjustment as a valid operation. A snapshot is also a live-view support function, while ePTZ is commonly used for image observation and local enlargement. However, secondary stream type belongs to video stream configuration, such as choosing or modifying stream properties, and is not part of direct image-adjustment handling. Therefore, the option that cannot be performed in image adjustment is B .

The correct answers are B, C, and D . The backup-related domain logic in the material shows that video backup is a structured platform function used to store and manage recordings from another domain or source set. The document states that users can “use the live video and recording backup function to back up recordings of a lower-level domain to MPUs of the local domain, domains of the same level, and upper-level domain” and also refers repeatedly to Video Backup Configuration as the operational process for this function . In practical IVS design, shadow cameras exist precisely to represent cloned source cameras on the backup destination side so backup and playback operations can be performed there.

That is why shadow cameras must be created before the backup function is used, making D correct. Because those cloned objects are used for backup and playback management, B and C are also correct. However, shadow cameras are not primarily created for normal real-time live-view service in the backup domain, so A is not accepted as a correct statement. Their main purpose is backup representation, management visibility, and playback-oriented access rather than ordinary live browsing.

The correct answers are A, C, and D . In IVS3800 architecture, the distinction between management nodes and service nodes is based on whether the node carries the platform’s management container set, especially the CSPOM role. A management node is the server that contains the management component, while a service node is the server that does not contain that management component and instead focuses on service workloads. This is why C and D are correct from the node-role definition perspective.

The cluster nature of the management role is also consistent with the platform design. The training material repeatedly refers to BMU and management addressing in two-node cluster mode , for example: “If the BMU is deployed in two-node cluster mode, enter the external service floating IP address of the BMU” and similarly references external management floating IP handling for clustered upper-level nodes . This reflects that the management layer is designed around clustered high-availability deployment, supporting A . By contrast, B is not accepted because an IVS3800 system made up of only management nodes would lack the service-bearing nodes needed to deliver actual intelligent vision workloads. Therefore, A, C, and D are the correct statements.

The correct answer is A. TRUE . License plate recognition cameras are suitable anywhere vehicles need to be identified, recorded, or controlled, provided that the road geometry and deployment conditions support proper capture. The material explains that “License plate is recognized when vehicle checkpoints capture passing vehicles and built-in algorithms extract license plate features” and further states that common checkpoints are installed on “sites like highways, toll stations and urban roads” to record passing vehicle information and capture full vehicle images . This directly confirms the suitability of highways and urban roads .

By extension, the same technical principle applies to campus driveways , because they are controlled vehicle entry and exit points where access recording, vehicle identity confirmation, and passage management are important. In practice, campus entrances behave similarly to micro-checkpoint scenarios, where the objective is to recognize plates and support vehicle management. As long as the installation angle, lighting, lane width, and capture distance are appropriate, LPR cameras can be deployed effectively in those locations. Therefore, the statement is consistent with the deployment logic of the material, and the answer is true.

The correct answer is D because the iris directly controls the amount of light entering the lens, which has the most immediate effect on image brightness. When the iris opening is enlarged, more light reaches the image sensor, and the captured image becomes brighter. This makes iris adjustment the preferred action when the goal is simply to improve overall brightness. By contrast, resolution affects image detail, not light intake. Angle of view changes scene coverage, not exposure level. Focal length changes magnification and framing, but it does not function as the primary exposure control in this context.

This aligns with the exposure-centered logic emphasized throughout the training material, where Huawei highlights advanced imaging control and notes that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and that traditional exposure methods cannot properly expose different targets in one image . In practical camera operation, brightness problems are first treated as an exposure issue, and among the listed options, the iris is the only parameter that directly regulates exposure by controlling incoming light.
