Free Huawei H12-351_V1.0 Practice Exam with Questions & Answers | Set: 3

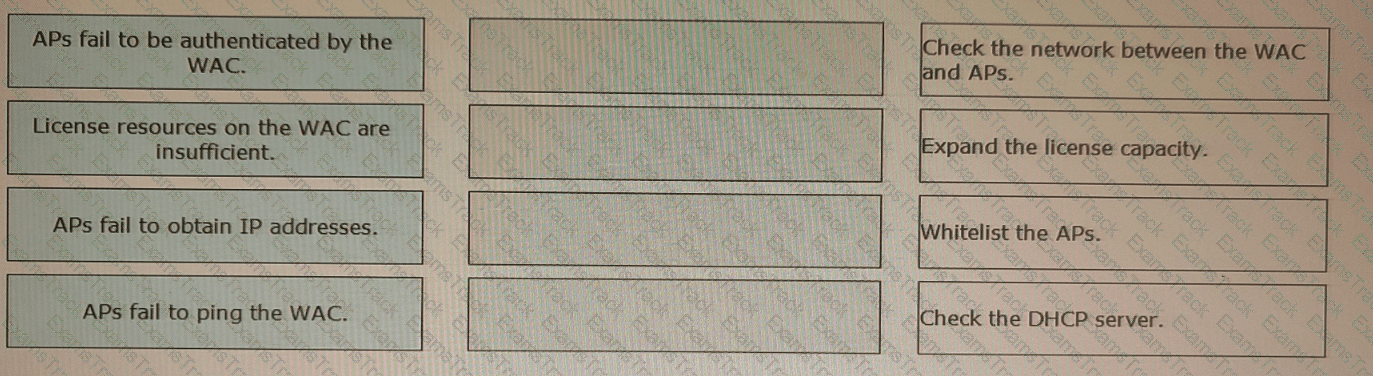

According to the Huawei documents and resources, the troubleshooting operations for the AP onboarding failures are as follows:

APS fail to be authenticated by the WAC: Whitelist the APS. The WAC can authenticate APs based on their MAC addresses or SNs. If an AP is not whitelisted on the WAC, it cannot be authenticated and onboarded.

License resources on the WAC are insufficient: Expand the license capacity. The WAC can manage a limited number of APs based on its license. If the license resources are insufficient, some APs cannot be onboarded.

APS fail to obtain IP addresses: Check the DHCP server. The APs need to obtain IP addresses from a DHCP server before they can communicate with the WAC. If the DHCP server is not configured or reachable, the APs cannot obtain IP addresses and onboard.

APS fail to ping the WAC: Check the network between the WAC and APS. The APs need to ping the WAC to discover its IP address and establish a CAPWAP tunnel. If there is a network problem between the WAC and APs, such as incorrect VLAN configuration or firewall blocking, the APs cannot ping the WAC and onboard.

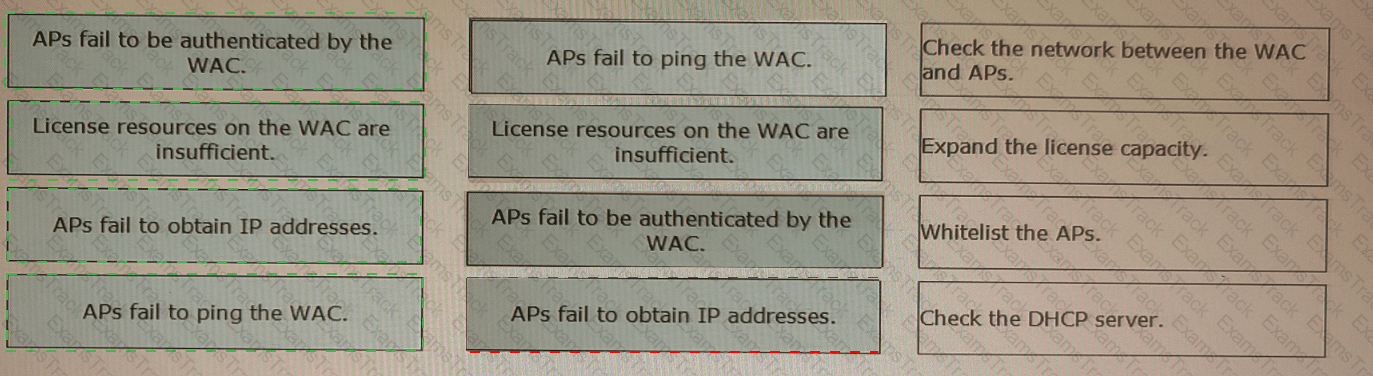

Therefore, APS fail to be authenticated by the WAC - c, License resources on the WAC are insufficient - b, APS fail to obtain IP addresses - d, APS fail to ping the WAC - a is the correct answer. References: : https://support.huawei.com/enterprise/en/doc/EDOC1100158948/9a0d5c37/ap-onboarding-failures

B is false because disabling radio 1 of APs does not affect the Internet connection speed of STAs that use radio 2.

C is false because the license file only affects the number of devices that can be managed by iMaster NCE-CampusInsight, not the data display.

E is false because the UTC time of devices does not need to be consistent with that of iMaster NCE-CampusInsight.

With protocol trace, iMaster NCE-CampusInsight displays protocol-level interaction details at the  AP ,  WAC , and  AC  phases for wireless users.

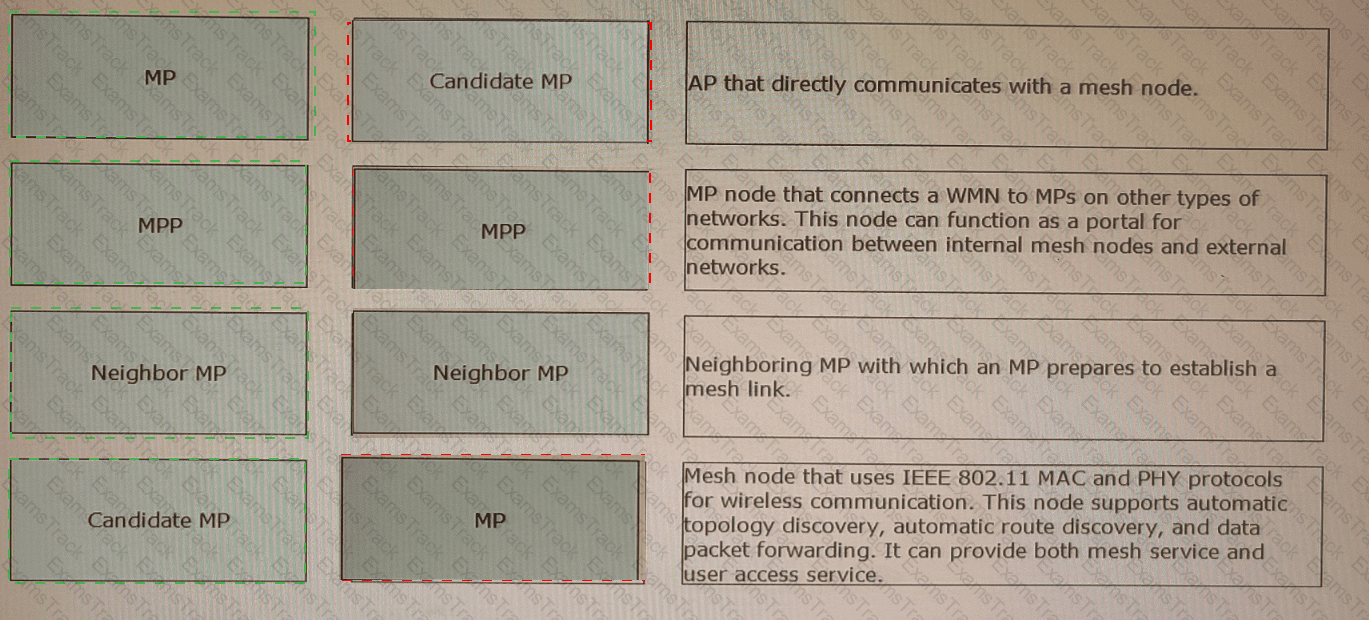

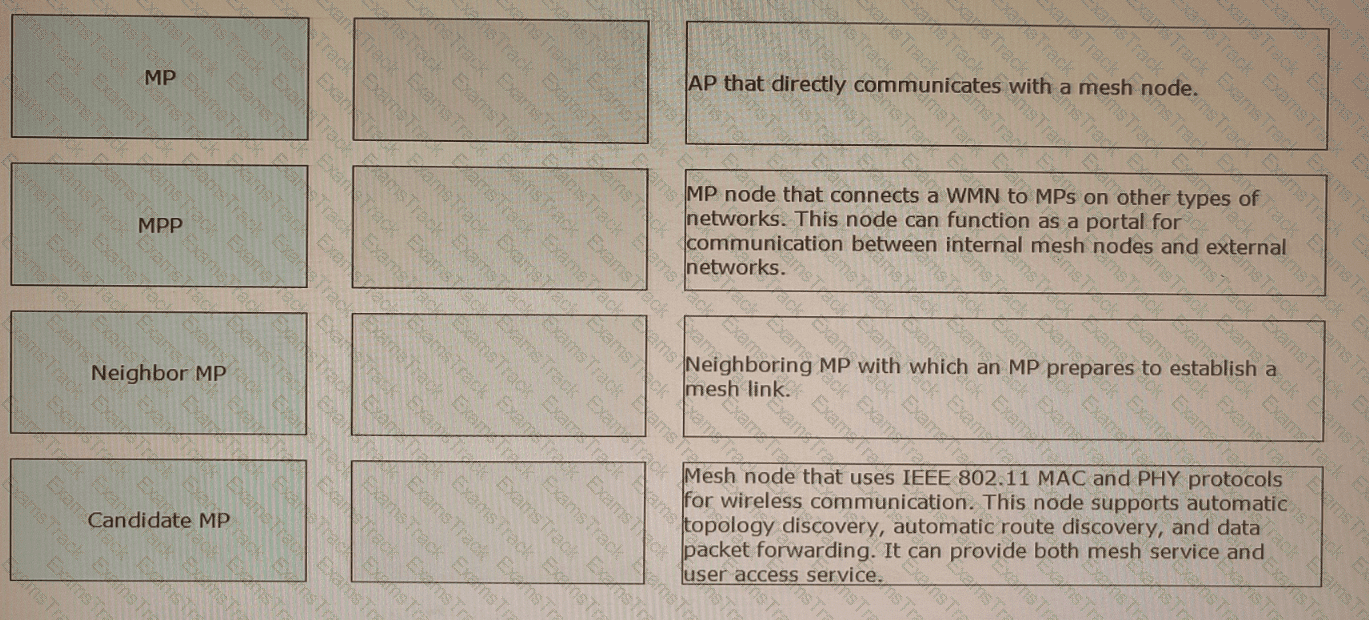

MP: Mesh node that uses IEEE 802.11 MAC and PHY protocols for wireless communication. This node supports automatic topology discovery, automatic route discovery, and data packet forwarding.  It can provide both mesh service and user access service 1 .

MPP: MP node that connects a WMN to MPs on other types of networks.  This node can function as a portal for communication between internal mesh nodes and external networks 1 .

Neighbor MP: Neighboring MP with which an MP prepares to establish a mesh link 1 .

Candidate MP: AP that directly communicates with a mesh node 2 .

https://support.huawei.com/enterprise/en/doc/EDOC1100064365/90f2391e/configuration-examples-for-mesh  2 : https://support.huawei.com/enterprise/en/doc/EDOC1100169459/8d79210e/configuring-wireless-mesh-networking

 In a multicast solution, there must be reachable unicast routes between multicast sources and receivers, because multicast routing protocols use unicast routing information to build multicast forwarding trees.
