Free HP HPE7-J01 Practice Exam with Questions & Answers | Set: 2

The HPE Peer Motion Utility (PMU) and its integrated counterpart in HPE GreenLake and SSMC are designed for the non-disruptive migration of data between storage systems, such as from an HPE 3PAR to an HPE Alletra 9000 or Primera. A core requirement for the "Online" (non-disruptive) version of this migration is that the storage fabric must support and have N-Port ID Virtualization (NPIV) enabled.

Architecturally, Peer Motion relies on the destination array's ability to "masquerade" as the source array during the transition. When a volume is migrated, the destination array creates virtual ports using NPIV to inherit the identity (WWNs) of the source array's ports. This allows the host's multipathing software to see the new storage paths as if they were additional paths to the original volume, enabling a seamless transition without a server reboot or I/O interruption. According to the HPE Peer Motion Utility User Guide, if the SAN fabric (the switches) does not support NPIV or if NPIV is disabled on the specific ports, the migration utility will default to a Minimally Disruptive Migration (MDM) or an offline migration, both of which involve host-side downtime.

Furthermore, the fabric must be zoned such that the source and destination arrays can "see" each other to establish the Peer Motion relationship and handle the data orchestration. Option B is incorrect because while the management station (running the PMU) requires IP connectivity to send commands, the actual data movement and host-transparent pathing are strictly dependent on the FC fabric's NPIV capability. Option C is incorrect as fabric connections (via switches) are required; direct point-to-point connections between array FC ports are typically not supported for Peer Motion federations.

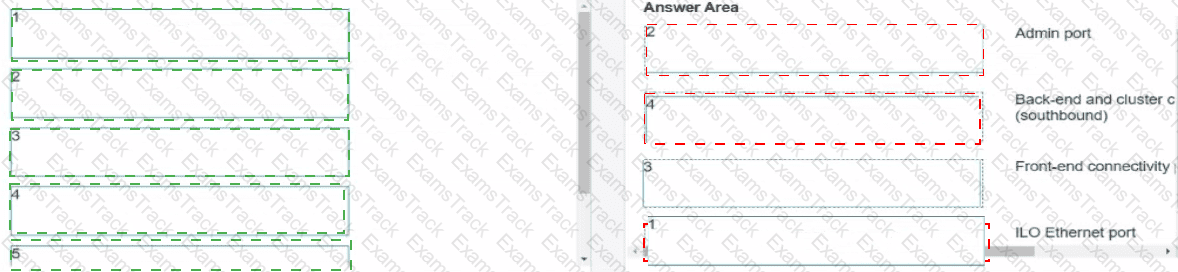

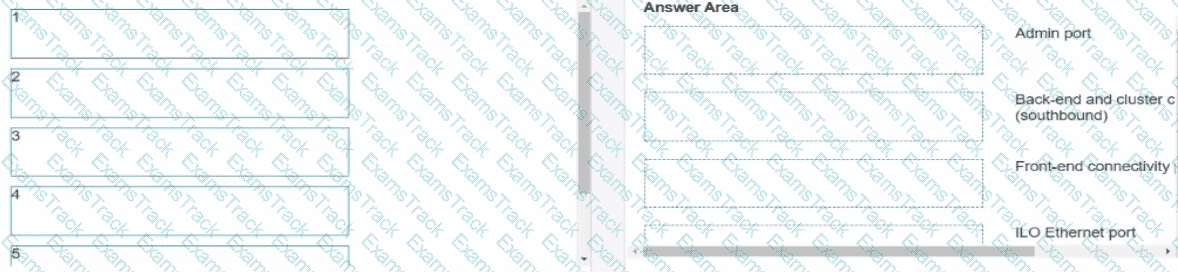

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

When designing an HPE Morpheus environment for an enterprise-scale workload (such as 1,000+ VMs), a standalone "all-in-one" installation is insufficient for high availability (HA) and performance requirements. Instead, a 3-node Distributed Architecture must be implemented to ensure redundancy across all critical service layers.

In a distributed, redundant Morpheus setup, the architecture is broken down into three primary tiers: the Application tier, the Database tier (MySQL/Percona), and the Messaging/Search tier (Elasticsearch and RabbitMQ). To achieve a basic redundant footprint, you require at least two Morpheus application nodes, three database nodes (for quorum), and a messaging cluster. According to the HPE Morpheus Architecture and Sizing Guide, a standard HA deployment starts with a minimum of six VMs to separate these functions. However, for a production environment of this size, it is recommended to have a minimum of 10 VMs. This expanded footprint typically includes 3 App nodes, 3 Database nodes, and a 3-node cluster for Elasticsearch/RabbitMQ, plus a dedicated load balancer or management node, ensuring that the loss of any single host does not impact the management plane's availability.

Option C is incorrect because a distributed installation is significantly more complex than the "all-in-one" appliance approach and requires manual configuration of externalized services. Option B is slightly inaccurate because while RabbitMQ itself is required, a dedicated "RabbitMQ load balancer" is often handled by the primary application load balancer (like an F5 or NetScaler) rather than being a specific required installation component. Option D is incorrect as upgrades in a distributed environment involve a coordinated, multi-step process across all nodes, which typically requires a scheduled maintenance window rather than "minimal" downtime.

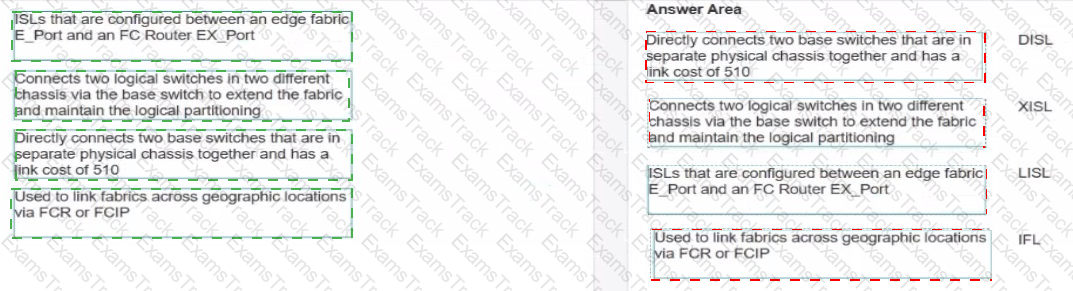

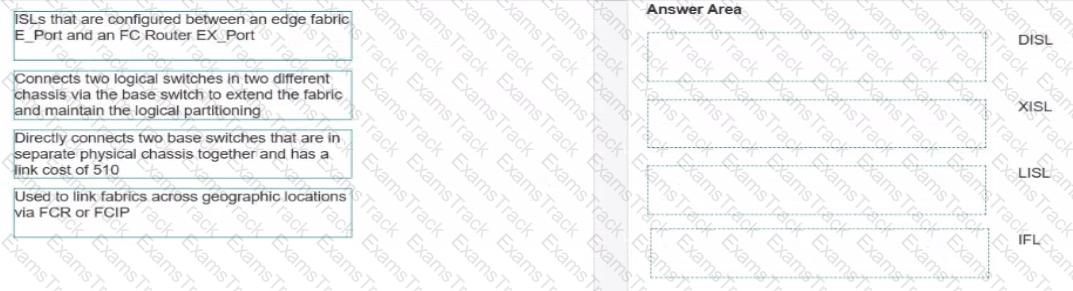

LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

The HPE Timeless Program is a strategic lifecycle management offering designed to future-proof customer investments in the HPE Alletra Storage MP platform (specifically the B10000 for Block). The program provides benefits such as a non-disruptive controller refresh at no additional cost after three or more years, all-inclusive software licensing, and a 100% data availability guarantee.

To qualify for the HPE Timeless Program, the storage configuration must meet specific minimum hardware requirements to ensure it can support future generations of controller technology without a "forklift" upgrade. According to the HPE Master ASE Advanced Storage Architect training materials and program guidelines, the entry-level qualification for the Timeless benefit on Alletra MP requires the system to be configured with at least 16-core controller nodes (CNodes) and a minimum capacity threshold of 42TB RAW storage.

While the Alletra MP architecture supports 8-core, 16-core, and 32-core nodes, the 8-core "entry" models are often excluded from certain enterprise-level refresh programs because they may not provide sufficient overhead for the performance requirements of next-generation operating systems. Option C (32 cores and 92TB) represents a higher-tier mission-critical configuration but is not the minimum required for program eligibility. Option A is incorrect as the Alletra MP supports both switchless (2-node) and switched (multi-node) configurations, with switchless systems also being eligible. Option B is incorrect as the program is built into the support contract and purchase price rather than requiring a separate refundable "reservation fee".

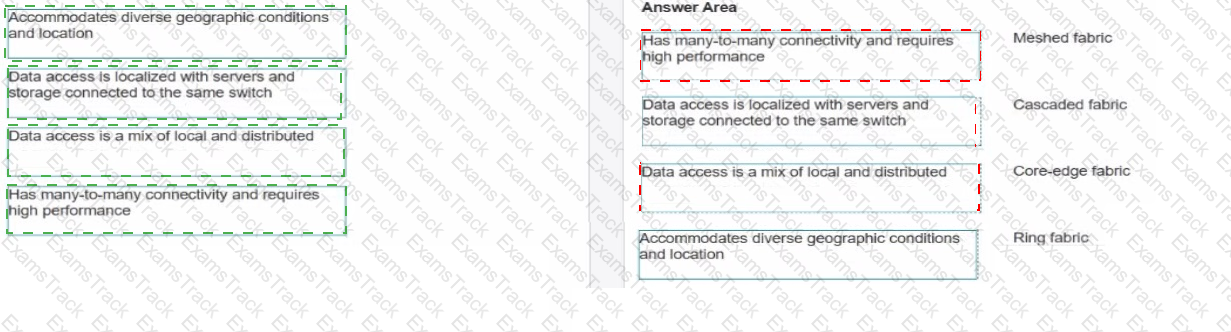

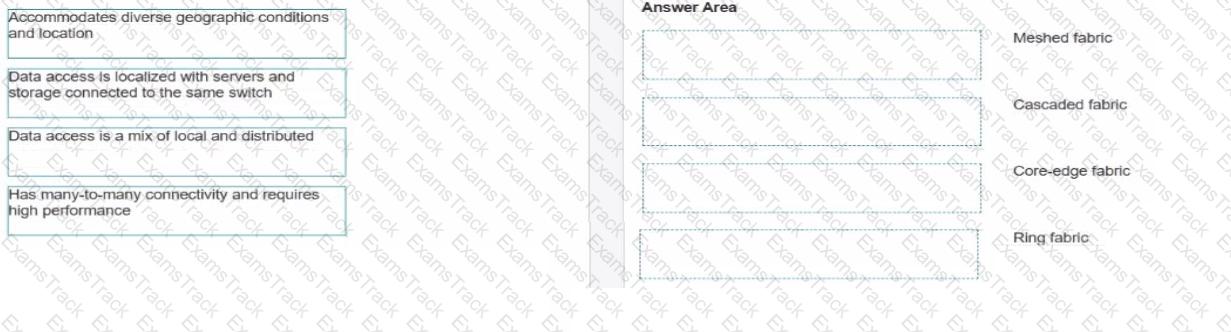

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

When sizing a migration from a highly efficient array like the HPE Alletra 9000 (or Primera) to the next-generation HPE Alletra MP B10000, storage architects must account for the difference between the "Written Capacity" (what the host thinks it has stored) and the "Consumed Capacity" (the physical space used after data reduction).

The standard best practice for an HPE Master ASE when performing these migrations is to Size to consumption multiplied by 1.25. This "1.25 factor" (representing a 25% overhead) is the recommended safety margin used in sizing tools like HPE NinjaStars and the HPE Cloud Physics assessment reports.

This 25% buffer is designed to cover several critical architectural requirements:

System Metadata and Overhead: Both the Alletra 9000 and Alletra MP require physical capacity to store internal metadata, map tables, and the structures required for their respective data reduction engines.

Snapshot Reserve: While snapshots are thin and pointer-based, they still consume physical space as data changes over time. The 1.25 multiplier ensures there is enough "headroom" for typical snapshot retention policies.

Data Reduction Parity: Data reduction ratios (deduplication and compression) can fluctuate based on the specific workload. Sizing exactly to current consumption without a buffer risks an out-of-space condition if the new array's reduction engine handles a specific block pattern slightly differently during the initial ingest.

Operational Performance: SSD-based arrays perform best when they are not "packed" to 100% capacity, as the garbage collection and wear-leveling processes require free blocks to operate efficiently.

Sizing to "original capacity" (Option D) would lead to a massive over-provisioning and wasted cost, as it ignores the benefits of modern data reduction. Option C (1.5) is generally considered overly conservative for modern flash environments, while 1.25 provides the optimal balance of cost-efficiency and technical risk mitigation.

HPE Morpheus Enterprise provides extensive native monitoring for provisioned resources, but for deep, full-stack observability into applications, databases, and third-party services via a specialized SaaS-based analytics platform, it integrates with external providers through plugins.

The Datadog Integration Plugin is a primary example of this capability. Datadog is an industry-leading SaaS data analytics platform that monitors performance across every layer of the stack—from infrastructure metrics to application traces and logs. By installing the Datadog plugin in Morpheus, the administrator bridges the gap between the orchestration engine (Morpheus) and the observability platform (Datadog). This plugin adds a contextual "Datadog" tab to instances within the Morpheus UI, pulling real-time performance telemetry directly from the SaaS backend into the Morpheus management pane. This allows the administrator to view workload health and deep-dive analytics without switching consoles.

While HPE OpsRamp (Option C) is part of the broader HPE CloudOps Software suite and provides similar observability features, it is often treated as a separate, complementary software component rather than a specific "SaaS plugin" used within the core Morpheus instance-level analytics in the same context as Datadog's marketplace integration. The Morpheus Agent (Option A) is a local software component used for guest-level automation and basic health checks, not a SaaS analytics platform. By choosing Datadog, the administrator leverages a purpose-built SaaS solution to gain the "monitoring of applications, servers, and databases" required by the prompt through a pre-validated community or enterprise plugin.
