Free Citrix 1Y0-205 Practice Exam with Questions & Answers | Set: 6

According to the Citrix documentation, Citrix Director supports exporting reports in the following formats: PDF, XLS, and CSV. DOC and TXT are not supported. See Export reports and SCOM alerts for more details.

 According to the Citrix documentation1, the correct syntax for adding a simple ACL rule is:

add simpleacl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

The correct syntax for adding an extended ACL rule is:

add ns acl < aclname > < ALLOW | DENY > -srcIP < IPAddress > [-destIP < IPAddress > ] [-TTL < timeInSeconds > ]

Therefore, the correct answer is B, because it uses the extended ACL rule format and specifies the destination IP address of the load balancing virtual server (192.168.100.25) and the TTL value of 10 minutes (600 seconds).

1: https://docs.citrix.com/en-us/citrix-adc/13/networking/acl.html

According to the Citrix documentation1, the Citrix ADC SDX appliance allows administrators to upgrade the Citrix ADC instances on an individual basis, without affecting the other instances or the SDX appliance. This allows the instances to run different firmware versions and provides flexibility and convenience for the administrator.

 According to the Citrix documentation, automatic HA synchronization will fail if the primary and secondary Citrix ADCs have different build versions. The build versions must be the same for the configuration to be synchronized. A manual synchronization, a configuration change to the primary Citrix ADC, or a force failover will not affect the automatic HA synchronization1

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - High Availability

According to the HDX Insight documentation, HDX Insight is the integration of NetScaler Network Inspector and Performance Manager with Director. It captures data about ICA traffic and provides a dashboard view of real time and historical details. To monitor NetScaler appliances deployed in this mode, first add the NetScaler appliance to the NetScaler Application Delivery Management (ADM) inventory, enable AppFlow, and then view the reports on the dashboard. External users who access Citrix Virtual App and Desktop applications must authenticate themselves on the NetScaler Gateway. Therefore, the three components that the administrator will need to review are:

Citrix Application Delivery Management: This is the platform that collects and analyzes the AppFlow records generated by the NetScaler appliance.

Citrix Gateway: This is the component that provides secure access to the Citrix Virtual App and Desktop applications and generates the AppFlow records for HDX Insight.

Citrix Director: This is the web-based tool that displays the HDX Insight reports and allows the administrator to troubleshoot performance issues.

 The minimum built-in delegated administration role required to create an Application Group is the Delivery Group Administrator. This role has the necessary permissions to manage application groups within a delivery group1.

https://docs.citrix.com/en-us/tech-zone/design/reference-architectures/image-management.html#:~:text=Differencing%20Disk%3A%20A%20unique%20Difference,the%20base%20VM%20as%20required.

 According to the screenshot, the CS policy CS1_Pol has a rule that matches the HTTP request http://xenapp.training.lab/url1, since it contains “/url1/” in the URI path. This policy is bound to the CS vServer CS_LB_HTTP with a priority of 100, which means it has a higher precedence than the CS policy CS2_Pol, which has a priority of 110. Therefore, the request will be redirected to the target LB vServer specified by CS1_Pol, which is LB_vserver1

The absence of a power-manage option during the creation of a new machine catalog in Citrix Virtual Apps and Desktops is typically due to the lack of a defined resource connection in Citrix Studio2.

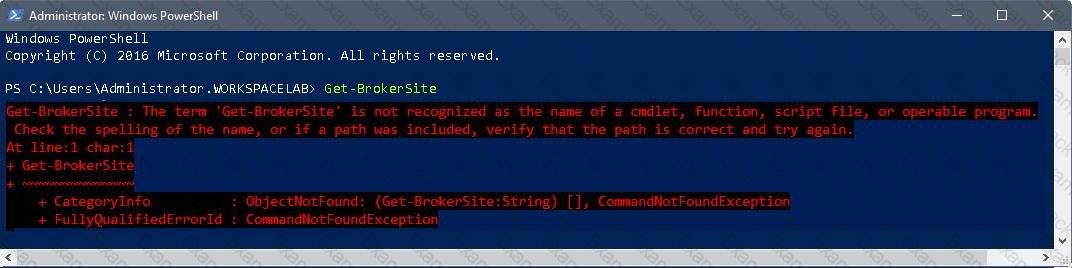

The administrator received this error because they did not run the Add-PSSnapin Citrix* command before running the Get-BrokerSite PowerShell command. This is required to load the Citrix PowerShell snap-ins.
